Occupant Classification System

OCCUPANT CLASSIFICATION SYSTEM




System Diagram




System Description

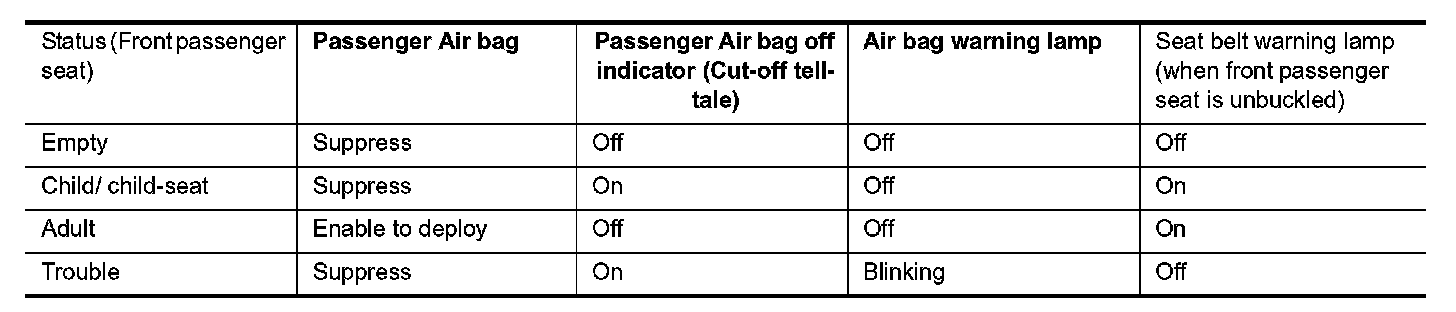

This Occupant Classification System has the following function.
1. Suppress the deployment of passenger air bag when passenger seat is empty, or when occupied by child and child-seat. Turn on passenger air bag off indicator (cut-off telltale) when passenger seat is occupied by child-seat and child. {Occupant Classification System (OCS).}]
2. Indicate malfunction portion with blinking times of air bag warning lamp in diagnosis mode.
3. Indicate the malfunctioning record by CONSULT-III.

NOTE: Operation of ACU when ACU receives information from Occupant Classification System (OCS)




Component Description

Component Parts
- OCS control unit, Seat sensor mat. Refer to SRC-34, "Description". B1022
- Passenger air bag OFF indicator (cut-off telltale). Refer to SRC-37, "Description". B1023
