Child Restraint: Service and Repair

LATCH SYSTEM FOR CHILDREN

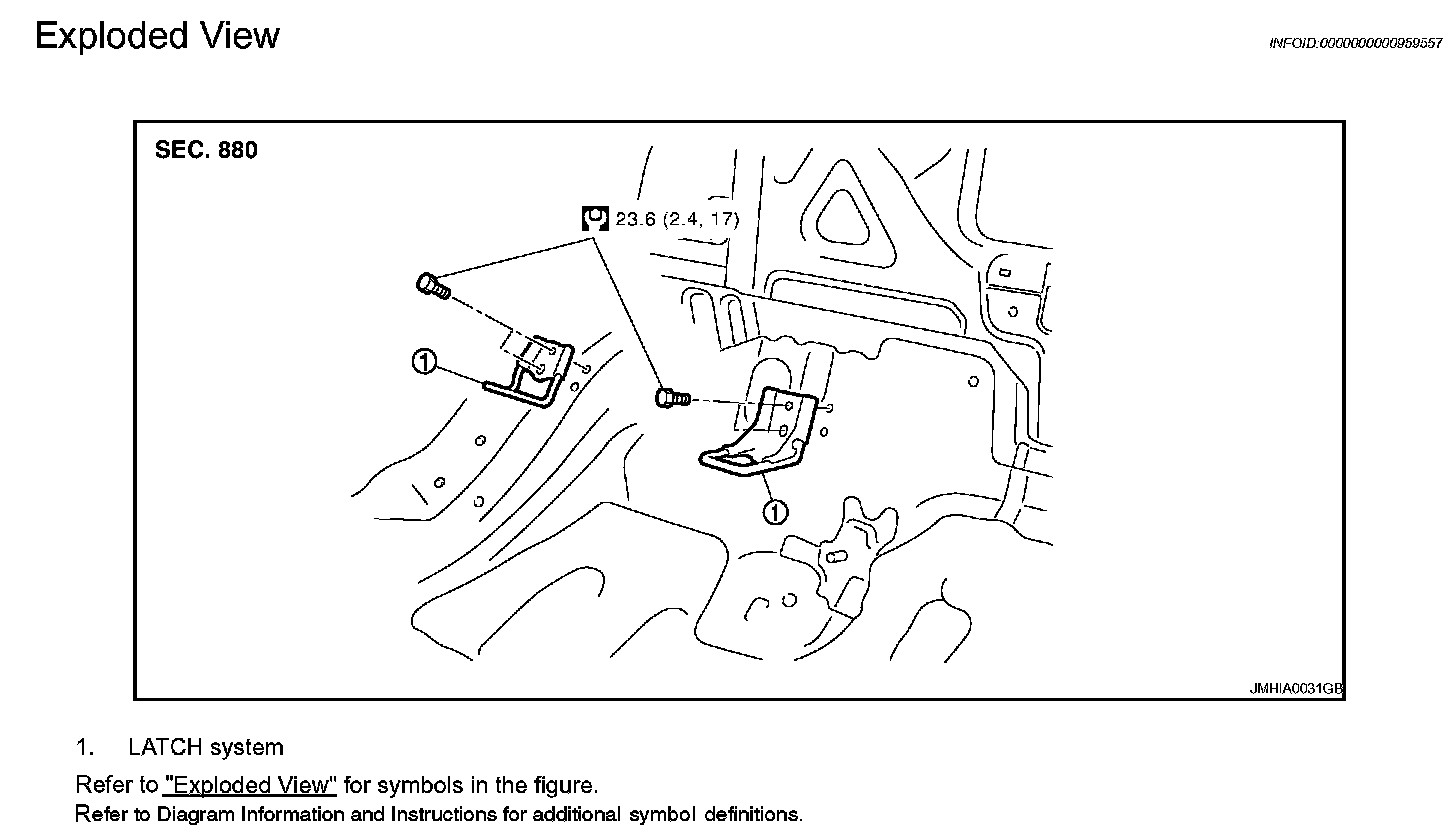

Exploded View SB-13:

Exploded View

Removal and Installation

REMOVAL

CAUTION: Replace anchor bolts if they are deformed or worn out.

1. Remove the rear seat cushion.
2. Remove LATCH (Lower Anchor and Tether for Children) system.

INSTALLATION
Install in the reverse order of removal.
