Fluid Pan, A/T

Transmission Pan

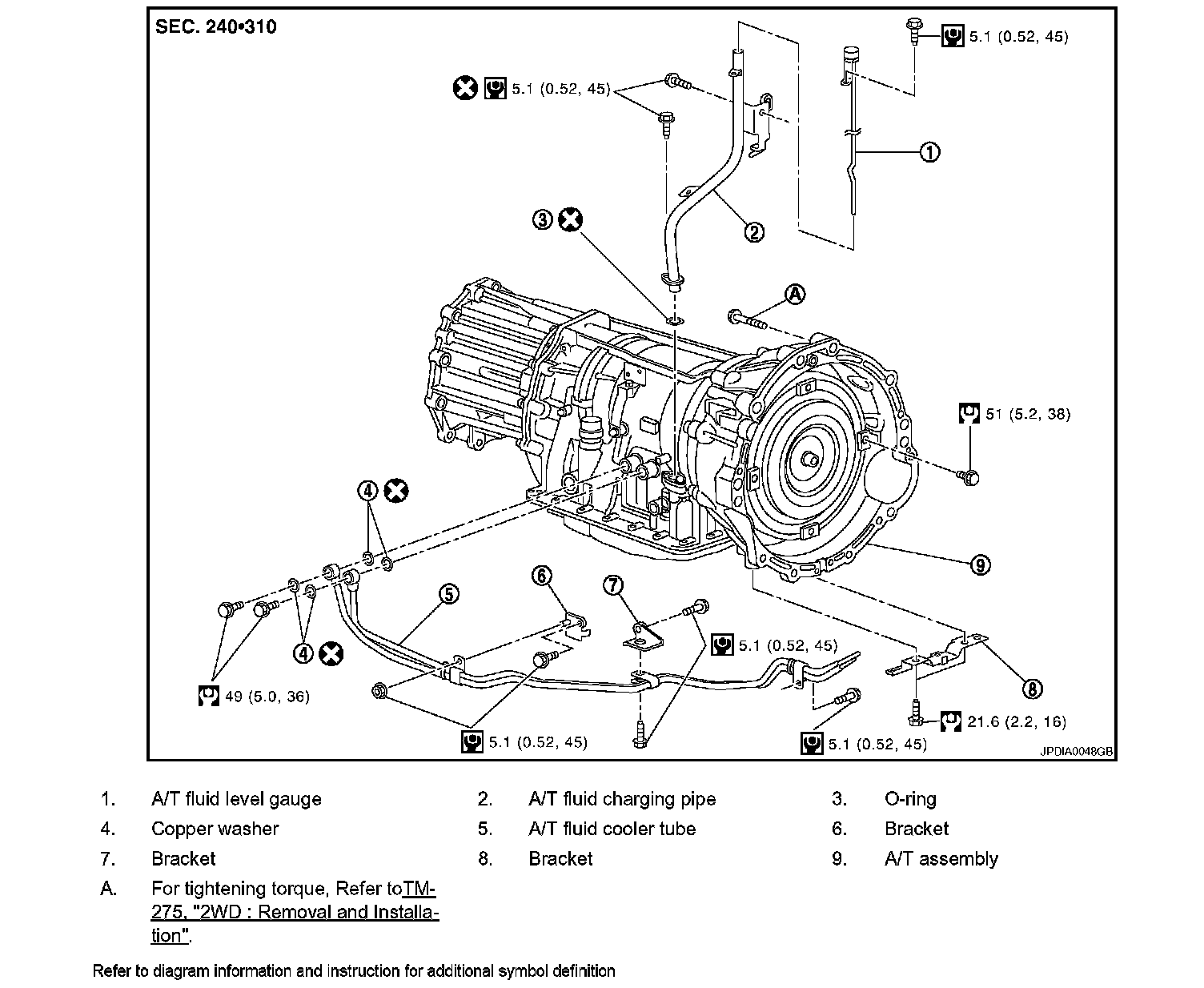

Exploded View TM-275:

Exploded View TM-278:

Exploded View TM-284 (Part 1):

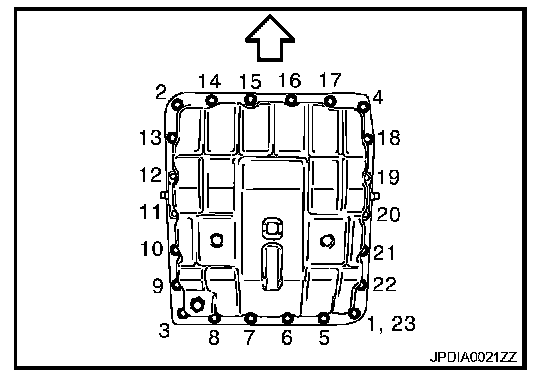

17. Tighten oil pan mounting bolts to the specified torque in numerical order shown in the figure after temporarily tightening them. Tighten oil pan mounting bolts to the specified torque.
<=: Vehicle front

CAUTION: Do not reuse oil pan mounting bolts.

18. Install drain plug to oil pan. Tighten drain plug to the specified torque.

CAUTION: Do not reuse drain plug gasket.
