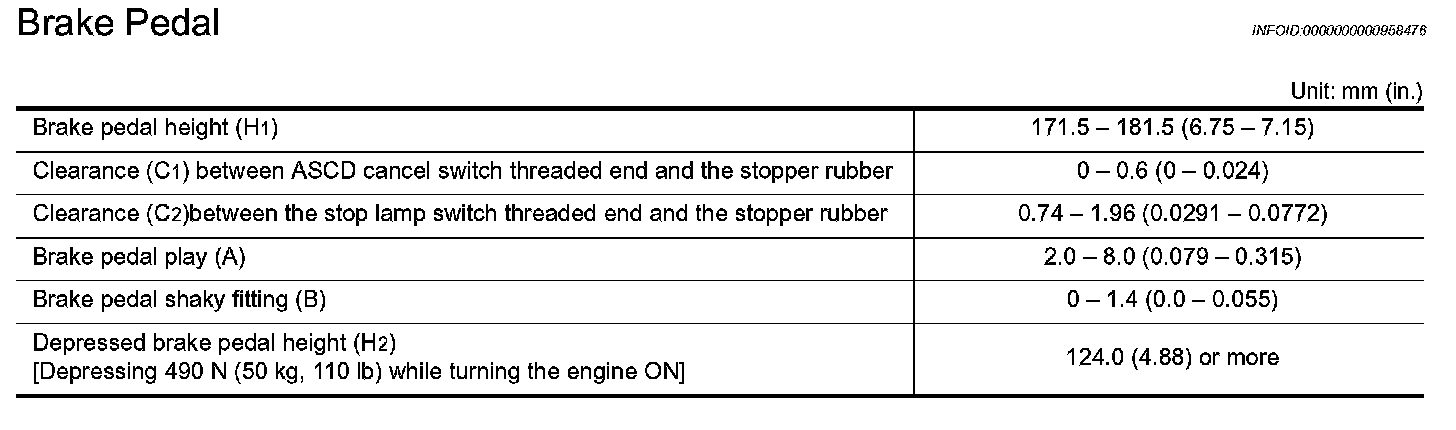

Brake Pedal Assy

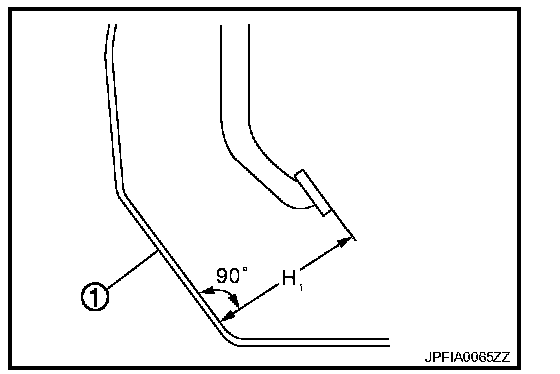

Brake Pedal Height

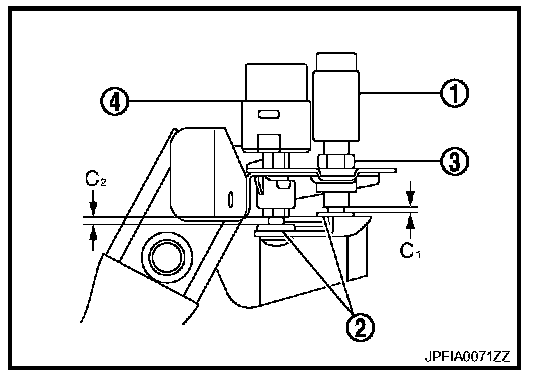

ASCD Cancel Switch and Stop Lamp Switch









Brake Pedal Play

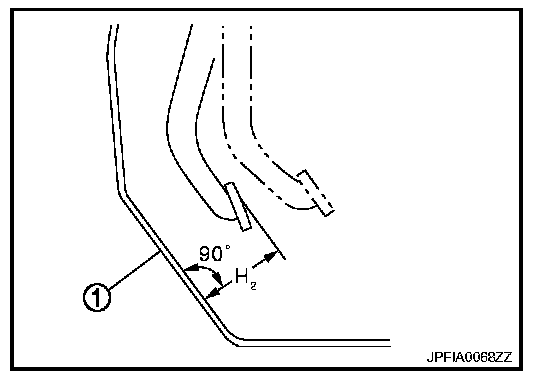

Depressed Brake Pedal Height








Brake Pedal Shaky Fitting
