CONSULT-III Checking System

CONSULT-III CHECKING SYSTEM




Description
- When CONSULT-III is connected with a data link connector (A) equipped on the vehicle side, it will communicate with the control unit equipped in the vehicle and then enable various kinds of diagnostic tests.

1: Instrument driver lower panel

- Refer to "CONSULT-III Software Operation Manual" for more information.







Function and System Application




CONSULT-III Data Link Connector (DLC) Circuit

NOTE: The DDL1 and DDL2 circuits from DLC pins 12, 13, 14 and 15 may be connected to more than one system. A short in a DDL circuit connected to a control unit in one system may affect CONSULT-III access to other systems.

Wiring Diagram - CONSULT-III Checking System (Part 1):

Wiring Diagram - CONSULT-III Checking System (Part 2):

Wiring Diagram - CONSULT-III Checking System (Part 3):

Wiring Diagram - CONSULT-III Checking System (Part 4):

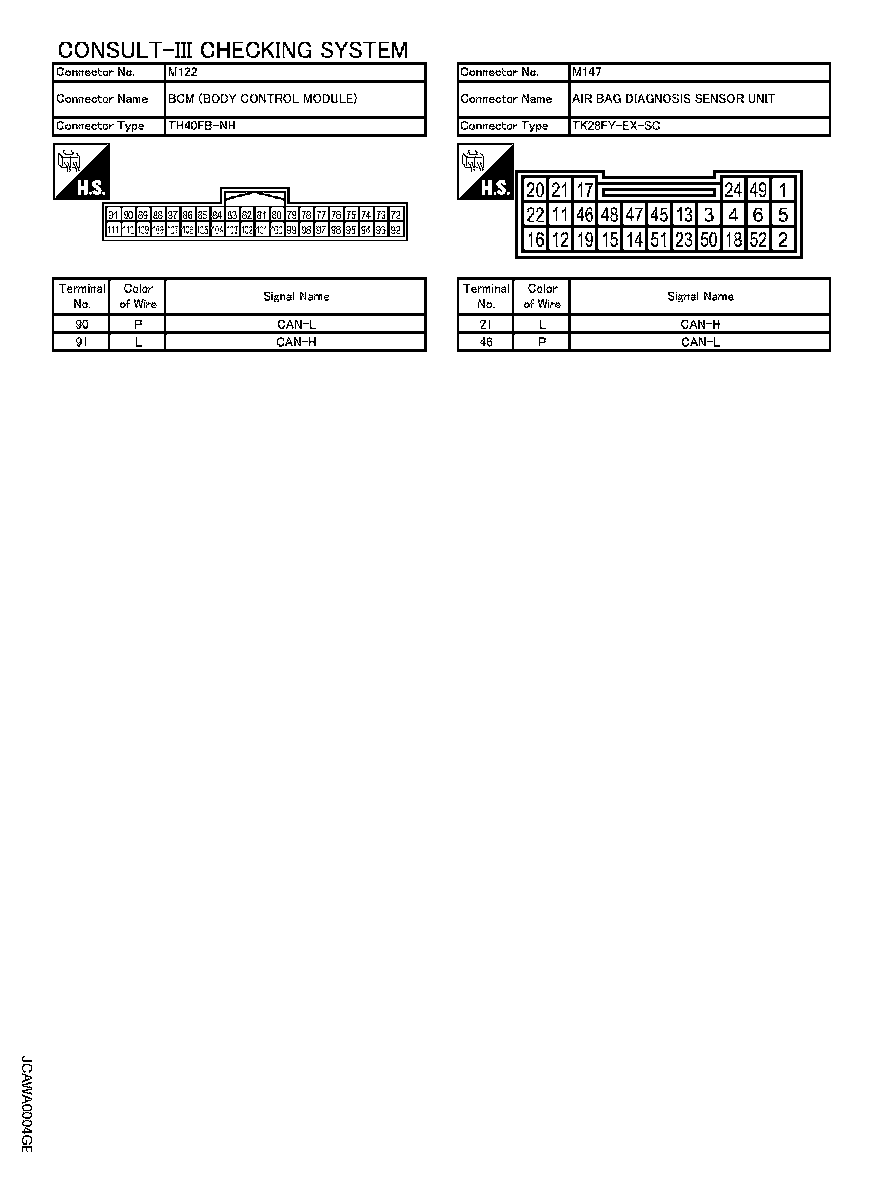

Wiring Diagram - CONSULT-III CHECKING SYSTEM -
