Exploded Views
TRANSMISSION ASSEMBLYExploded View

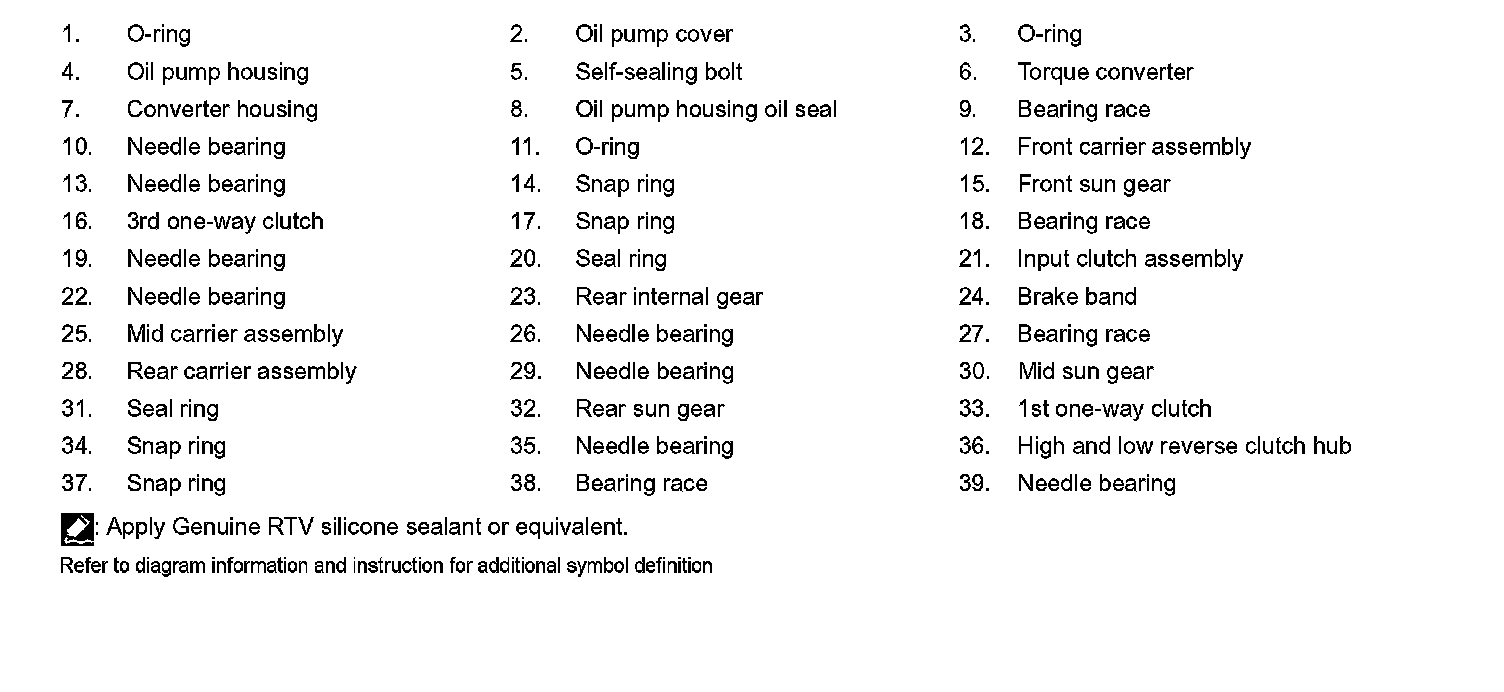

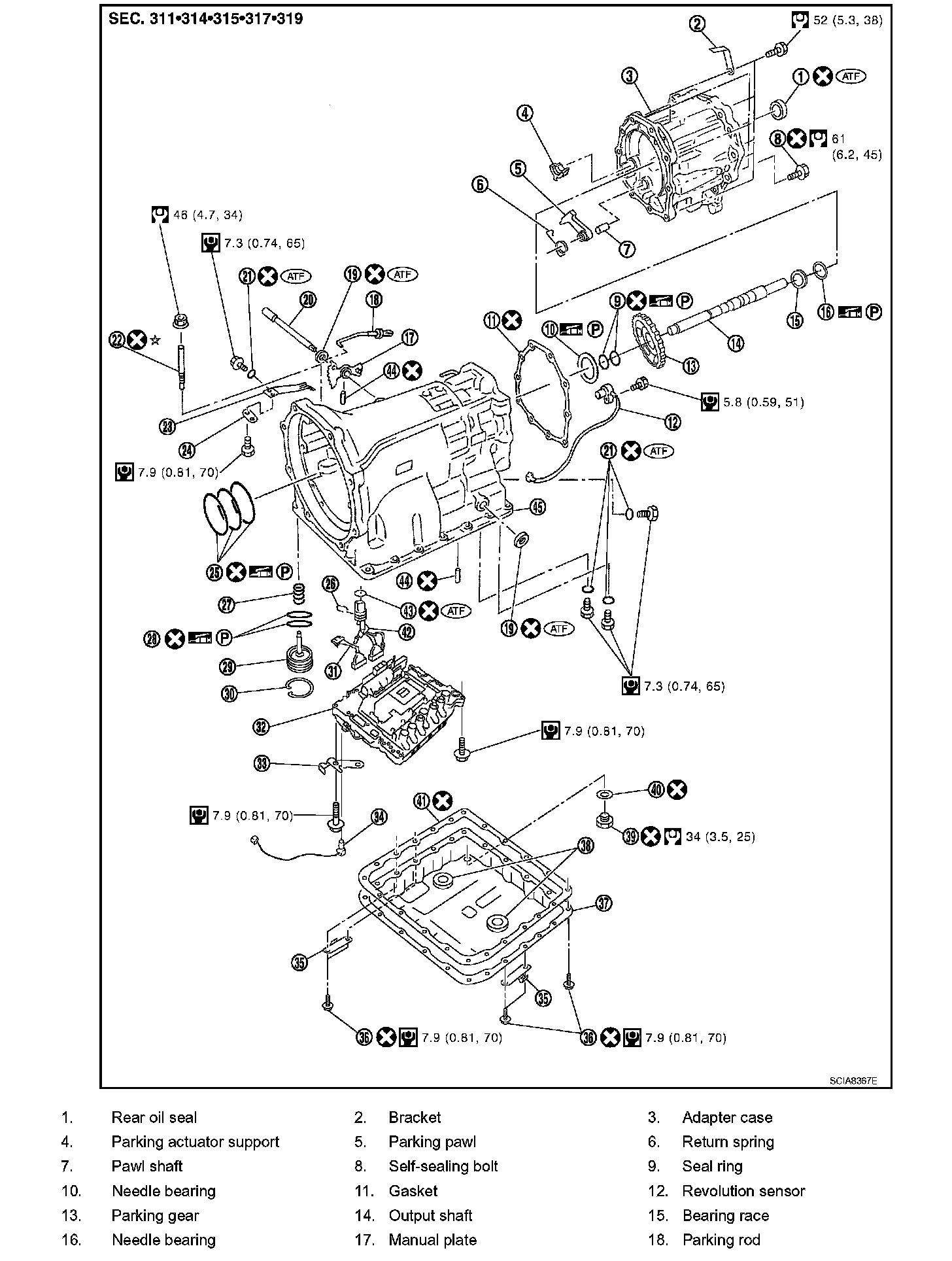

Exploded View TM-281 (Part 1):

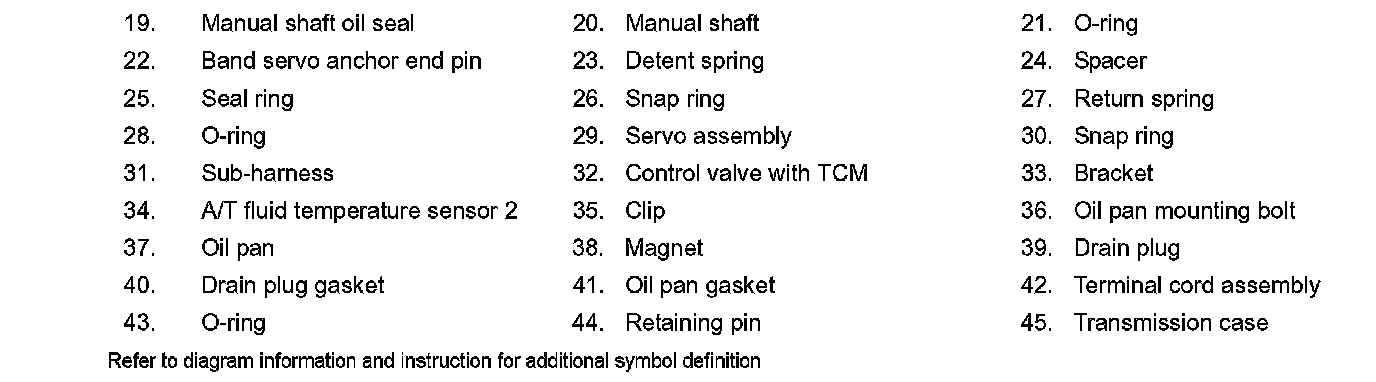

Exploded View TM-281 (Part 2):
Exploded View TM-283 (Part 1):
Exploded View TM-283 (Part 2):
2WD
Exploded View TM-284 (Part 1):
Exploded View TM-284 (Part 2):
AWD
Exploded View TM-286 (Part 1):
