Front Axle

NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTING

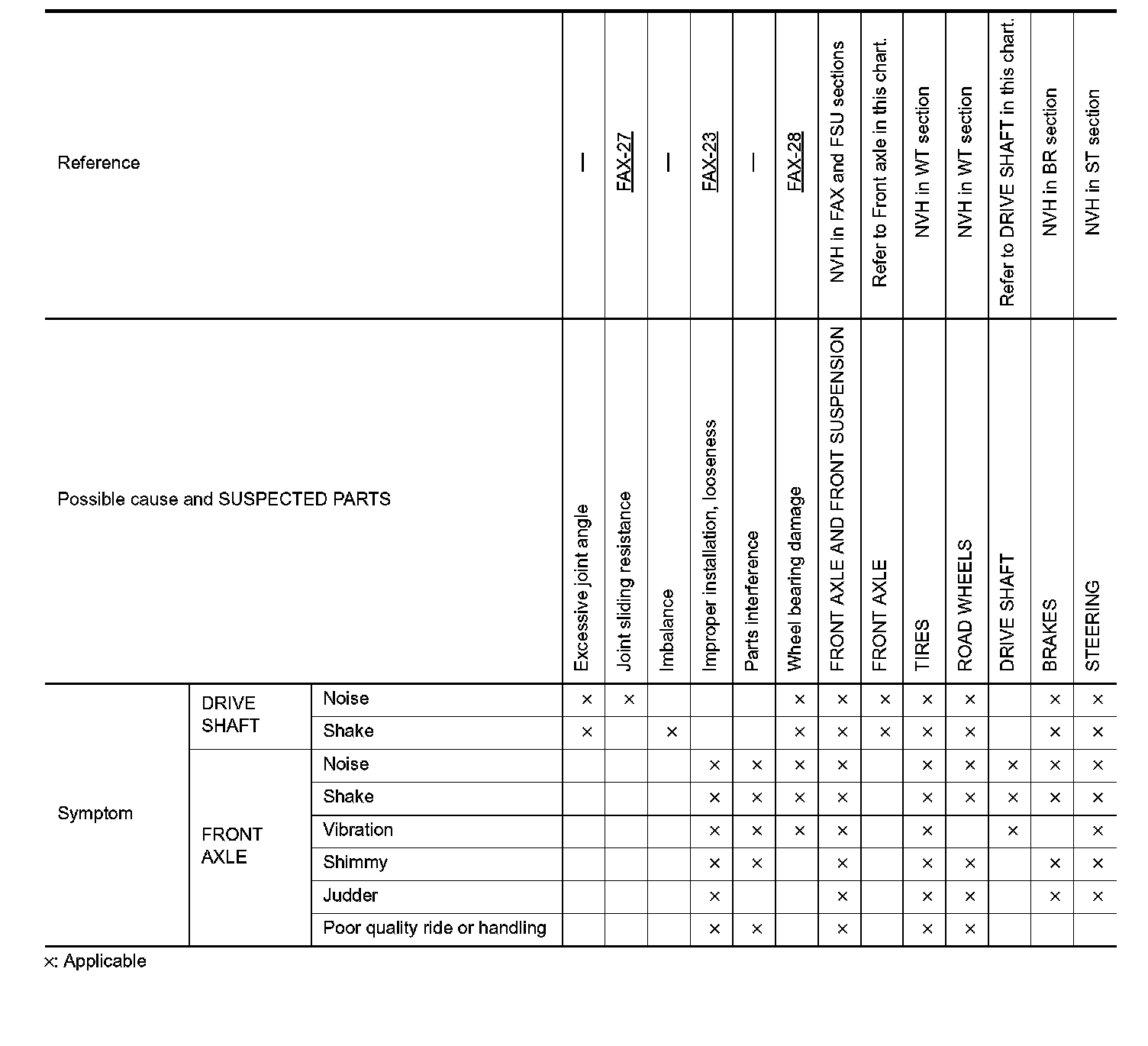

NVH Troubleshooting Chart
Use chart to help you find the cause of the symptom. If necessary, repair or replace these parts.
