Manual Transmission/Transaxle: Description and Operation
FUNCTION DIAGNOSISM/T SYSTEM
System Diagram

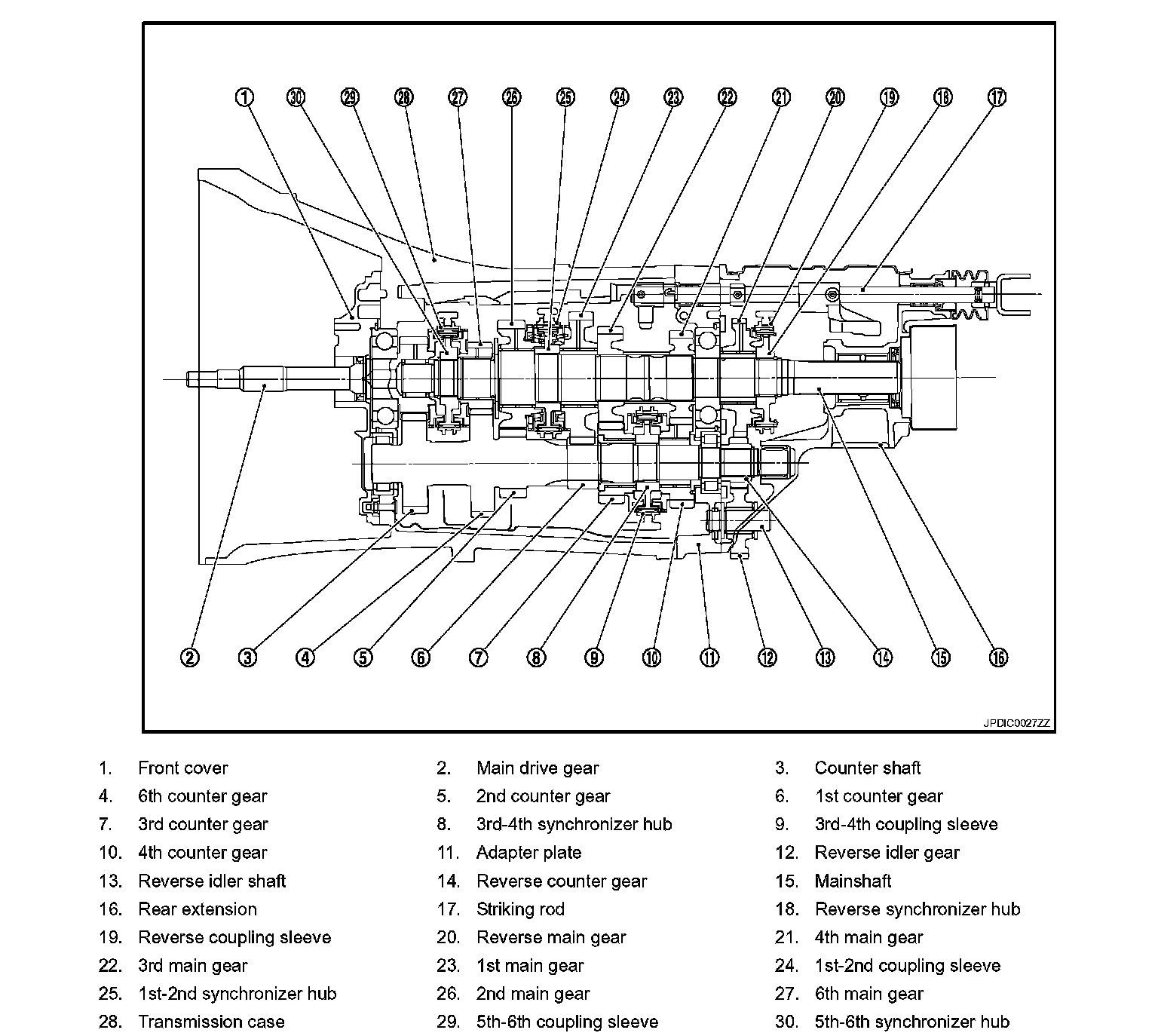

CROSS-SECTIONAL VIEW
System Description

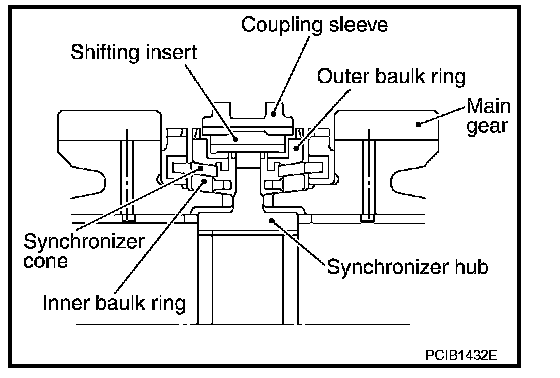

DOUBLE-CONE SYNCHRONIZER
The 4th gear is equipped with a double-cone synchronizer to reduce the operating force of the control lever.
TRIPLE-CONE SYNCHRONIZER
The 1st, 2nd and 3rd gears are equipped with a triple-cone synchronizer to reduce the operating force of the control lever.
