Pinout Values and Diagnostic Parameters
AWD CONTROL UNITReference Value

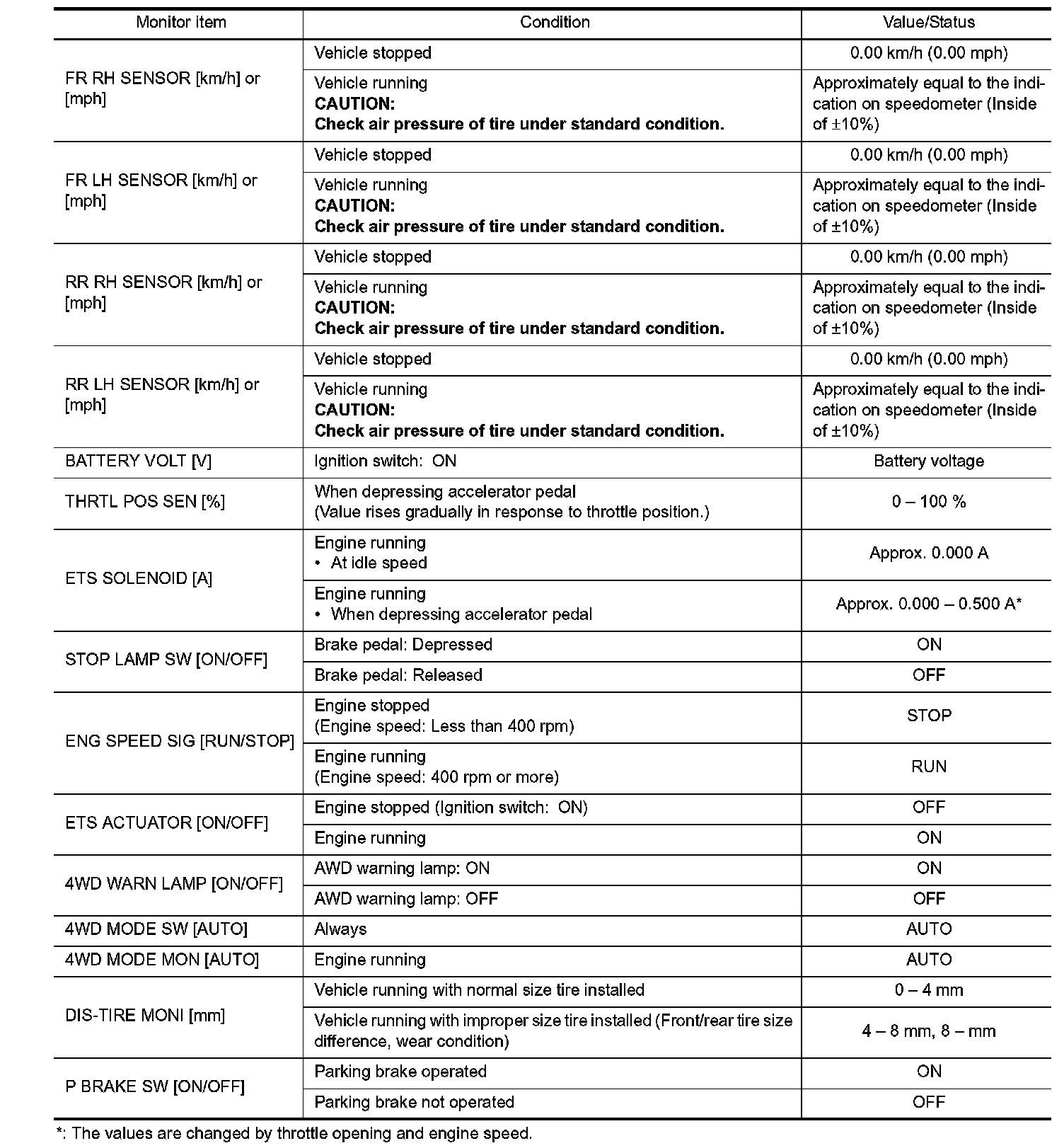

VALUES ON THE DIAGNOSIS TOOL
TERMINAL LAYOUT
PHYSICAL VALUES
CAUTION: When using circuit tester to measure voltage for inspection, be sure not to extend forcibly any connector terminals.
