Electrical Diagrams

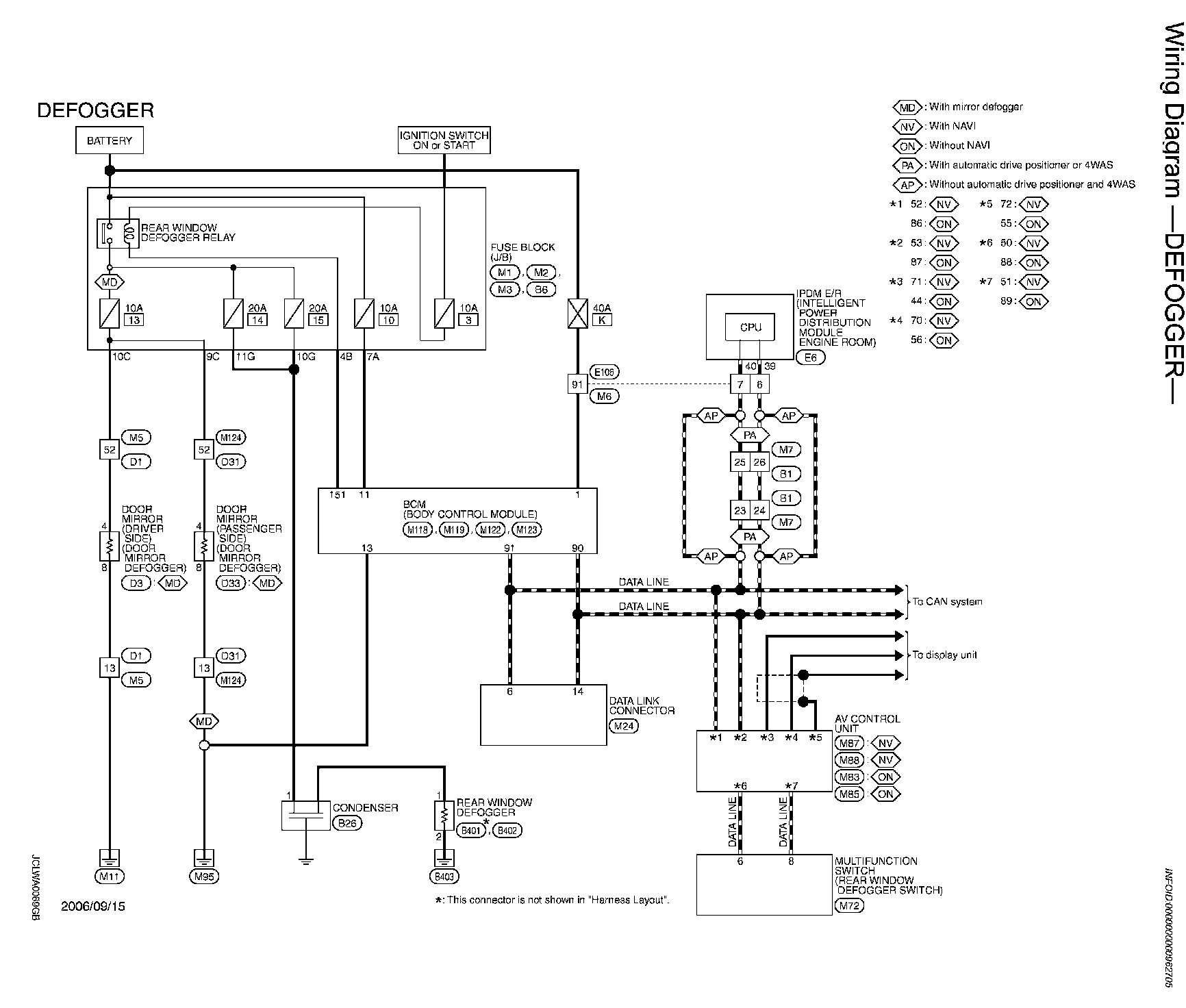

Wiring Diagram - Defogger (Part 1):

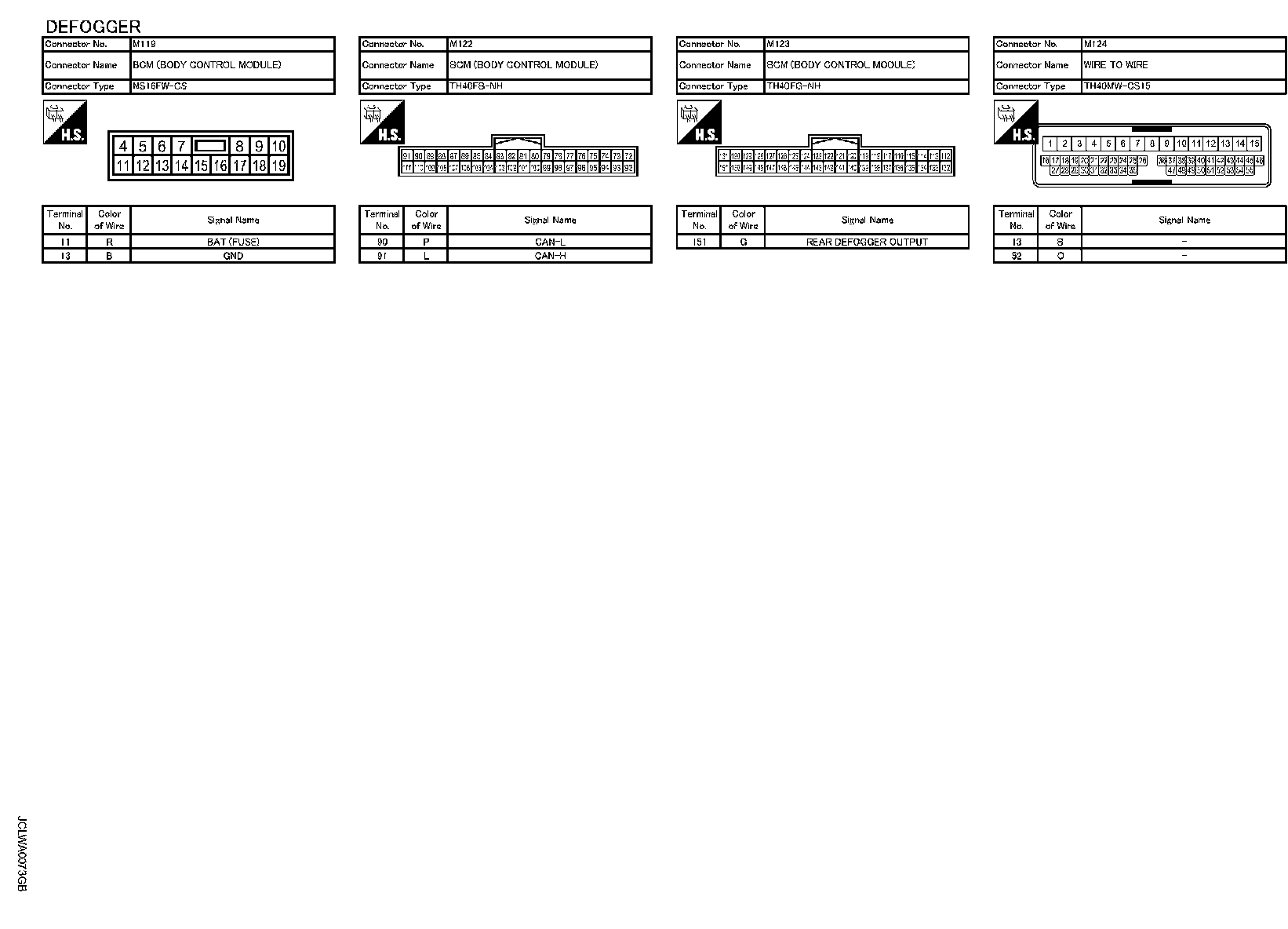

Wiring Diagram - Defogger (Part 2):

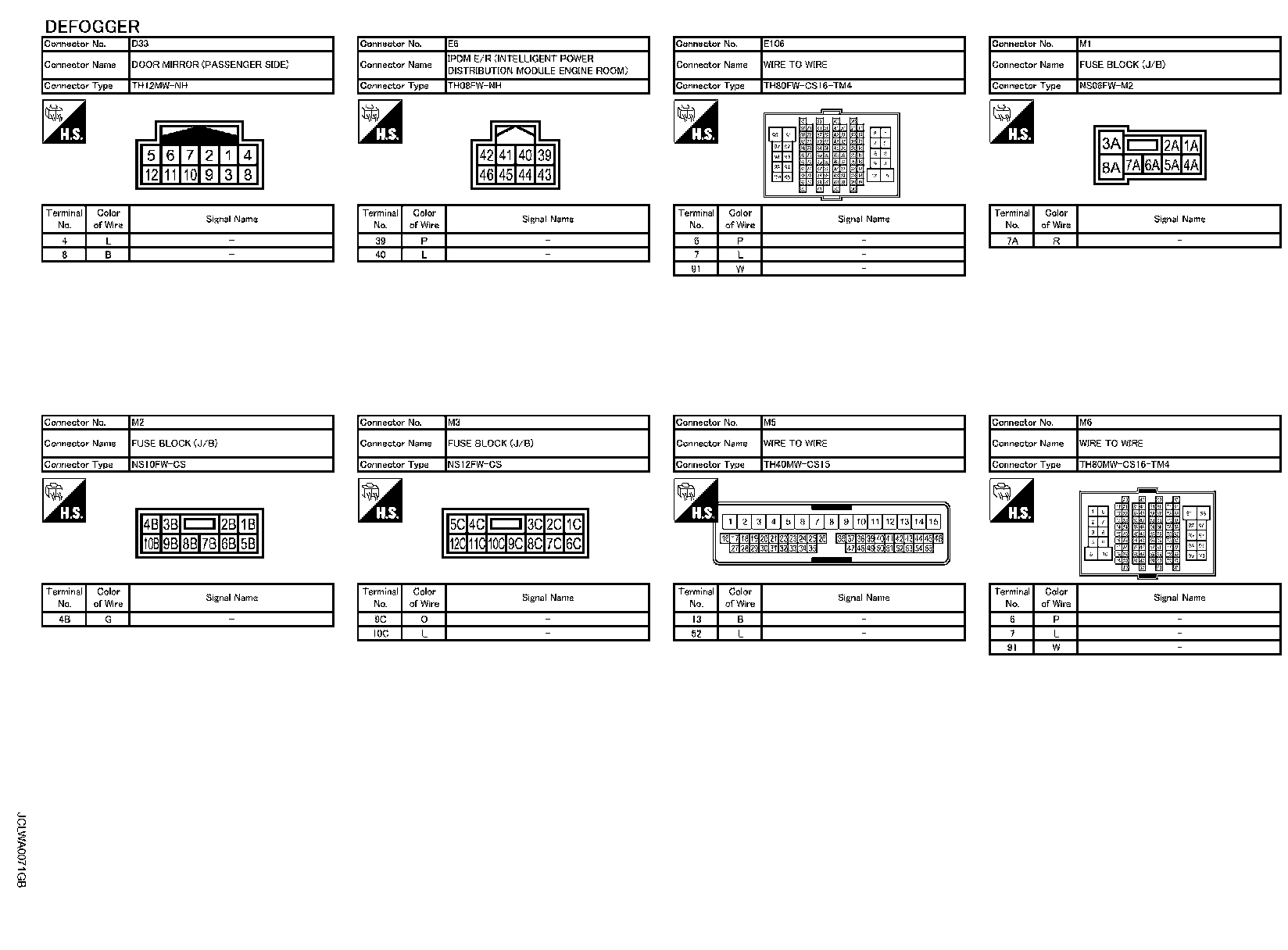

Wiring Diagram - Defogger (Part 3):

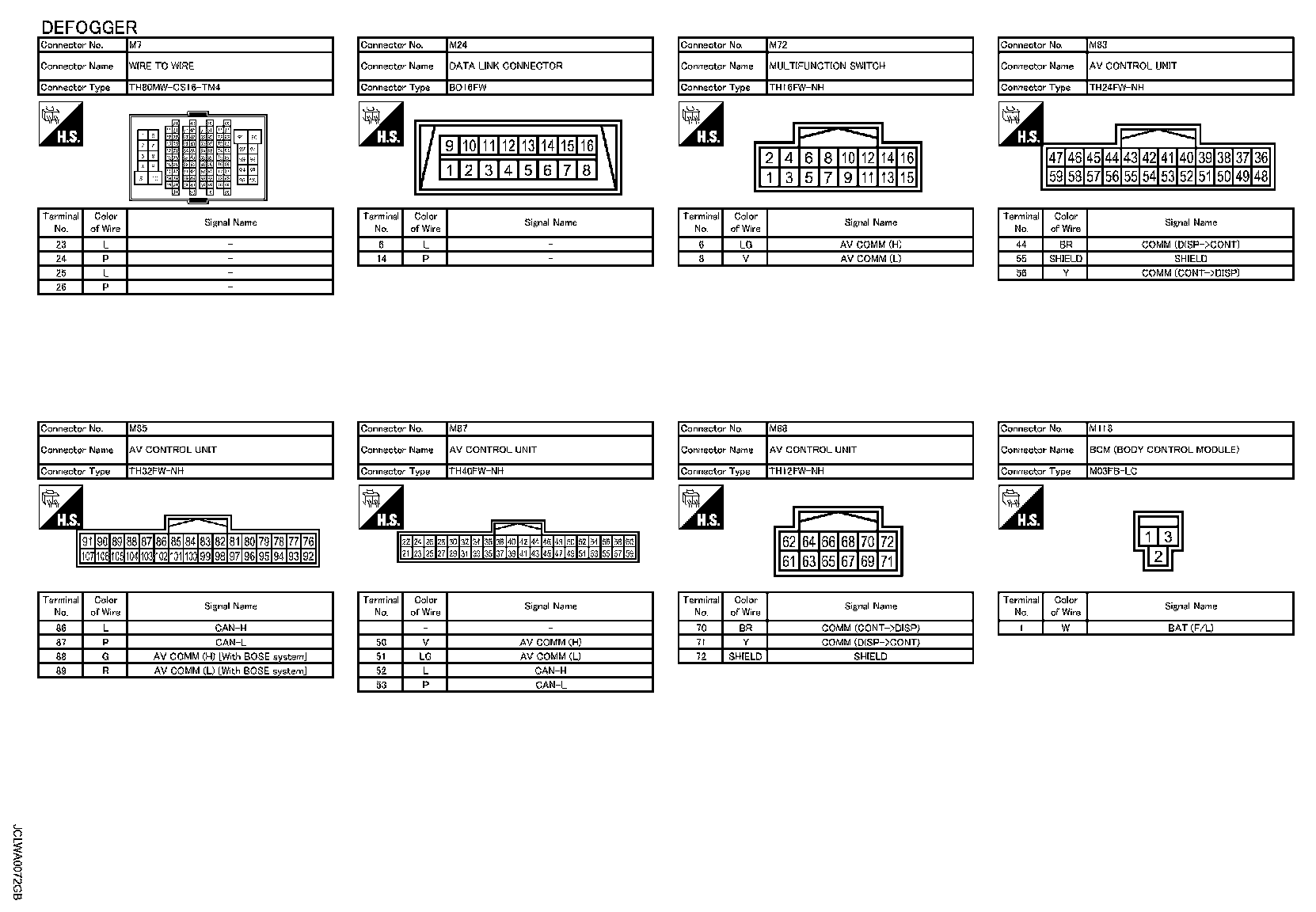

Wiring Diagram - Defogger (Part 4):

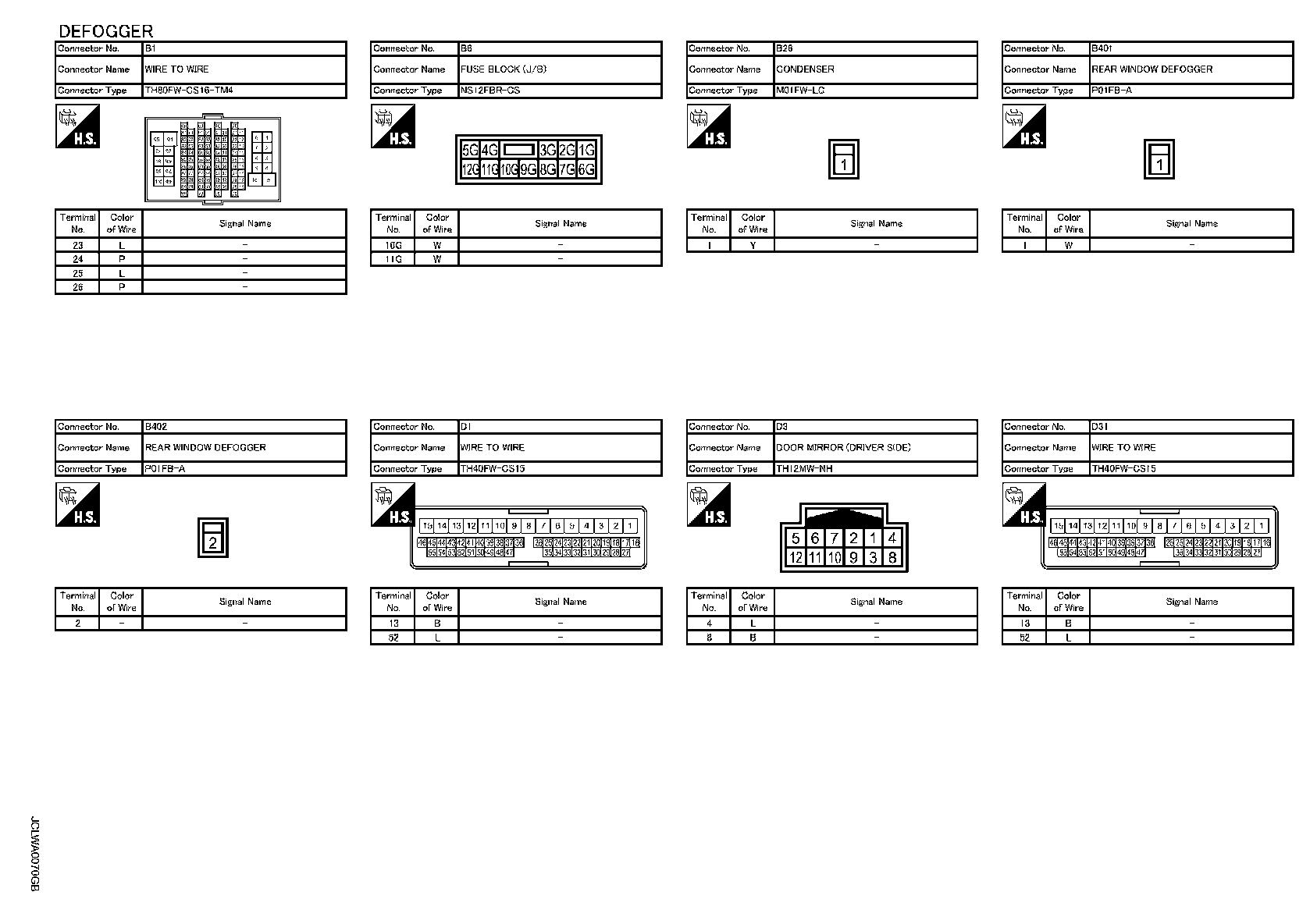

Wiring Diagram - Defogger (Part 5):
