Front Wiper Motor HI Circuit

FRONT WIPER MOTOR HI CIRCUIT

Step 1:

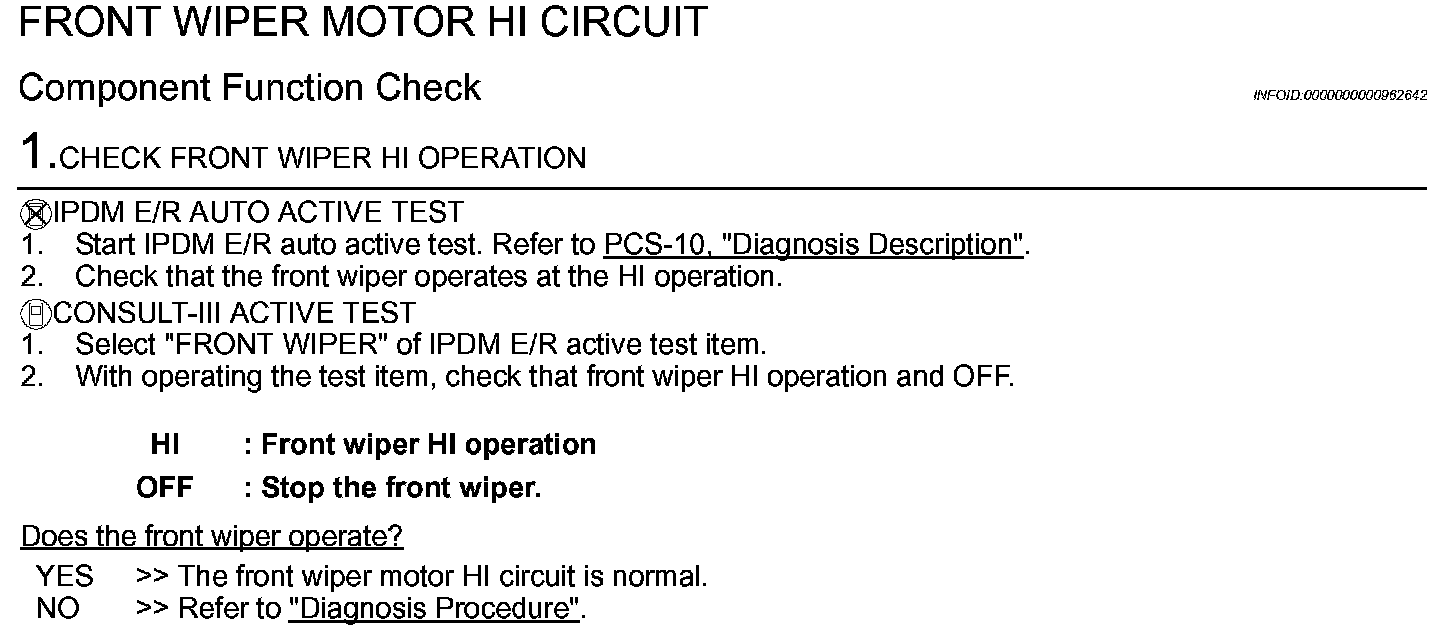

Component Function Check

Step 1-3:

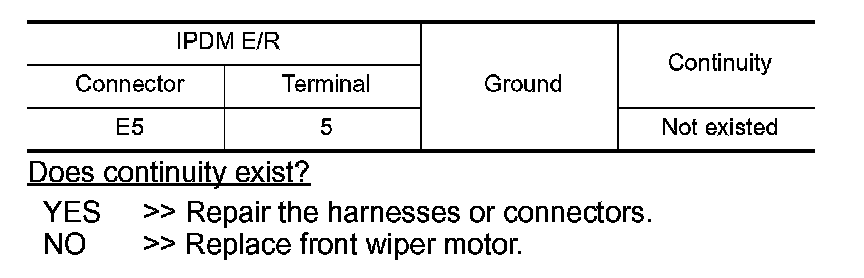

Step 3 (Continued):

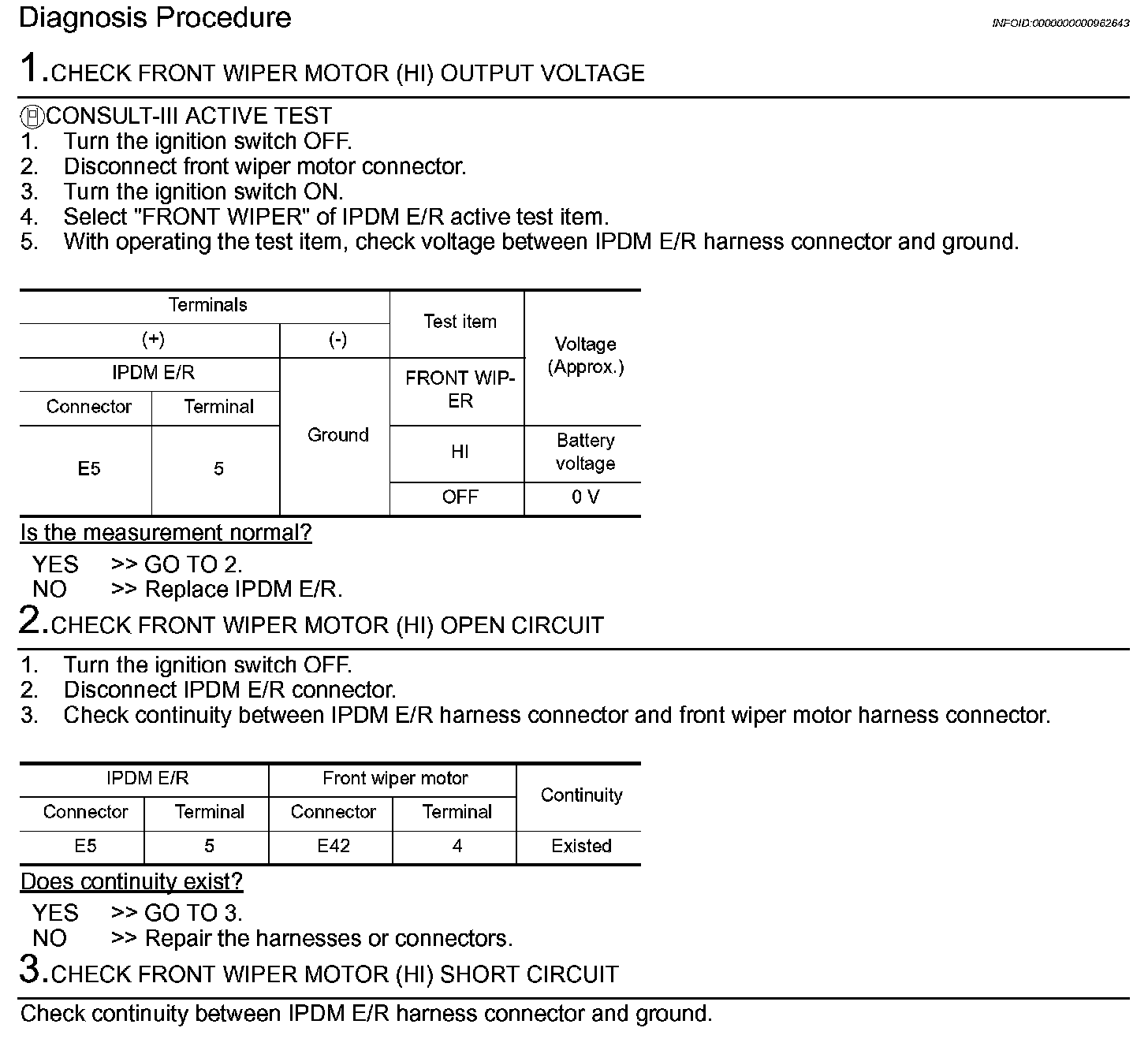

Diagnosis Procedure
