B1023
B1023 PASS A/B INDCTR CKTDescription
DTC B1023 PASS A/B INDCTR CKT
Suppresses the deployment of passenger air bag when the condition of passenger seat is empty or child and child-seat. And turns on passenger air bag indicator (cut-off telltale) lamp when the condition of passenger seat is child-seat and child. In case of malfunction the blinking of the SRS air bag warning lamp reports the malfunction to driver and by the on board self-diagnosis system or electro-diagnosis tester CONSULT-III can detect the cause.
OPERATION
Turns on passenger air bag indicator (cut-off telltale) when the passenger seat is empty or occupied by child seat and child.
STRUCTURE
Passenger air bag indicator (cut-off telltale) with LED illumination.
INSTALLATION
Passenger air bag indicator (cut-off telltale) is installed at the instrument panel center.
DTC Logic

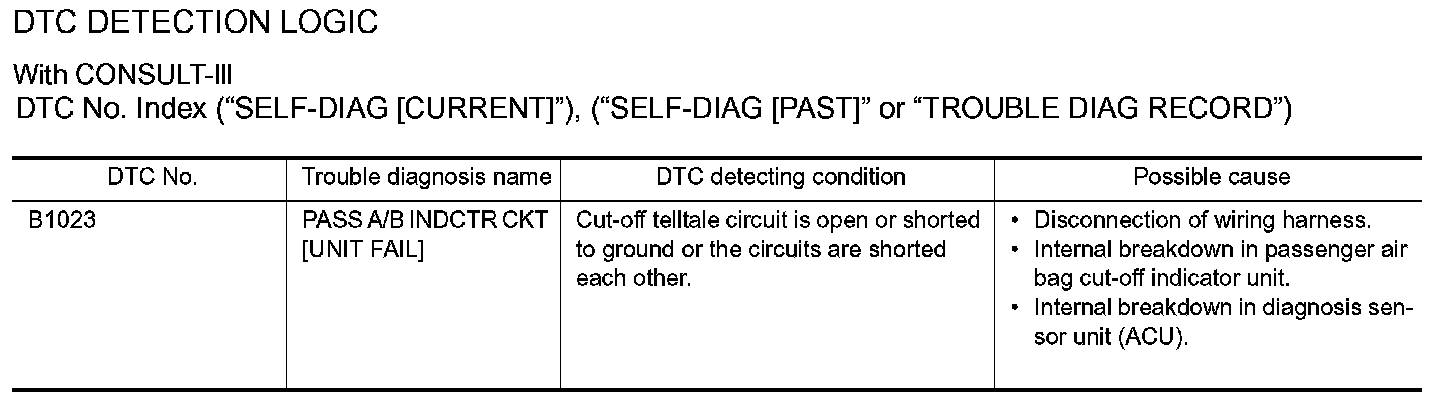

DTC DETECTION LOGIC
DTC CONFIRMATION PROCEDURE (With CONSULT-III)
Step 1-2:

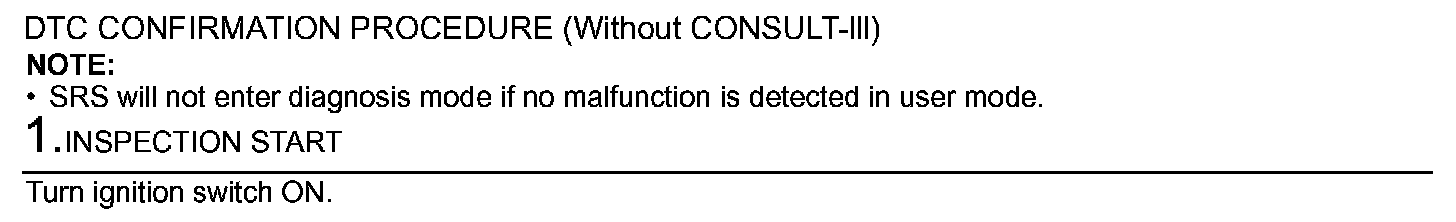

DTC CONFIRMATION PROCEDURE (Without CONSULT-III)
Step 1:

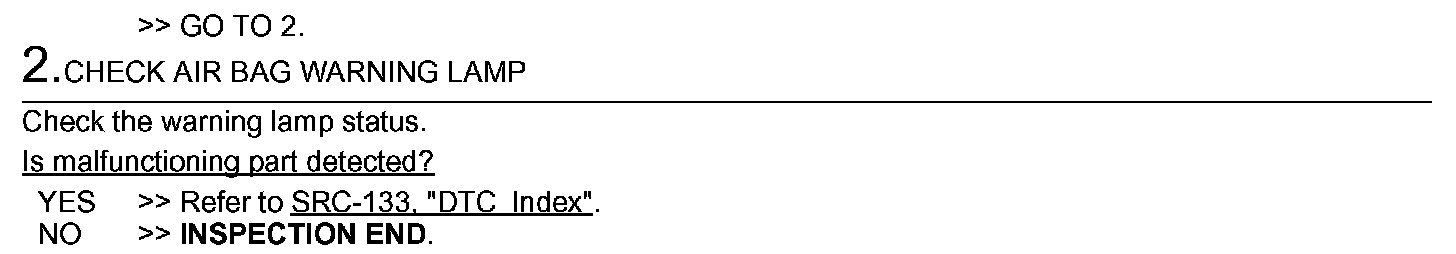

Step 1 (Continued)-2:
Diagnosis Procedure (Component diagnosis)
With CONSULT-III
WARNING:
- Before servicing, turn ignition switch OFF, disconnect both battery terminals and wait at least 3 minutes. (To discharge backup capacitor.)
- Do not use unspecified tester or other measuring device

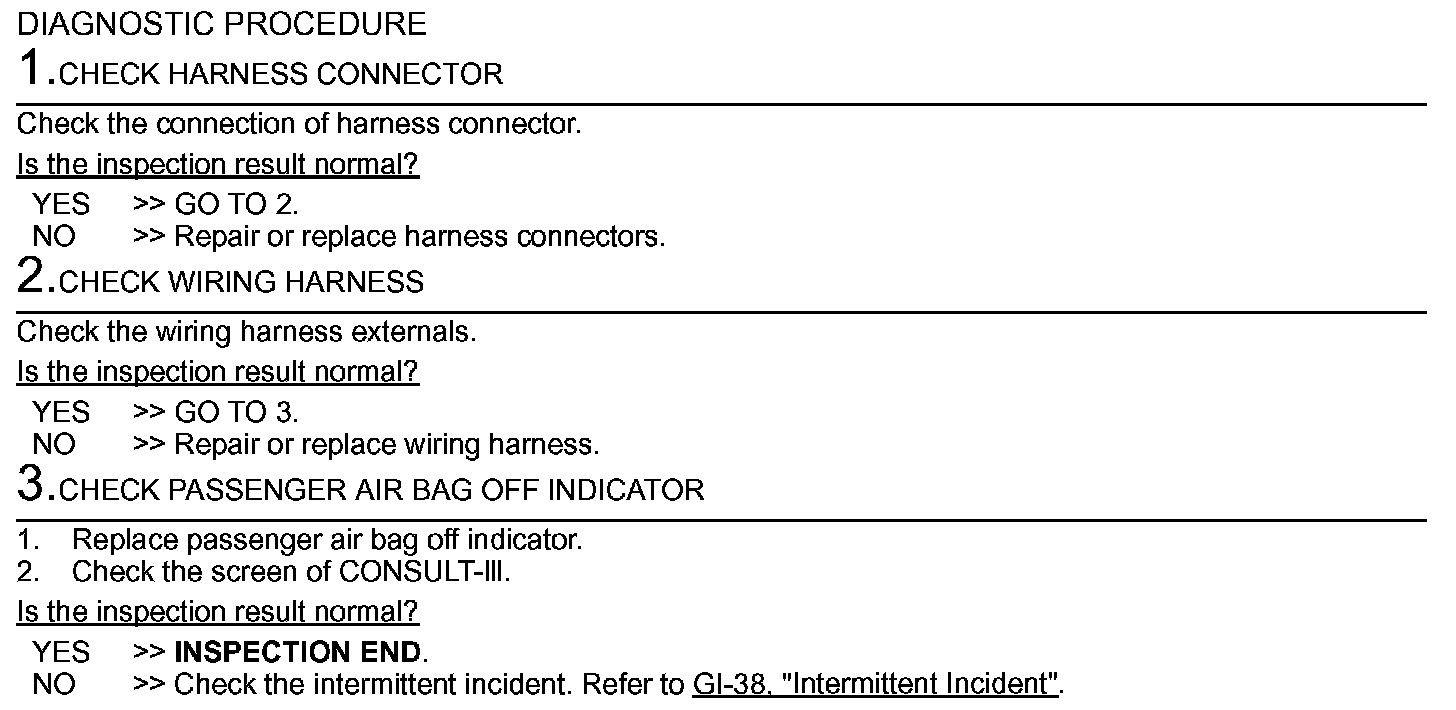

DIAGNOSTIC PROCEDURE
