B2112

B2112 SLIDING MOTOR

Description
- The seat sliding motor is installed on the seat cushion frame.
- The seat sliding motor is activated with the driver seat control unit.
- Slides the seat frontward/rearward by changing the rotation direction of sliding motor.

DTC Logic

DTC DETECTION LOGIC

DTC CONFIRMATION PROCEDURE

Step 1-2:

NOTE: First perform diagnosis for B2126 or B2127 if B2126 or B2127 is detected.

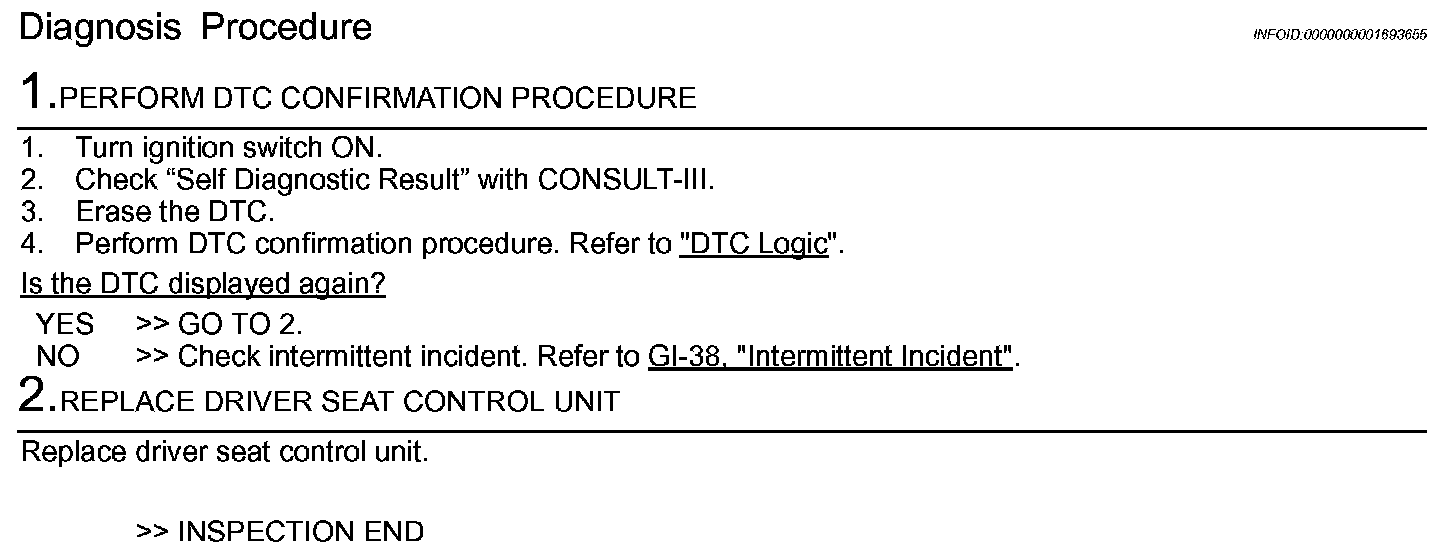

Diagnosis Procedure
