B2113

B2113 RECLINING MOTOR

Description
- The seat reclining motor is installed on the seatback frame.
- The seat reclining motor is activated with the driver seat control unit.
- Tilts the seatback frontward/rearward by changing the rotation direction of reclining motor.

DTC Logic

DTC DETECTION LOGIC

DTC CONFIRMATION PROCEDURE

Step 1-2:

NOTE: First perform diagnosis for B2126 or B2127 if B2126 or B2127 is detected.

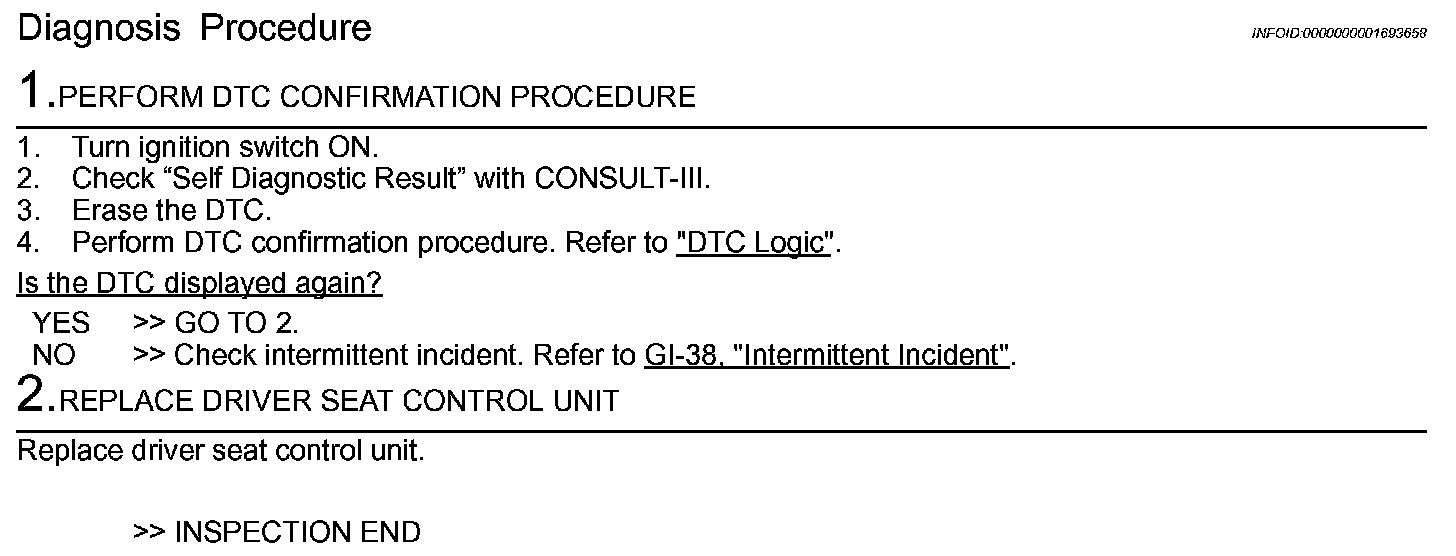

Diagnosis Procedure
