B2195

B2195 ANTI-SCANNING

Description
When the ID of the remote control engine starter installed cannot be registered, anti-scanning operates and it may be possible that the engine can not start. In the case, obtain the customer approval to remove the remote control engine starter.

DTC Logic

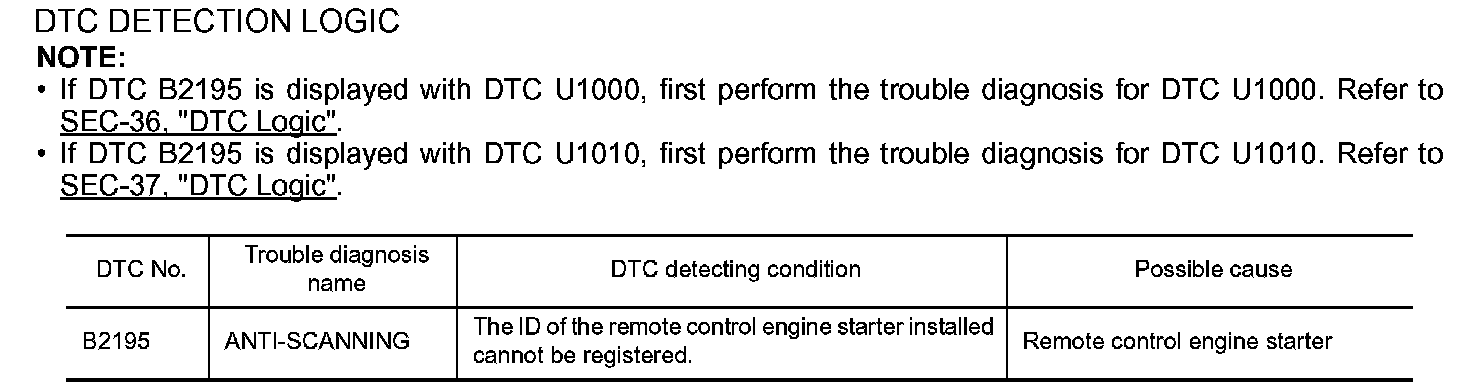

DTC DETECTION LOGIC

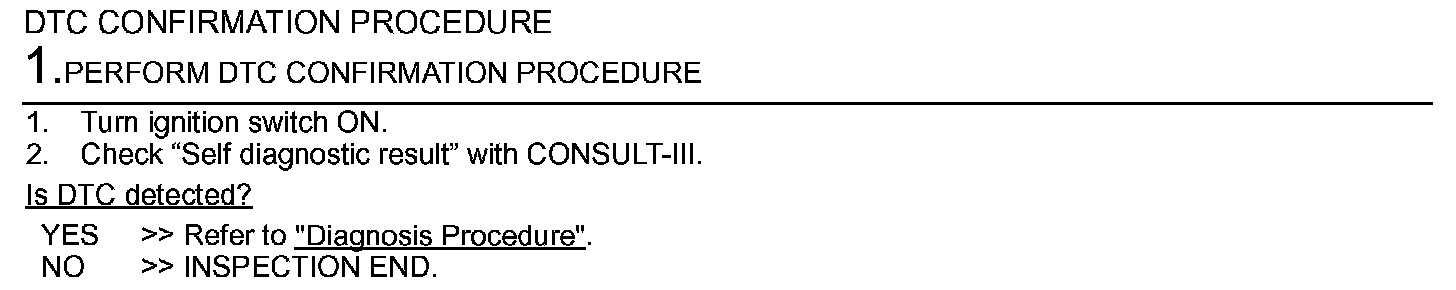

DTC CONFIRMATION PROCEDURE

Step 1:

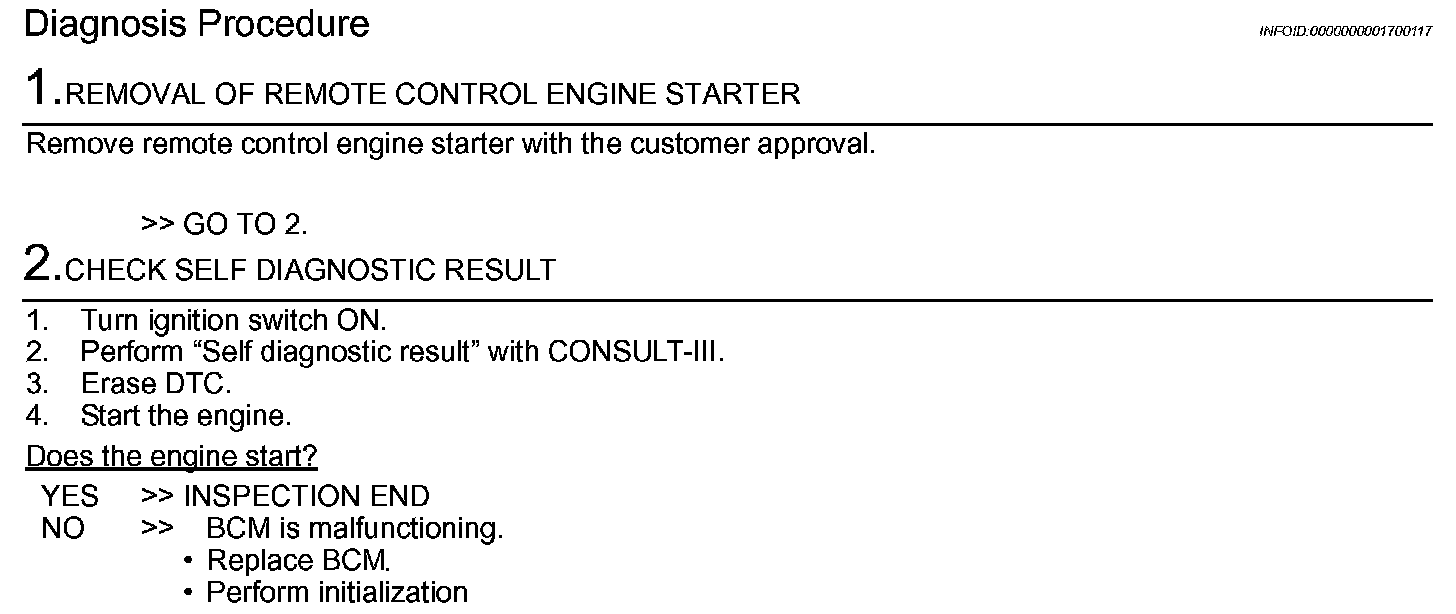

Diagnosis Procedure

Step 1-2:
