B2455

B2455 PSB C/U INT CIRCUIT

Description
- It controls pre-crash seat belt motor according to input signal.
- It consists of pre-crash seat belt control unit.
- It is installed on the back of the glove box.

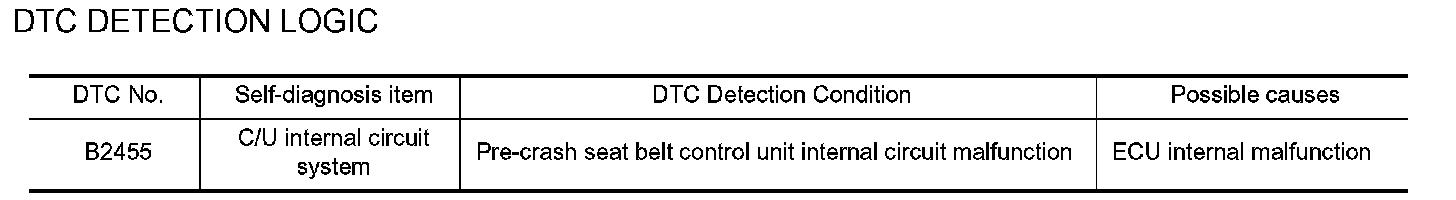

DTC Logic

DTC DETECTION LOGIC
