C1A03

C1A03 VEHICLE SPEED SENSOR

Description
The ICC sensor integrated unit receives the vehicle speed signal (wheel speed) from the ABS actuator and electric unit (control unit) and the A/T vehicle speed sensor signal (output shaft revolution signal) from TCM with CAN communication.

NOTE: If DTC C1A03 is detected along with DTC U1000 or C1A04, first diagnose the DTC U1000 or C1A04.
- DTC U1000: Refer to CCS-79, "Diagnosis Procedure". Cruise Control
- DTC C1A04: Refer to CCS-32, "Diagnosis Procedure". C1A04

DTC Logic

DTC DETECTION LOGIC

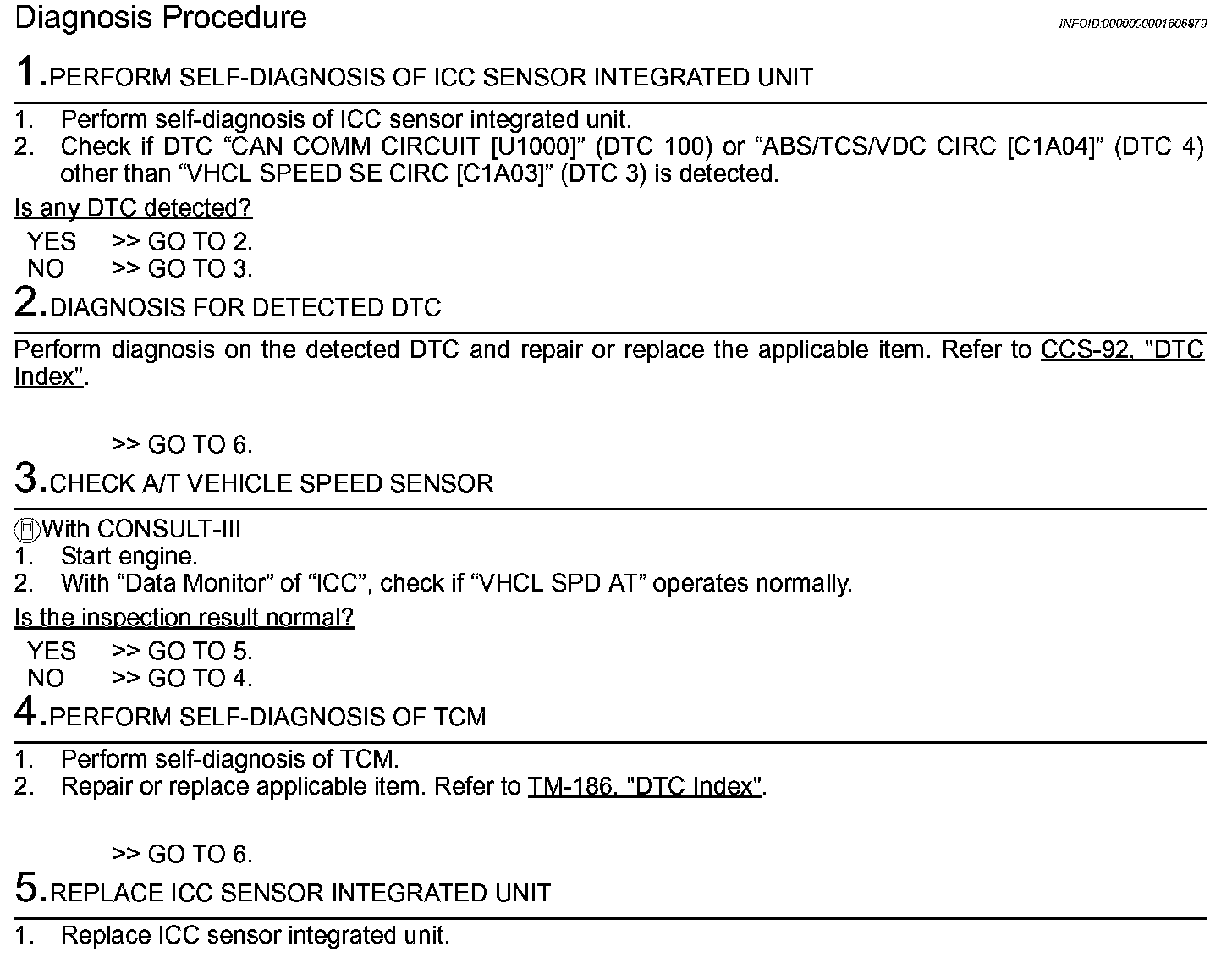

Diagnosis Procedure

Step 1-5:

Step 5 (Continued)-6:
