C1A06

C1A06 OPERATION SW

Description
- To activate or deactivate the ICC system and set the vehicle speed and vehicle-to-vehicle distance, use the ICC steering switch.
- The ICC steering switch signal is inputted to ECM. ECM transmits the data to the ICC sensor integrated unit with CAN communication.

NOTE: If DTC C1A06 is detected along with DTC U1000 or U0401, first diagnose the DTC U1000 or U0401.
- DTC U1000: Refer to CCS-79, "Diagnosis Procedure". Cruise Control
- DTC U0401: Refer to CCS-73, "Diagnosis Procedure". U0401

DTC Logic

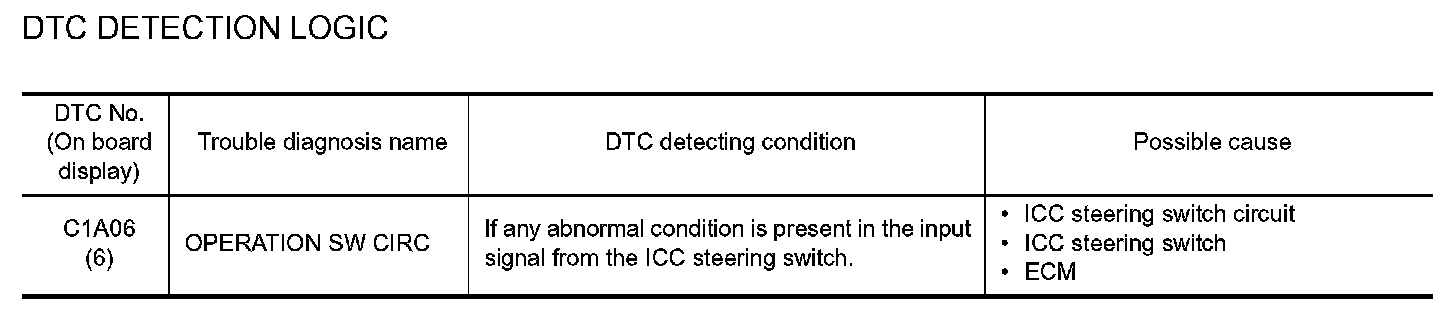

DTC DETECTION LOGIC






Diagnosis Procedure

Step 1-5:

Step 5 (Continued)-11:

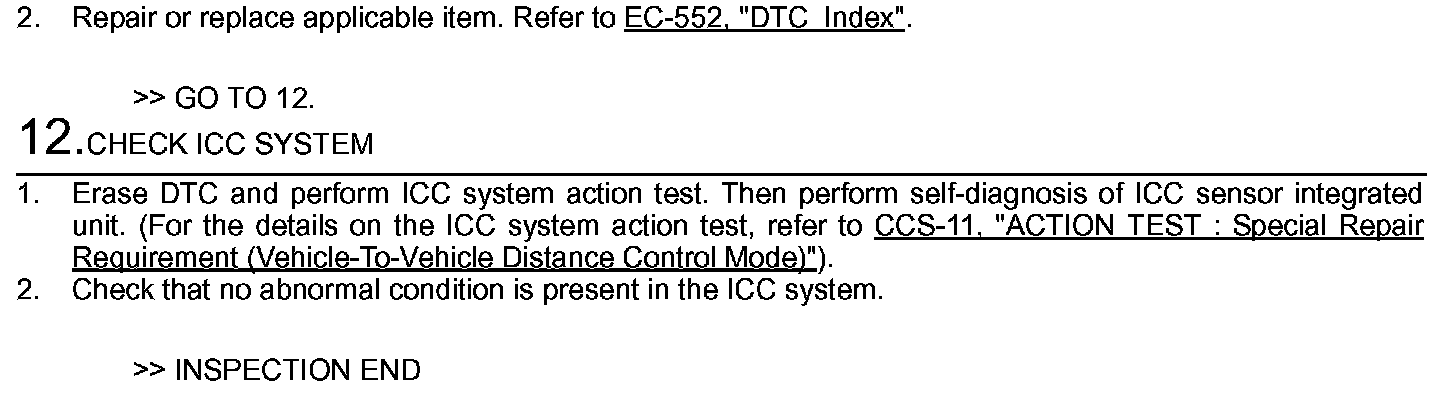

Step 11 (Continued)-12:

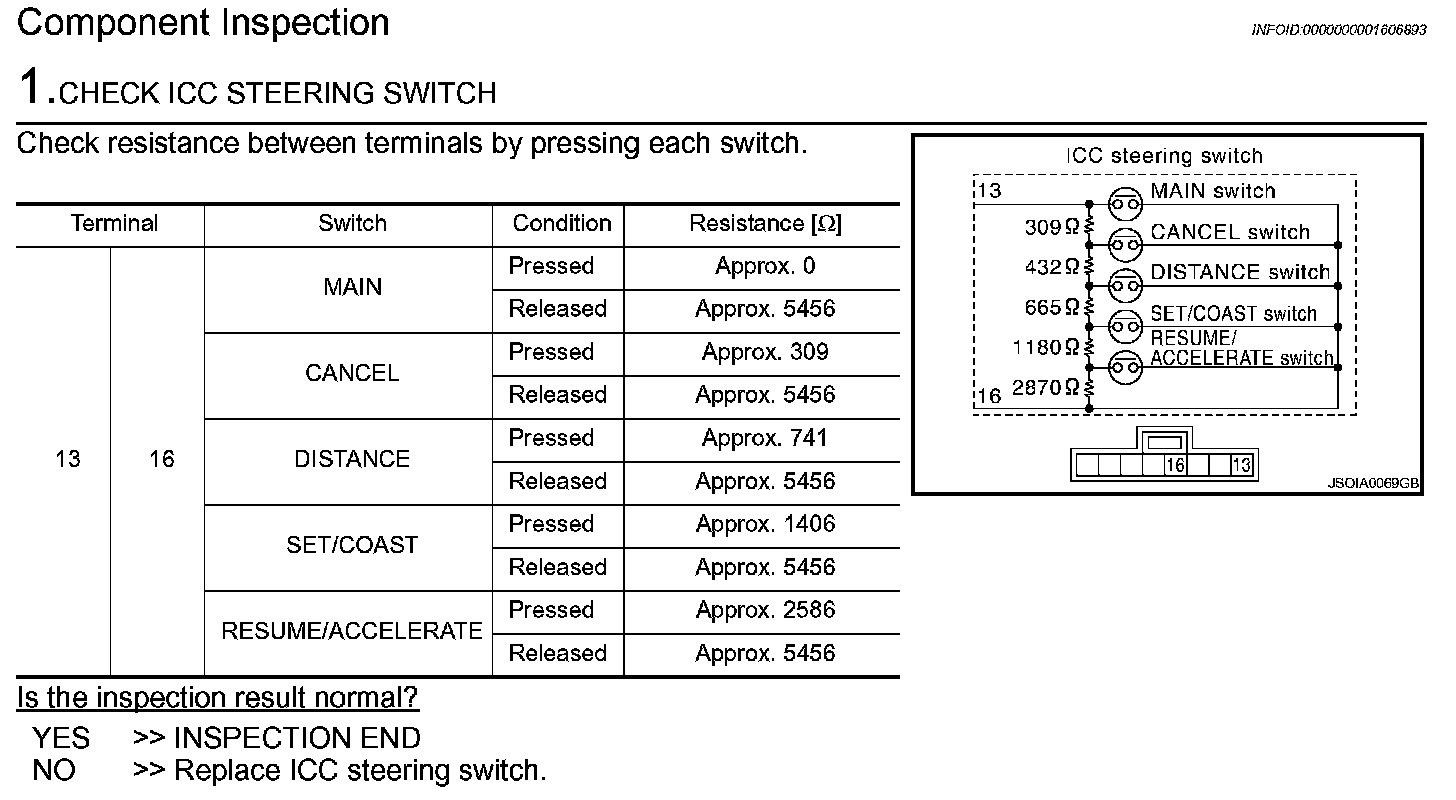

Component Inspection

Step 1:
