C1A24

C1A24 NP RANGE

Description
Park/neutral position switch signal is transmitted by TCM to ICC sensor integrated unit with CAN communication (A/T).

NOTE: If DTC C1A24 is detected along with DTC U1000 or U0402, first diagnose the DTC U1000 or U0402.
- DTC U1000: Refer to CCS-79, "Diagnosis Procedure". Cruise Control
- DTC U0402: Refer to CCS-75, "Diagnosis Procedure". U0402

DTC Logic

DTC DETECTION LOGIC

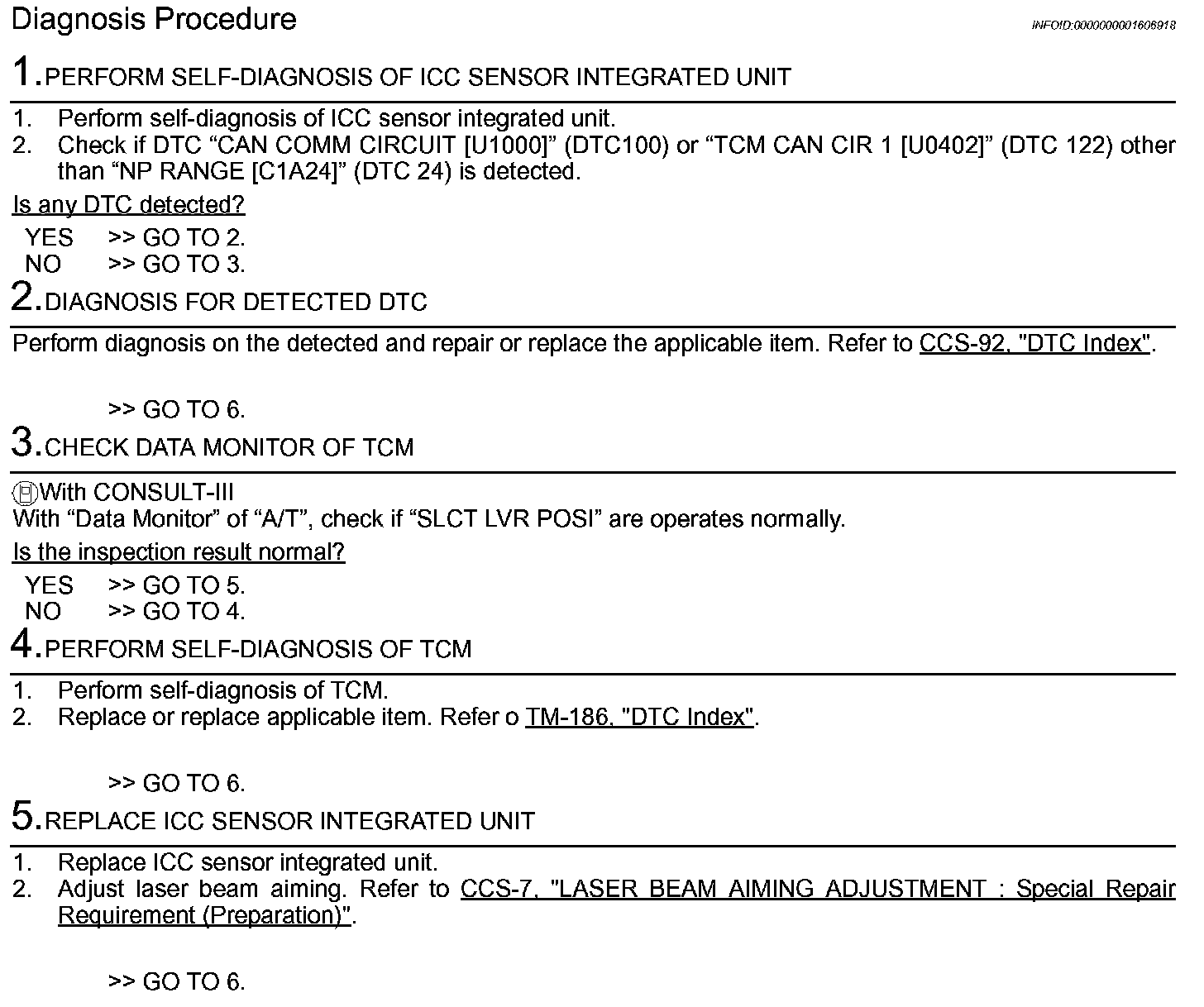

Diagnosis Procedure

Step 1-5:

Step 6:
