P0455

P0455 EVAP CONTROL SYSTEM

DTC Logic

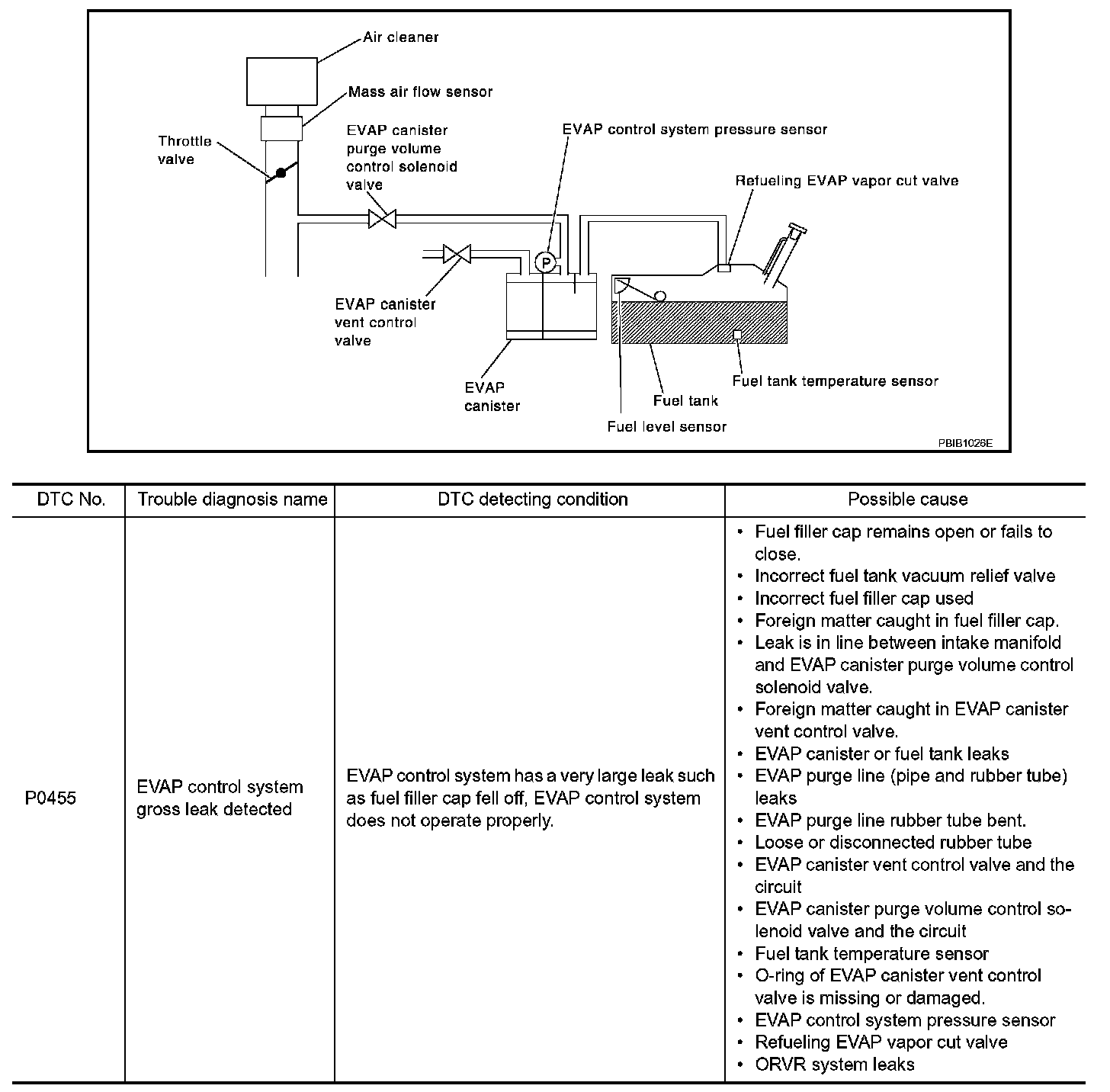

DTC DETECTION LOGIC
This diagnosis detects a very large leak (fuel filler cap fell off etc.) in EVAP system between the fuel tank and EVAP canister purge volume control solenoid valve.






CAUTION:
- Use only a genuine NISSAN fuel filler cap as a replacement. If an incorrect fuel filler cap is used, the MIL may come on.
- If the fuel filler cap is not tightened properly, the MIL may come on.
- Use only a genuine NISSAN rubber tube as a replacement.

DTC CONFIRMATION PROCEDURE

Step 1:

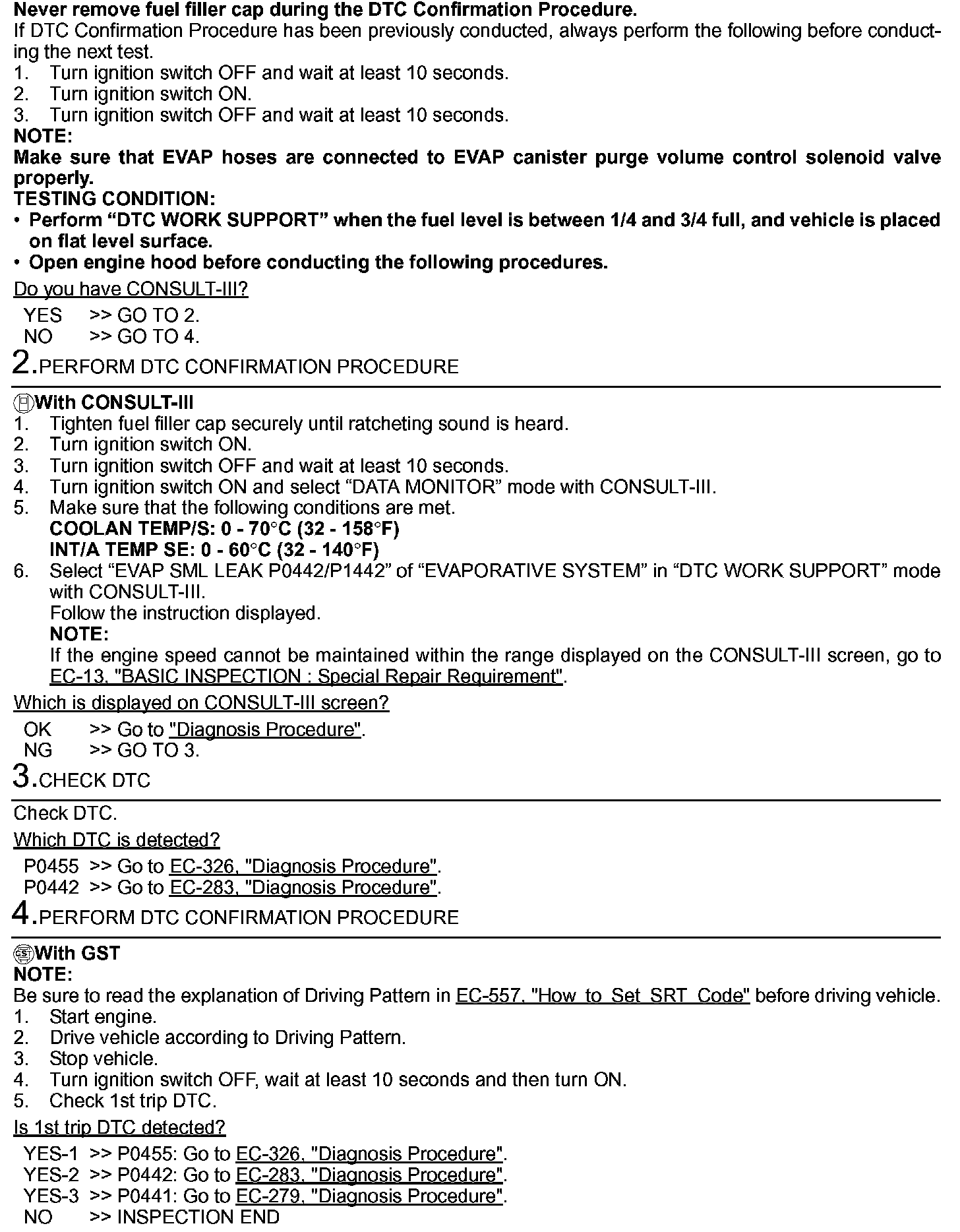

Step 1 (Continued)-4:

Diagnosis Procedure

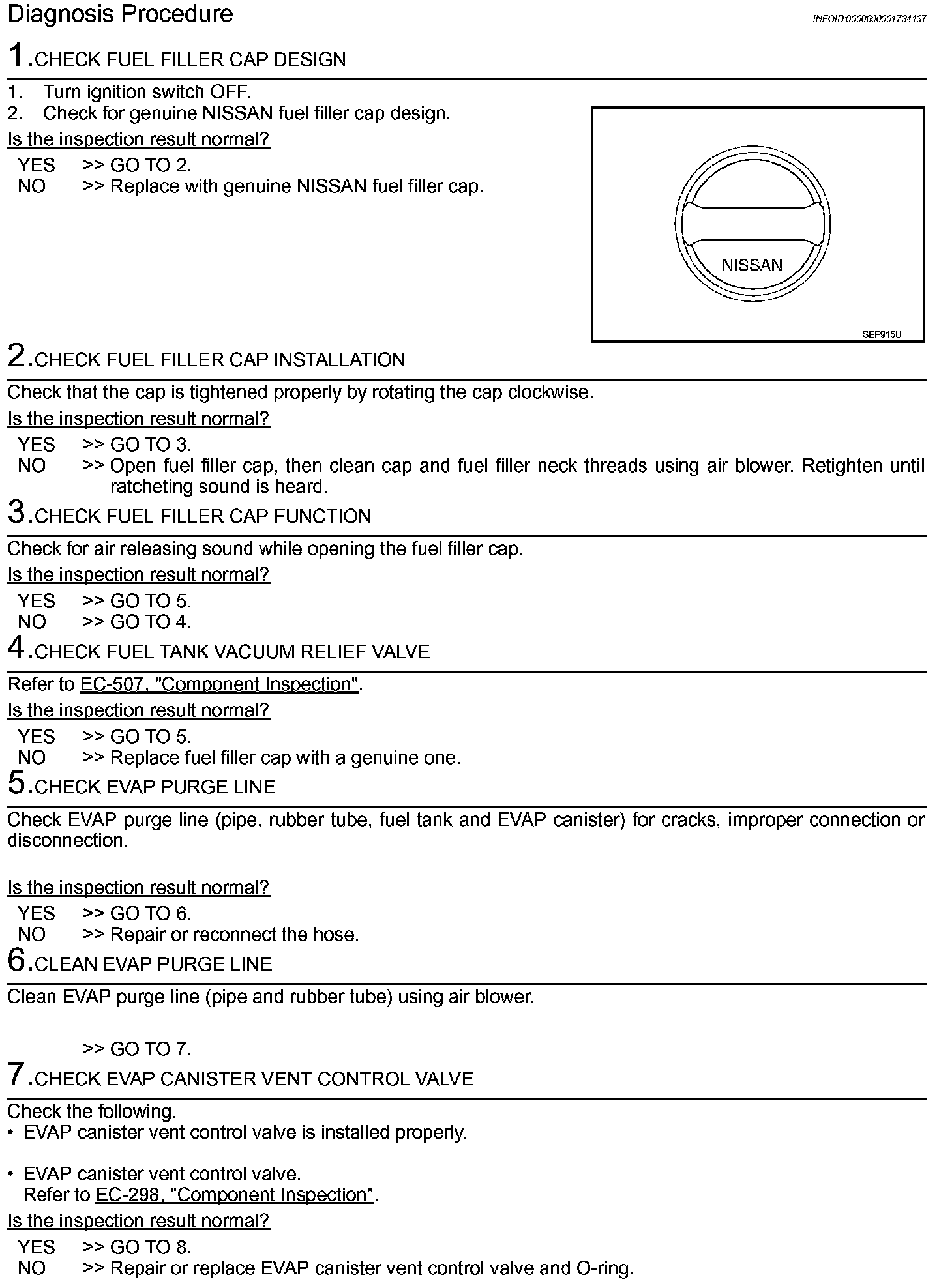

Step 1-7:

Step 8-13:

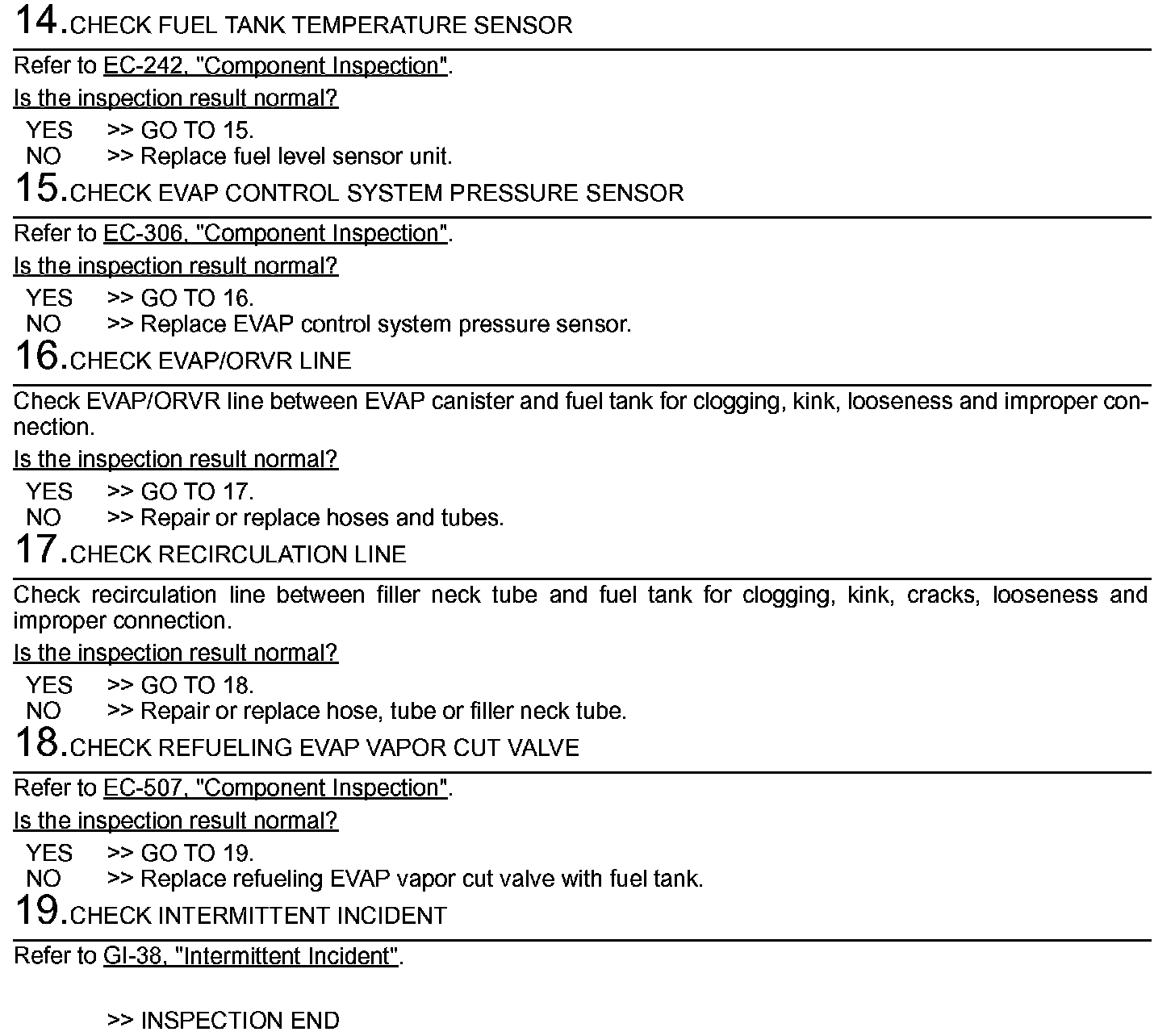

Step 14-19:

Component Inspection

Step 1:

Step 1 (Continued)-2:
