P1568

P1568 ICC FUNCTION

DTC Logic

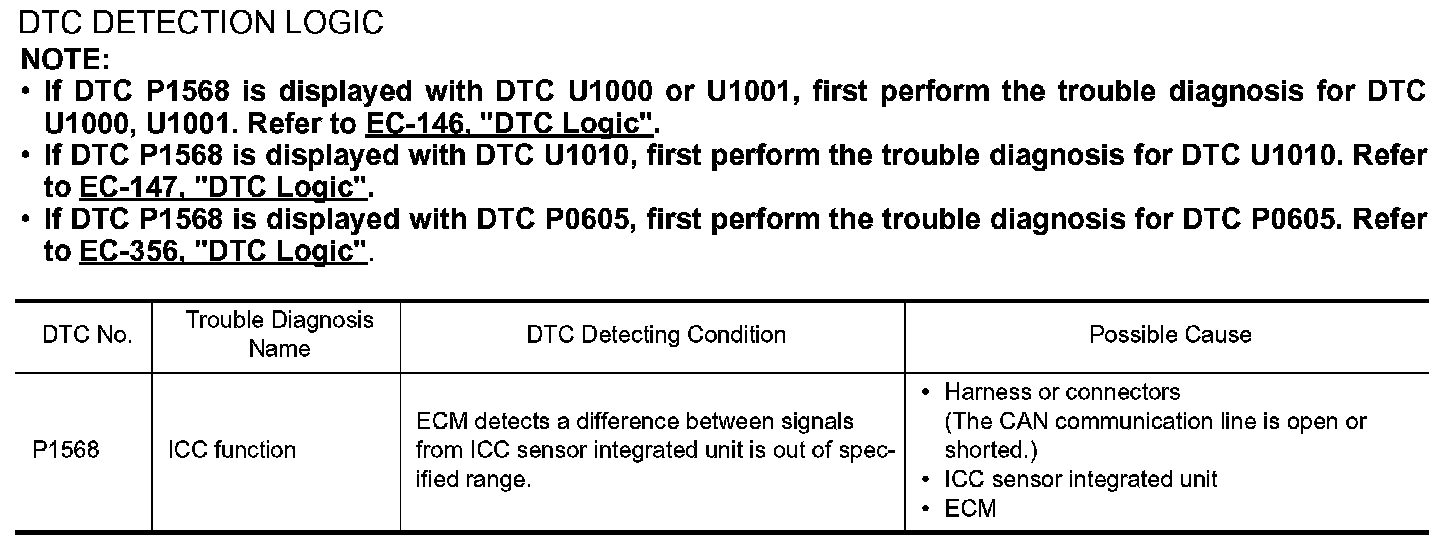

DTC DETECTION LOGIC

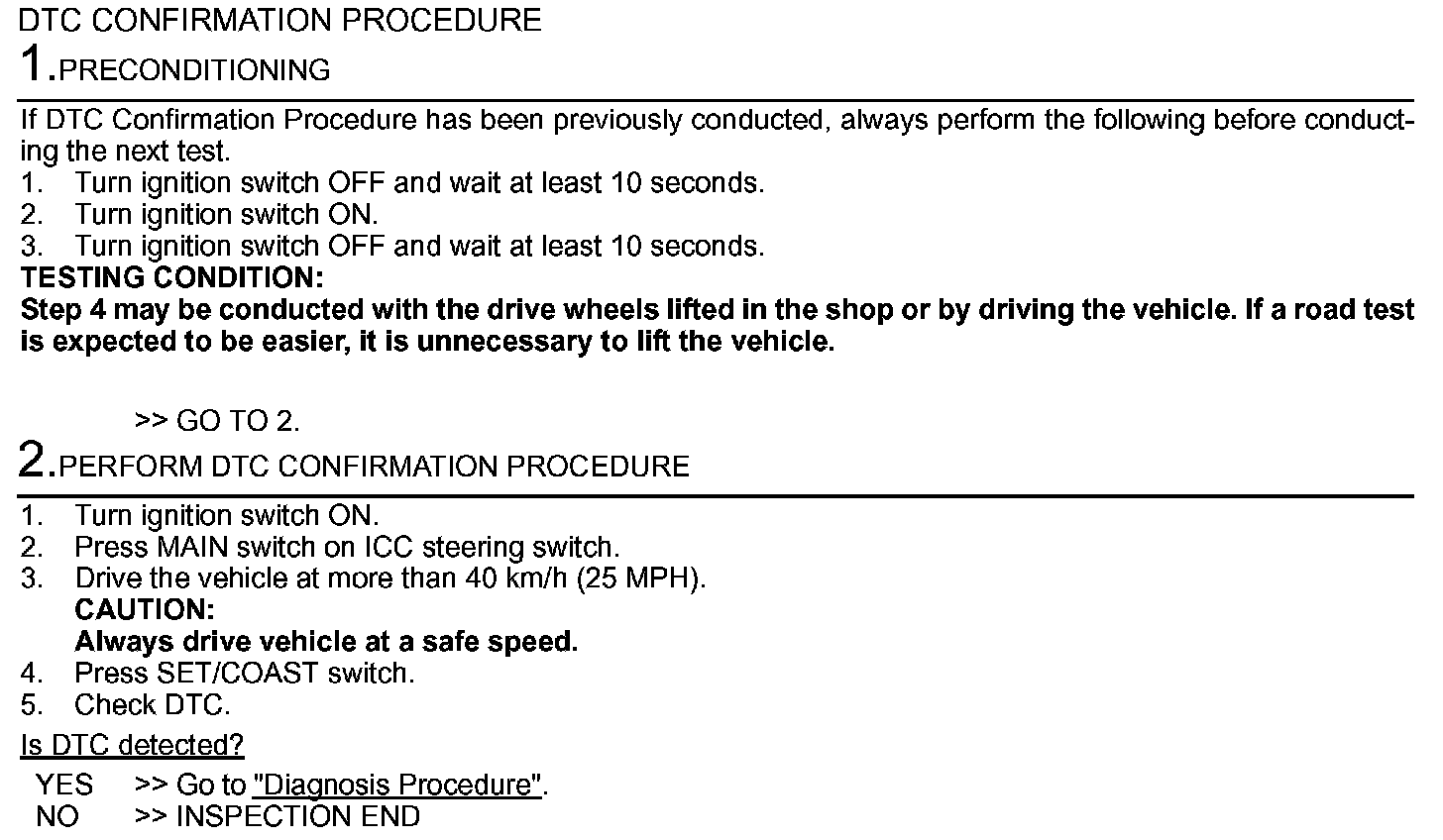

DTC CONFIRMATION PROCEDURE

Step 1-2:






Diagnosis Procedure

Step 1:
