Base Audio Without Navigation

SATELLITE RADIO ANTENNA

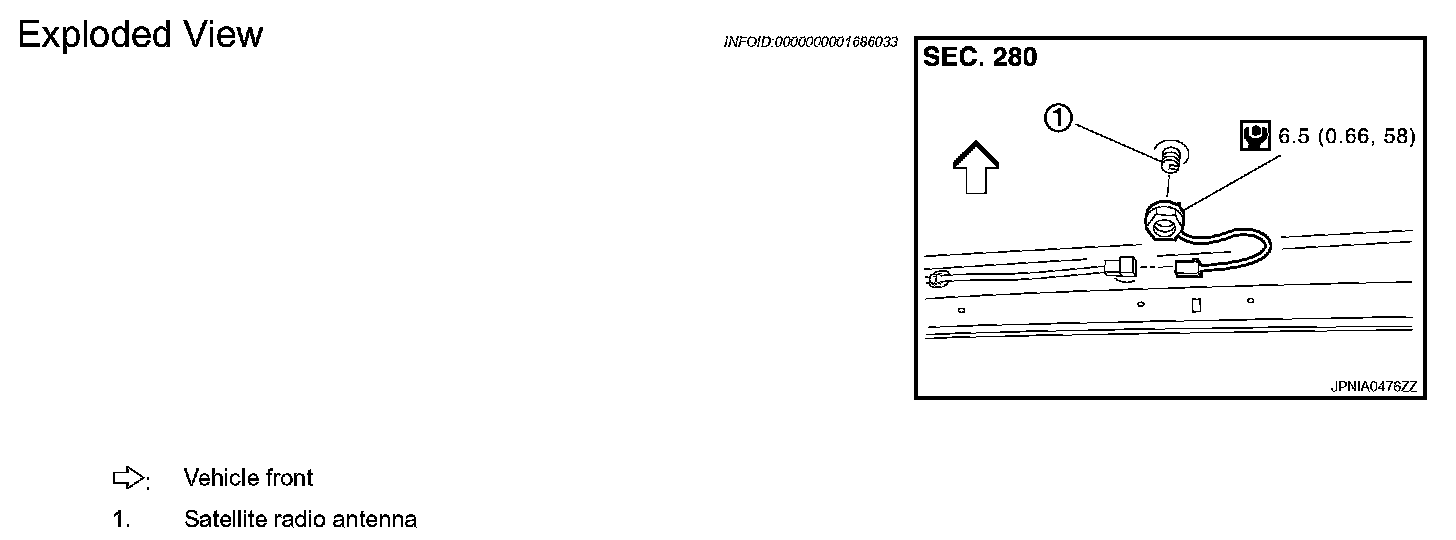

Exploded View

AV-116 Exploded View:

Removal and Installation

REMOVAL
1. Remove headlining assembly (rear) to secure work space between vehicle and headlining.
2. Remove nuts, and then remove satellite radio antenna from roof panel.

INSTALLATION
Install in the reverse order of removal.

Roof antenna mounting nut Torque: 6.5 N.m (0.66 kg-m, 58 in-lb)

CAUTION: Be careful about tightening torque. Antenna sensitivity becomes poor, and when it is excessive, roof panel may be deformed, when roof antenna mounting nut tightening torque is loose.
