Inside Key Antenna

INSIDE KEY ANTENNA

INSTRUMENT CENTER

INSTRUMENT CENTER : Removal and Installation

REMOVAL
1. Remove the console finisher.

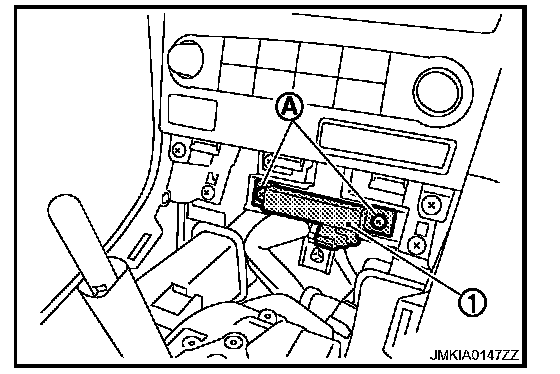

2. Remove the key slot mounting screw (A), and then remove inside key antenna (instrument center) (1).

INSTALLATION
Install in the reverse order of removal.

CONSOLE

CONSOLE : Removal and Installation

REMOVAL
1. Remove the console ashtray.
2. Remove the console rear finisher (2).




3. Remove the inside key antenna mounting screw (A), and then remove inside key antenna (console) (1) from console rear finisher (2).

INSTALLATION
Install in the reverse order of removal.

TRUNK ROOM

TRUNK ROOM : Removal and Installation

REMOVAL
1. Remove trunk floor carpet and trunk front finisher.

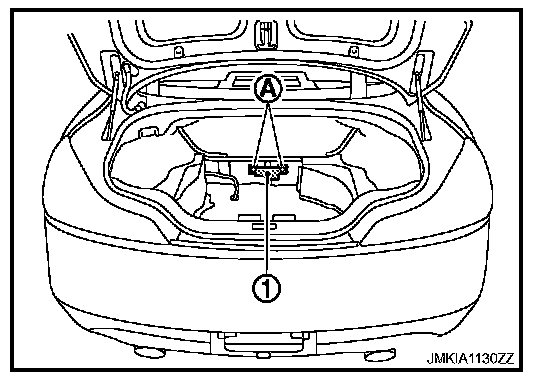

2. Remove the inside key antenna (trunk room) mounting clips (A), and then remove inside key antenna (trunk room) (1).

INSTALLATION
Install in the reverse order of removal.
