Trunk Lid Opener Cancel Switch

TRUNK LID OPENER CANCEL SWITCH

Description
Cancels trunk lid open operation.

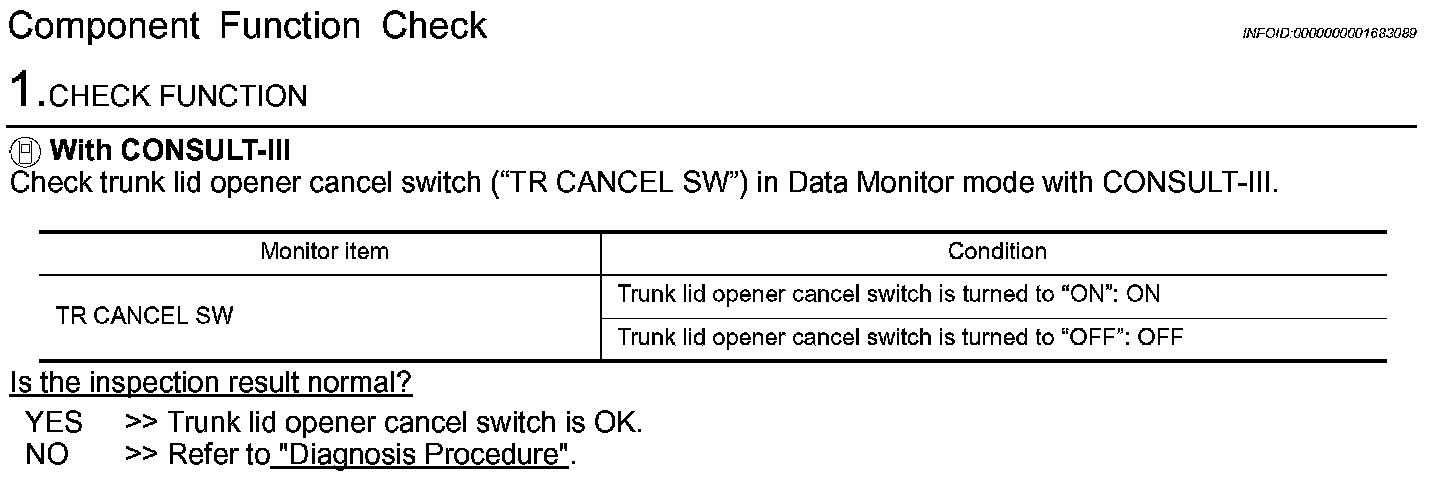

Component Function Check

Step 1:

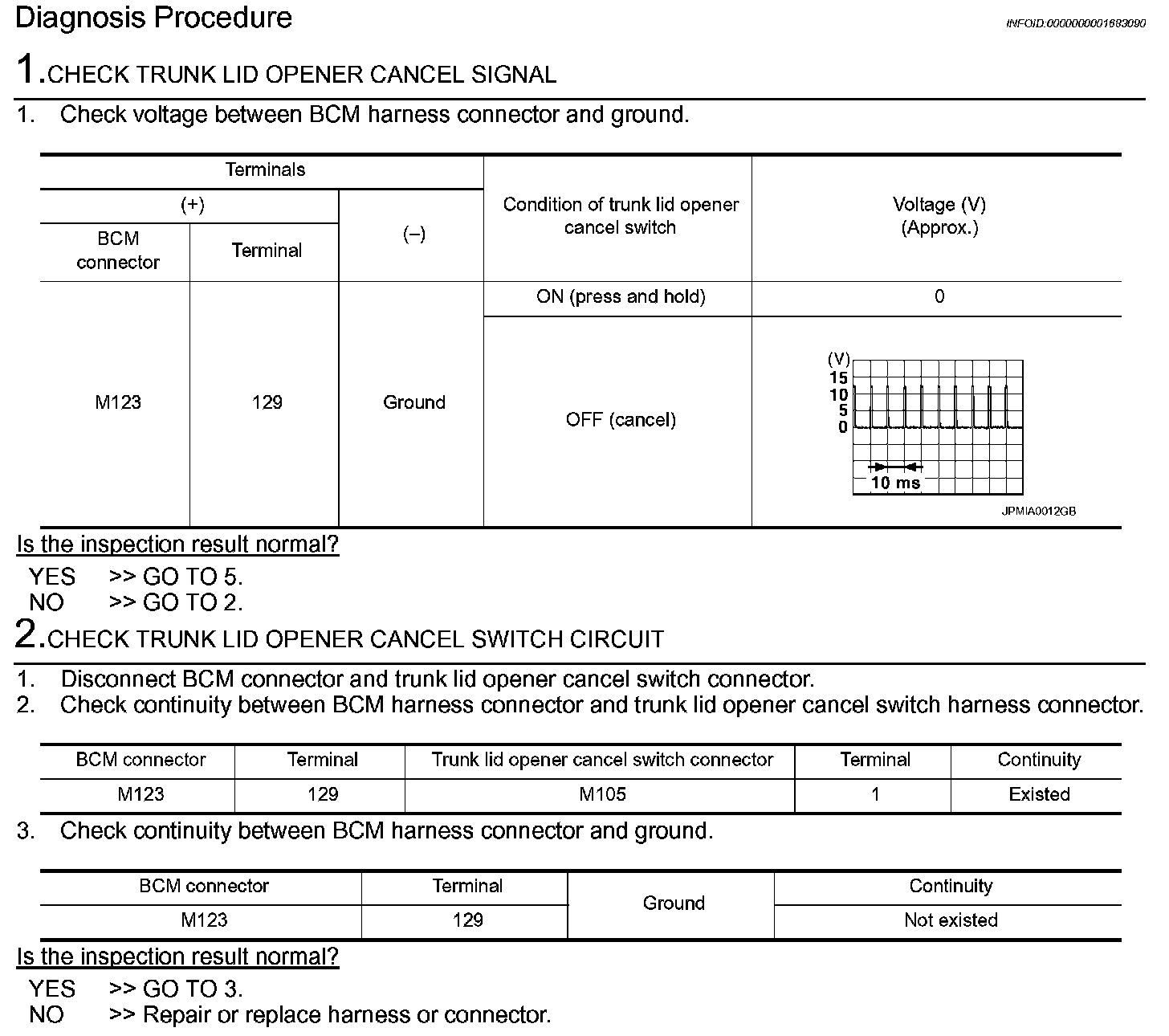

Diagnosis Procedure

Step 1-2:

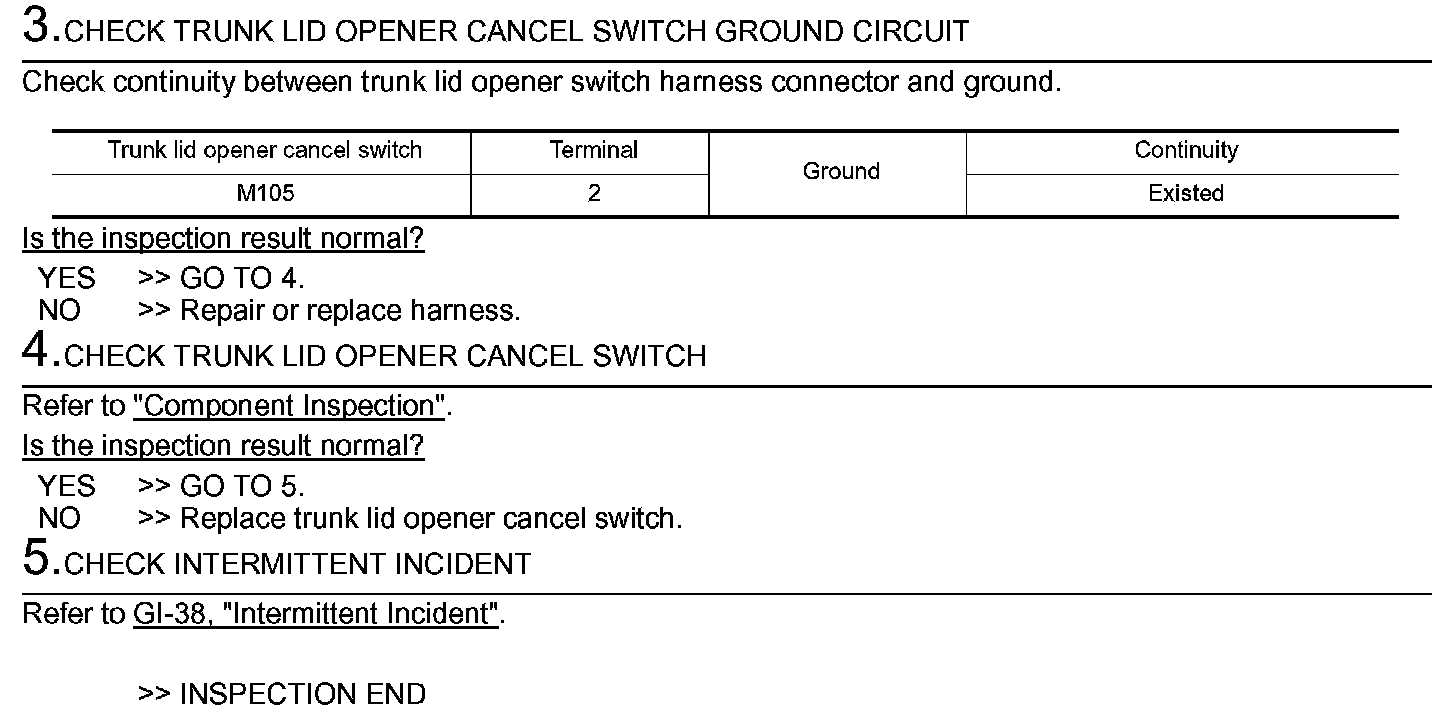

Step 3-5:






Component Inspection

Step 1:
