Auto Door Lock Operation Does Not Operate
AUTO DOOR LOCK OPERATION DOES NOT OPERATEDescription
NOTE:

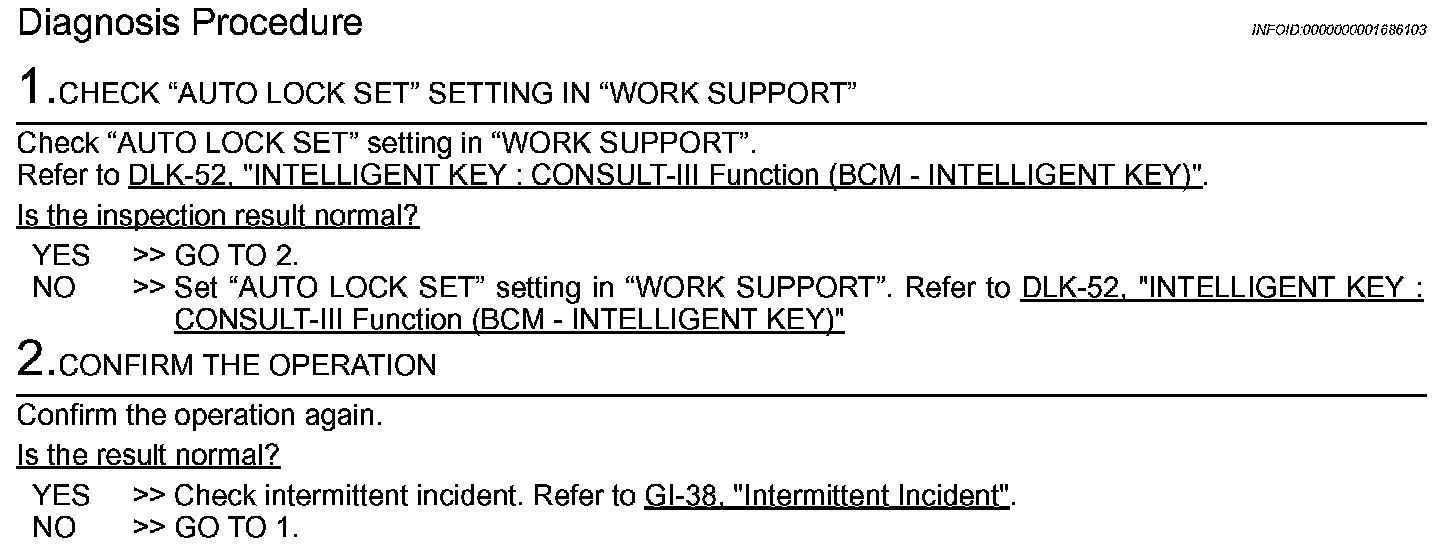

- Before performing the diagnosis in the following table, check "Work Flow". Refer to DLK-8, "Work Flow". Diagnosis and Repair Workflow
- Check that vehicle is under the condition shown in "Conditions of vehicle" before starting diagnosis, and check each symptom.
CONDITIONS OF VEHICLE (OPERATING CONDITIONS)
- Request switch operation and Intelligent key operation are normal.
