Driver Side

DOOR DOES NOT LOCK/UNLOCK WITH DOOR REQUEST SWITCH DRIVER SIDE

DRIVER SIDE : Description

NOTE:
- Before performing the diagnosis in the following table, check "Work Flow". Refer to DLK-8, "Work Flow". Diagnosis and Repair Workflow
- Check that vehicle is under the condition shown in "Conditions of vehicle" before starting diagnosis, and check each symptom.

CONDITIONS OF VEHICLE (OPERATING CONDITIONS)
- Intelligent Key operation is normal.
- "LOCK/UNLOCK BY I-KEY" is ON when setting on CONSULT-III.
- Intelligent Key is removed from key slot.
- Ignition switch is in OFF position.
- No Intelligent Keys are inside the vehicle.

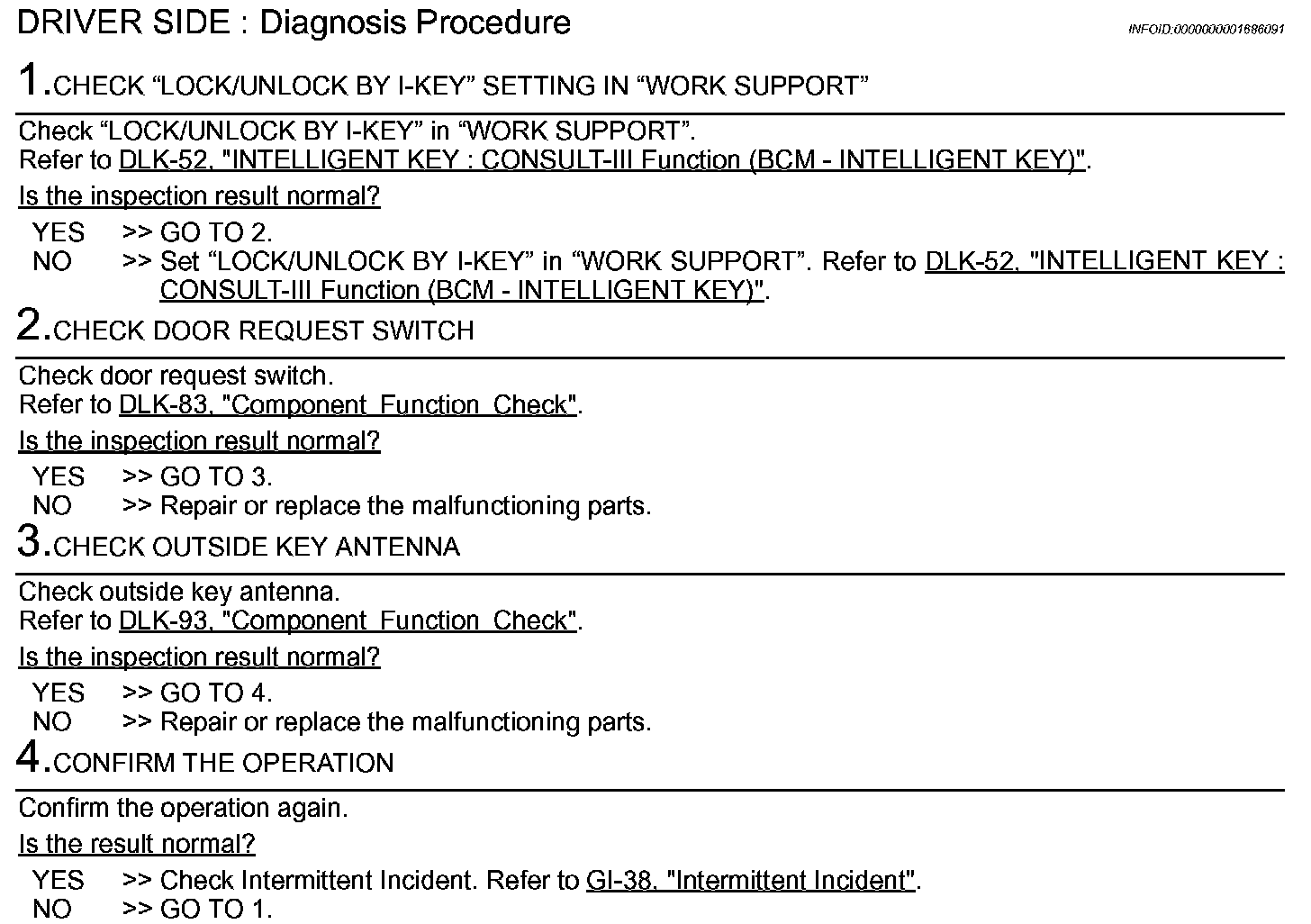

DRIVER SIDE : Diagnosis Procedure

Step 1-4:
