IPDM E/R (Intelligent Power Distribution Module Engine Room)
TERMINAL LAYOUT
PHYSICAL VALUES

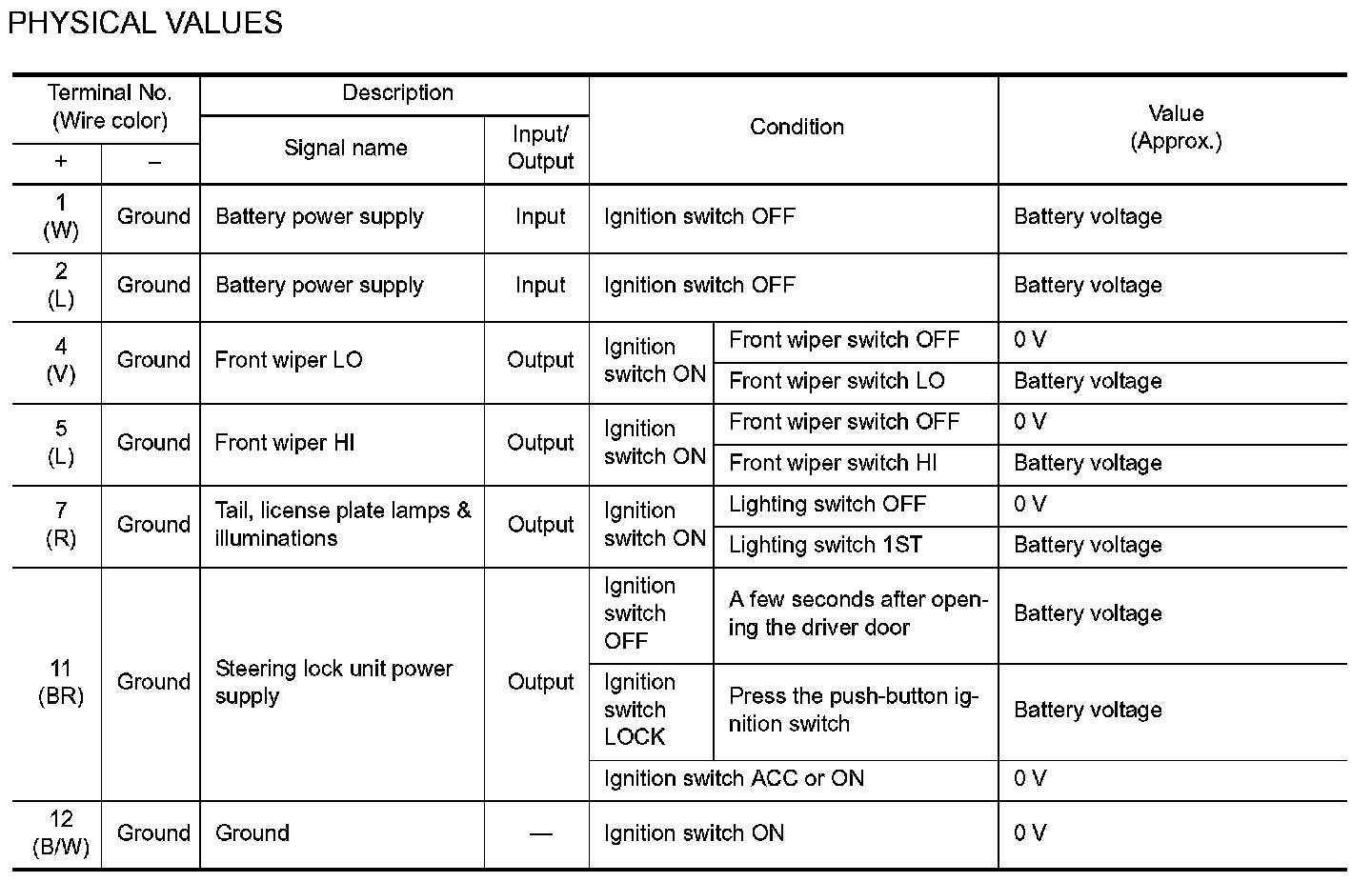

Terminal And Reference Values (Part 1):

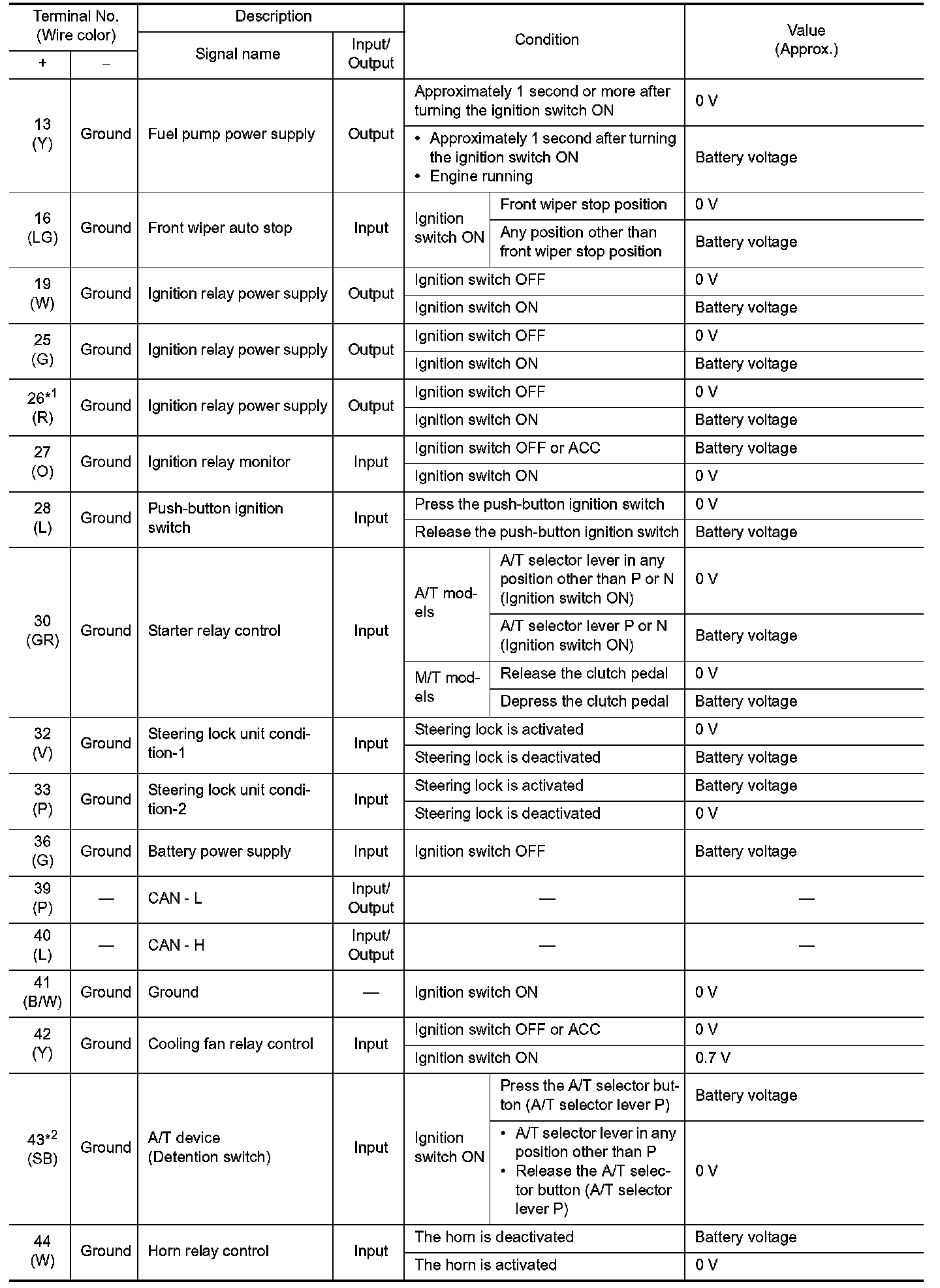

Terminal And Reference Values (Part 2):

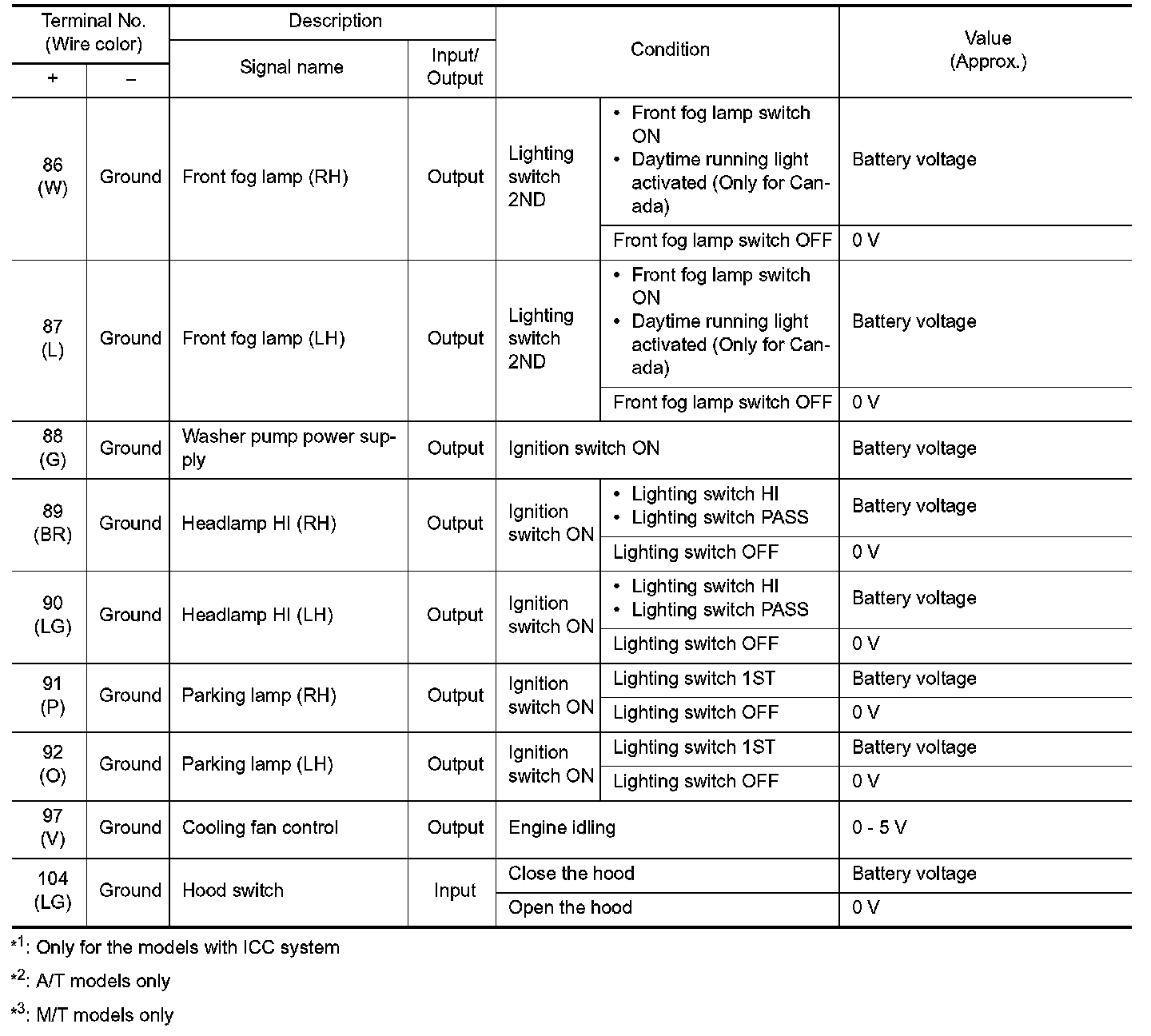

Terminal And Reference Values (Part 3):
Terminal And Reference Values (Part 4):
Terminal And Reference Values (Part 5):
