Cellular Phone: Service and Repair

TEL ADAPTER UNIT

Exploded View

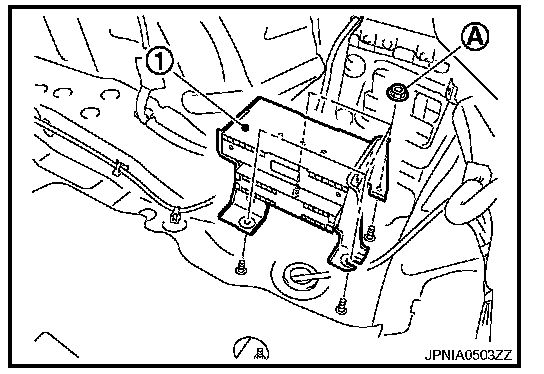

AV-363 Exploded View:

Removal and Installation

REMOVAL
1. Remove trunk floor spacer RH.




2. Remove nuts (A) from the trunk room RH, and remove TEL adapter unit and satellite radio tuner (1) from trunk room side.

INSTALLATION
Install in the reverse order of removal.
