Display Unit

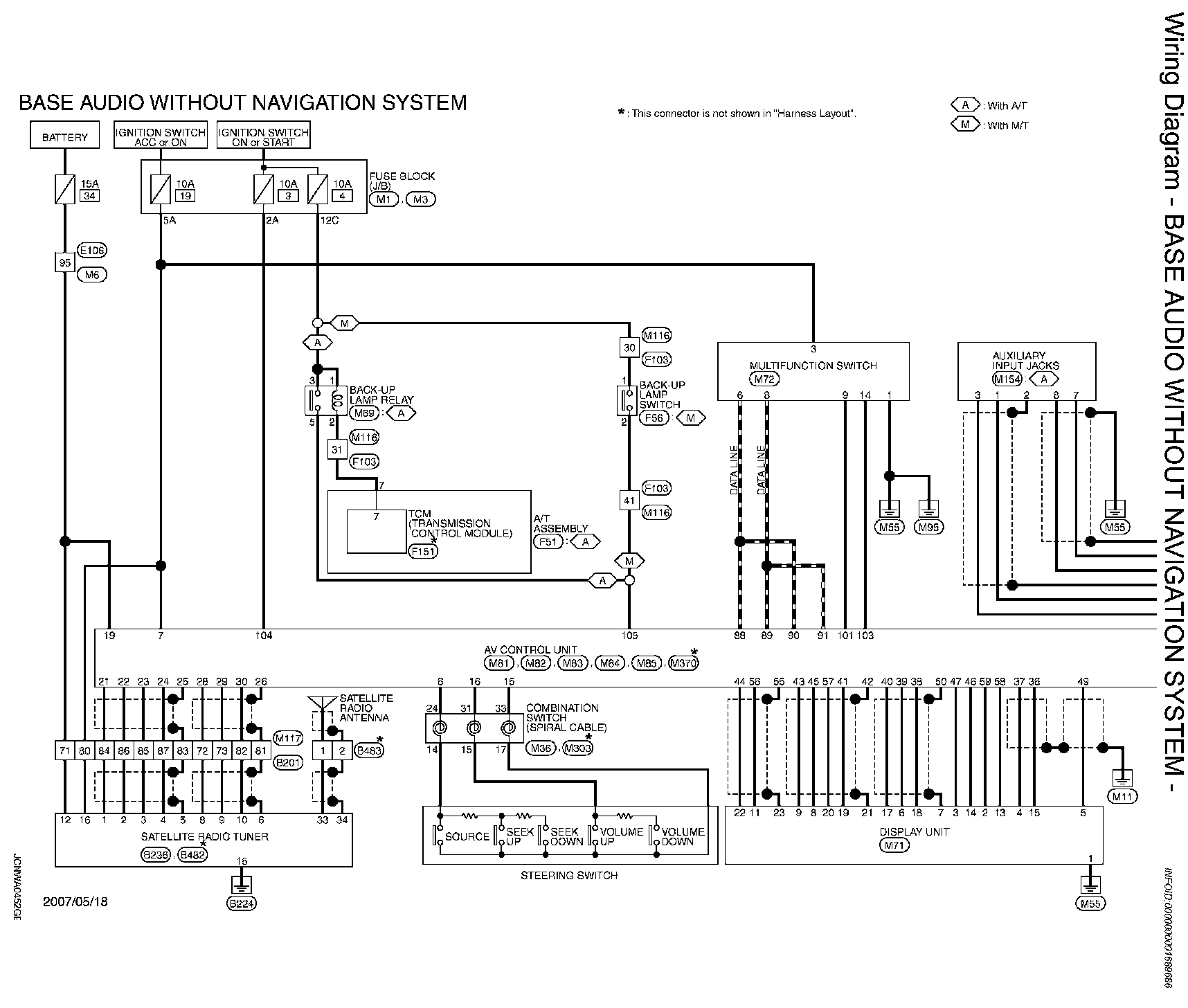

Wiring Diagram - Base Audio Without Navigation System - Part 1:

Wiring Diagram - Base Audio Without Navigation System - Part 2:

Wiring Diagram - Base Audio Without Navigation System - Part 3:

Wiring Diagram - Base Audio Without Navigation System - Part 4:

Wiring Diagram - Base Audio Without Navigation System - Part 5:

Wiring Diagram - Base Audio Without Navigation System - Part 6:

Wiring Diagram - Base Audio Without Navigation System - Part 7:

Wiring Diagram - Base Audio Without Navigation System - Part 8:

Wiring Diagram - Base Audio Without Navigation System - Part 9:

Wiring Diagram - Base Audio Without Navigation System - Part 10:
