AUX Image Signal Circuit

AUX IMAGE SIGNAL CIRCUIT

Description
- Transmits the image signal of AUX device from auxiliary input jacks to AV control unit.
- AV control unit transmits the image signal that is inputted to the display unit.

Diagnosis Procedure

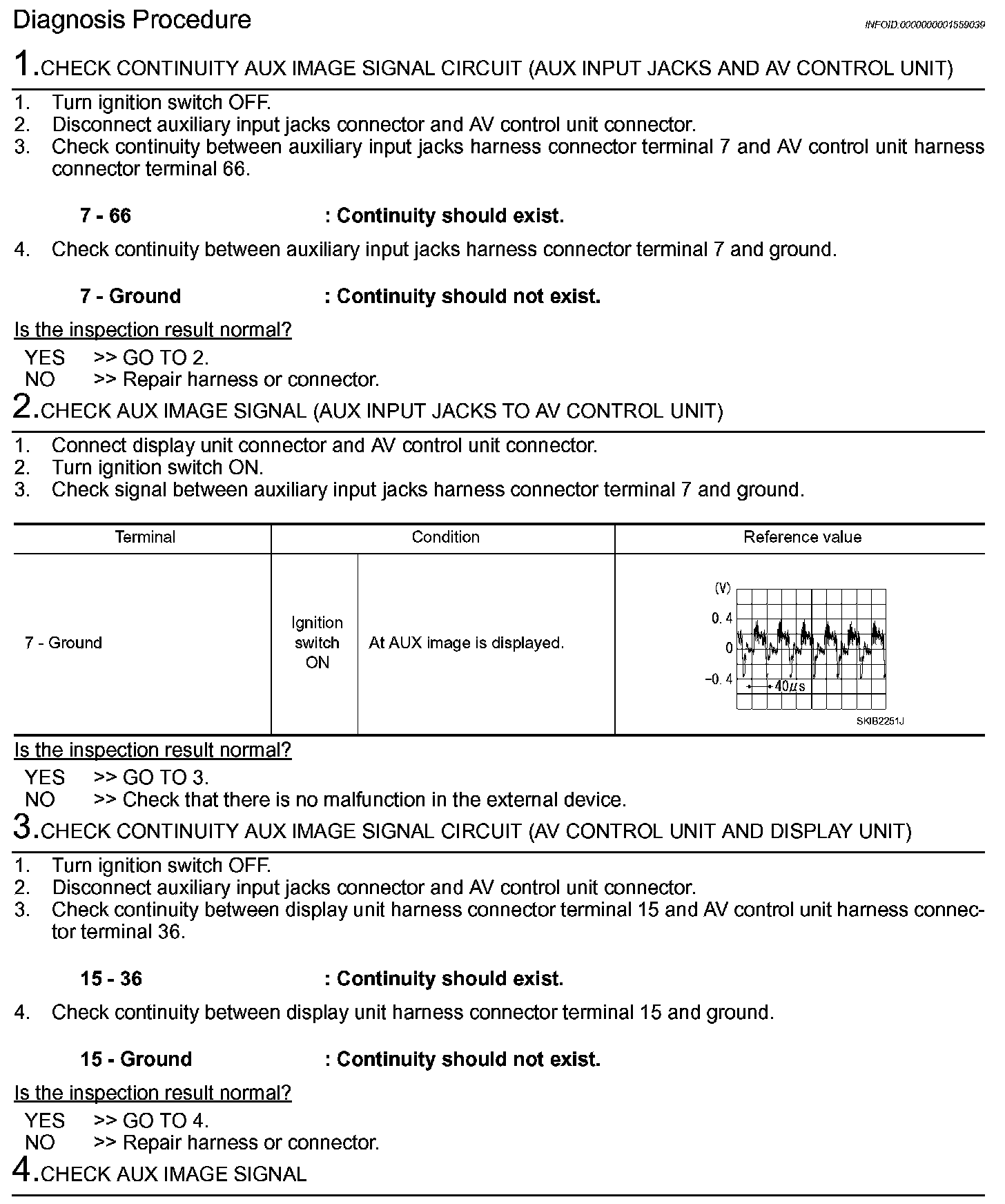

Step 1-4:




Step 4 (Continued):
