Front Fender: Service and Repair

FRONT FENDER

Exploded View

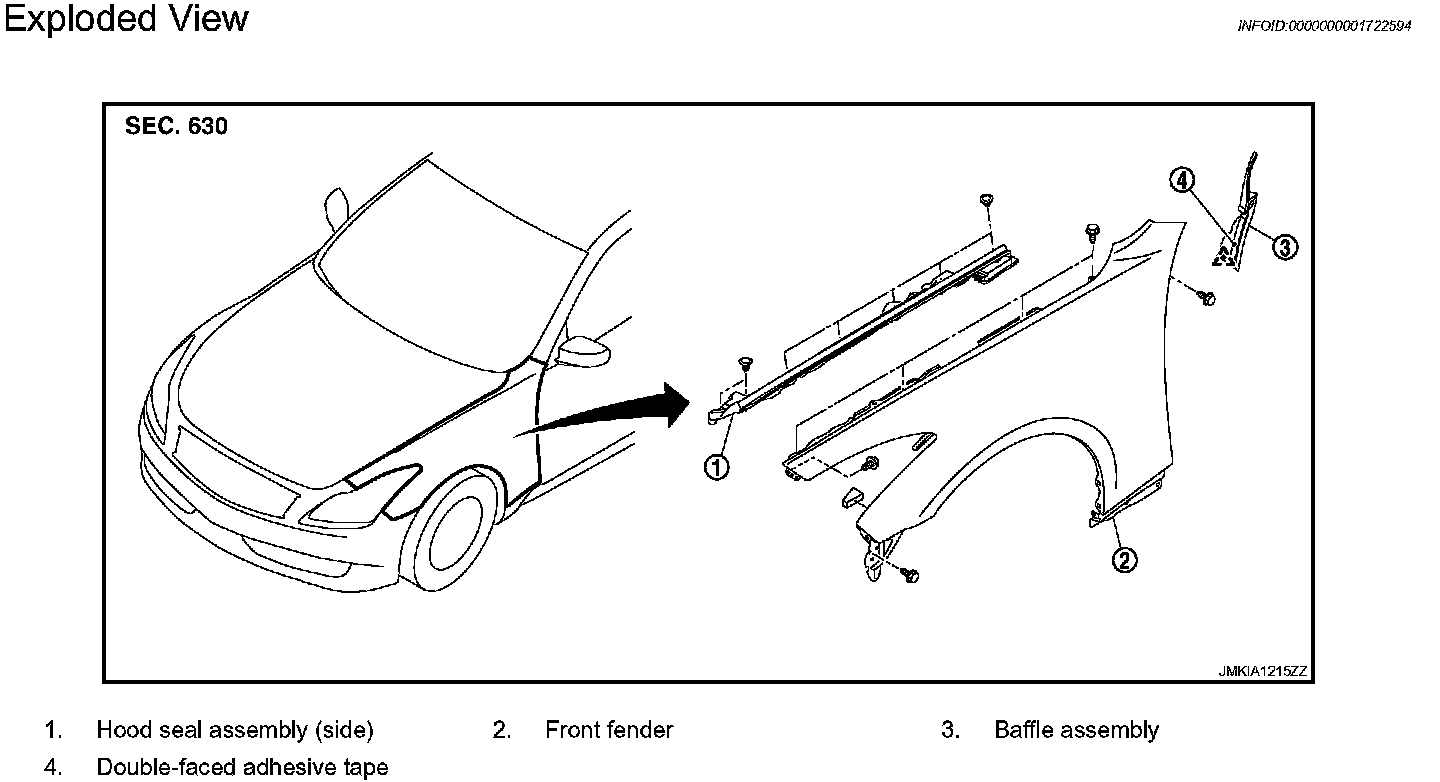

DLK-217 Exploded View:

Removal and Installation

REMOVAL
1. Remove the front bumper fascia.
2. Remove the hood seal assembly (side).
3. Remove the front combination lamp.
4. Remove the fender protector.
5. Remove the center mudguard.
6. Remove the mounting bolt and remove the front fender.

CAUTION: While removing use a shop cloth to protect body from damaging.

INSTALLATION
Install in the reverse order of removal.

CAUTION:
- After installing, apply touch-up paint (the body color) onto the head of the front fender mounting bolts.
- After installing, check front fender adjustment.
