Grille: Service and Repair

FRONT GRILLE

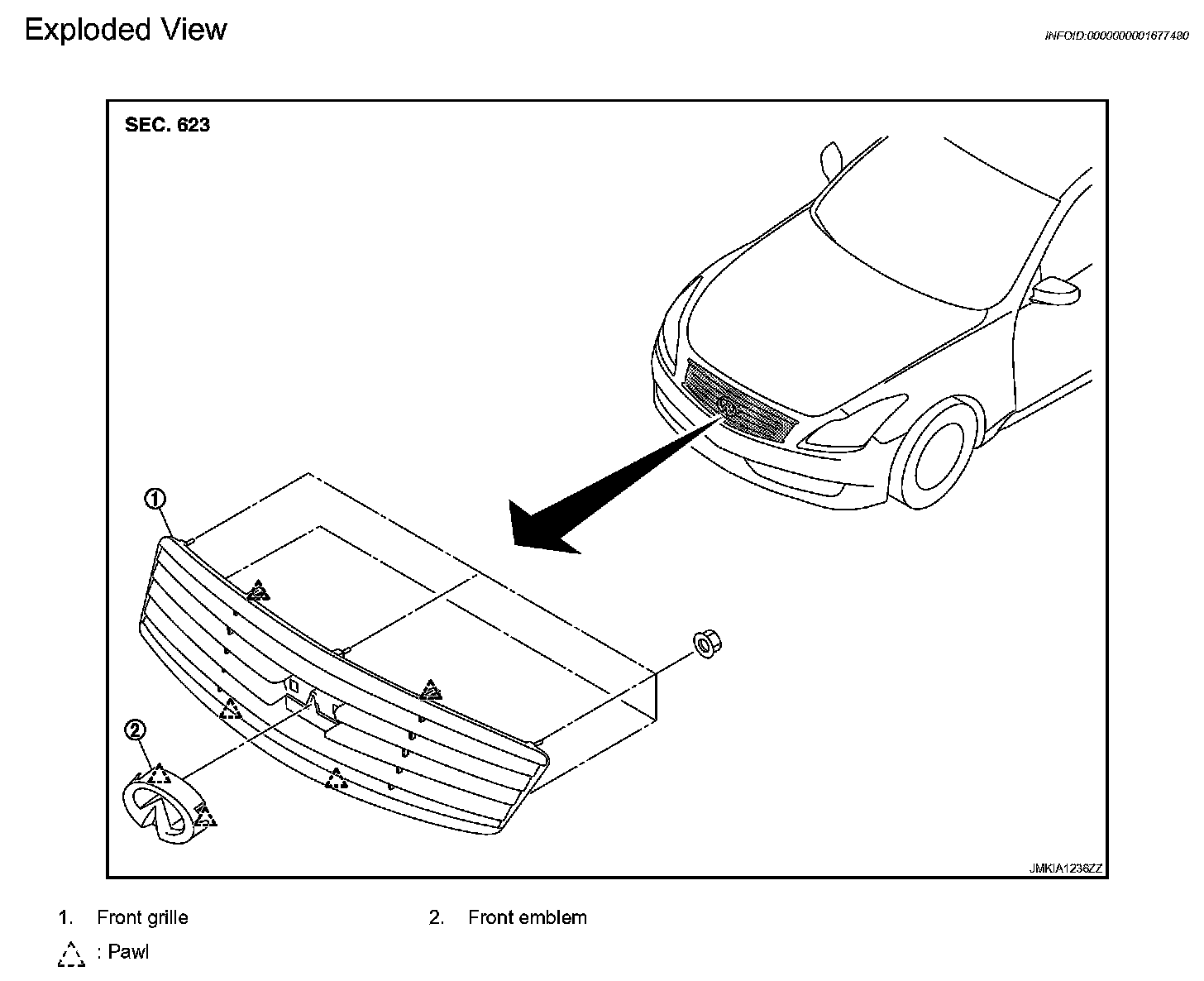

Exploded View

EXT-19 Exploded View:

Removal and Installation

REMOVAL

CAUTION: Apply protection tape around outer circumference of front grille (bumper fascia side).

1. Fully open hood assembly.
2. Remove reservoir tank.
3. Remove radiator core support ornament.




4. Remove front grille mounting nuts (A).

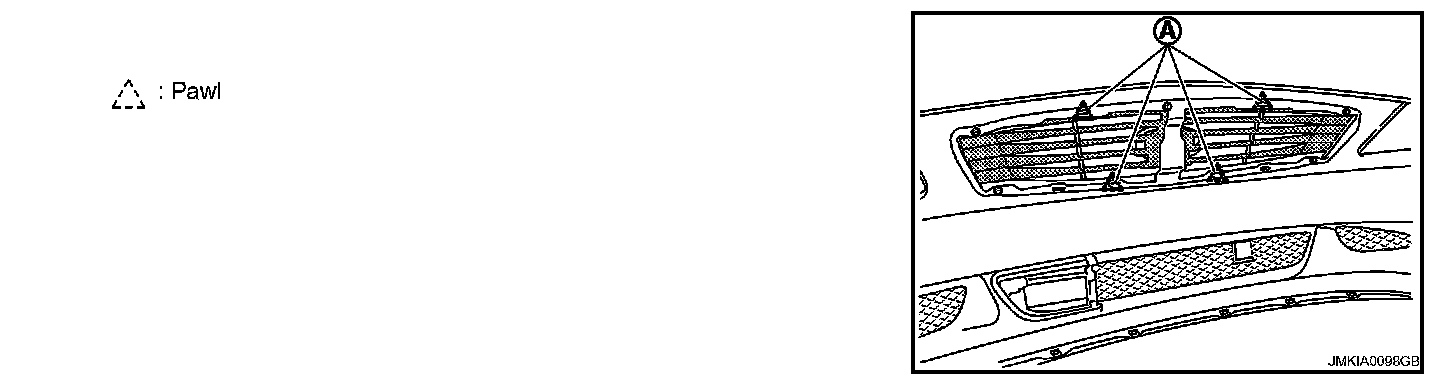

5. Disengage pawls (A) of fixing front grille.
6. Pull front grille out toward vehicle front.
7. Remove the following parts after removing front grille.
Front emblem

INSTALLATION
Install in the reverse order of removal.
