Passenger Side

PASSENGER SIDE

PASSENGER SIDE : Description
Transmits door lock/unlock operation to BCM.

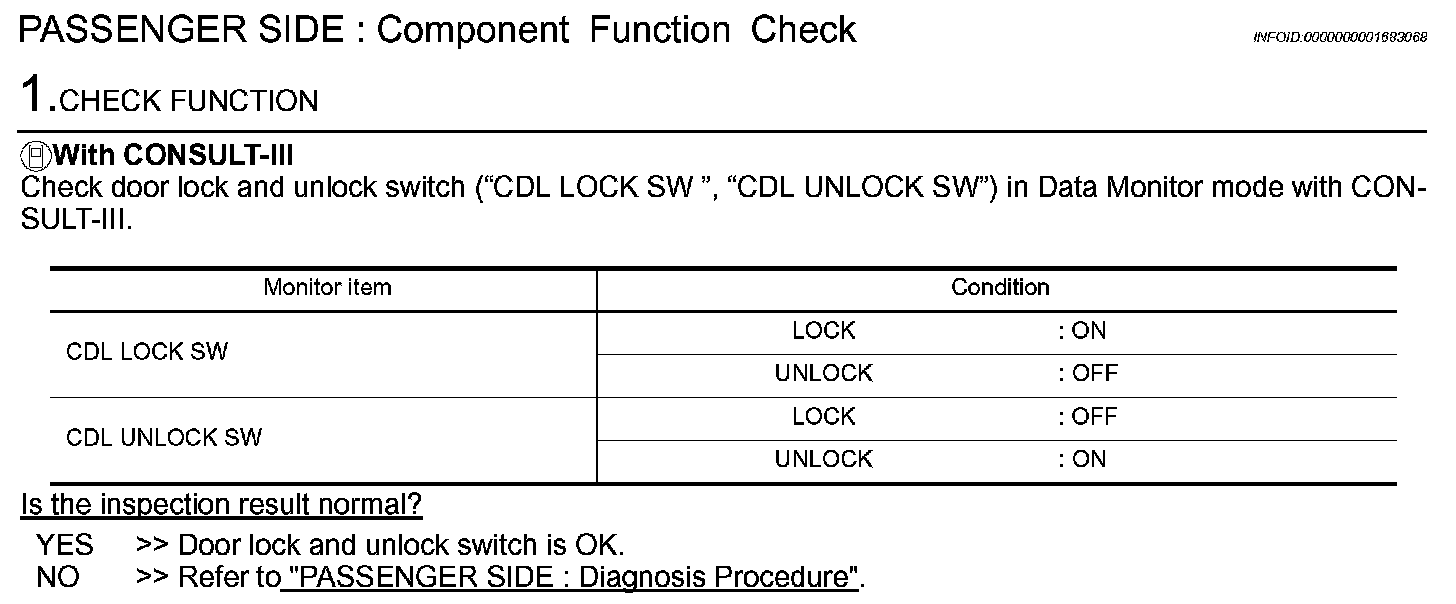

PASSENGER SIDE : Component Function Check

Step 1:

PASSENGER SIDE : Diagnosis Procedure

Step 1:

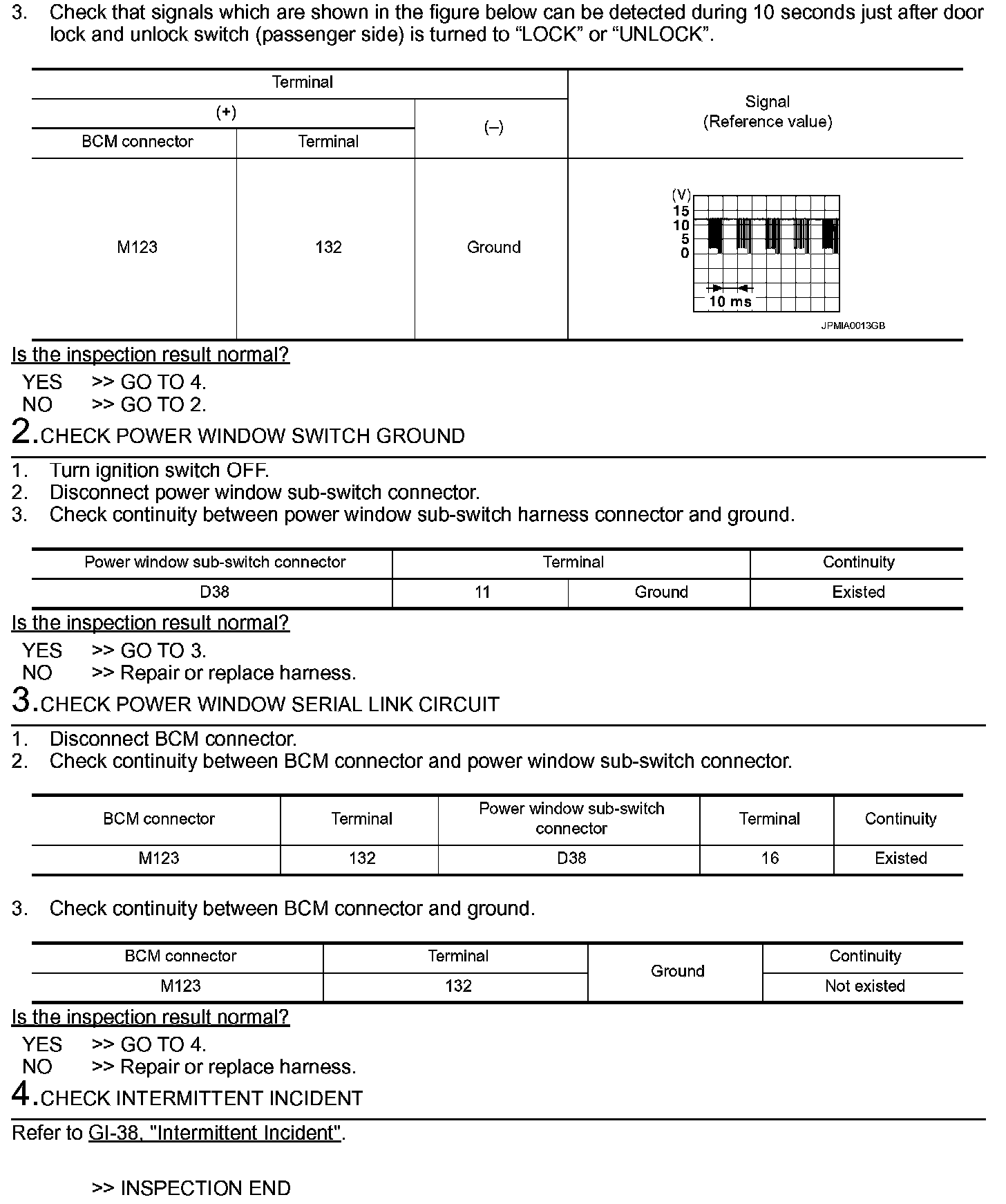

Step 1 (Continued)-4:

PASSENGER SIDE : Special Repair Requirement
Refer to PWC-4, "ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT : Special Repair Requirement". Additional Service When Replacing Control Unit
