Key Slot
KEY SLOTDescription
Detects whether Intelligent Key is inserted.
Immobilizer antenna amp checks Intelligent Key transponder.

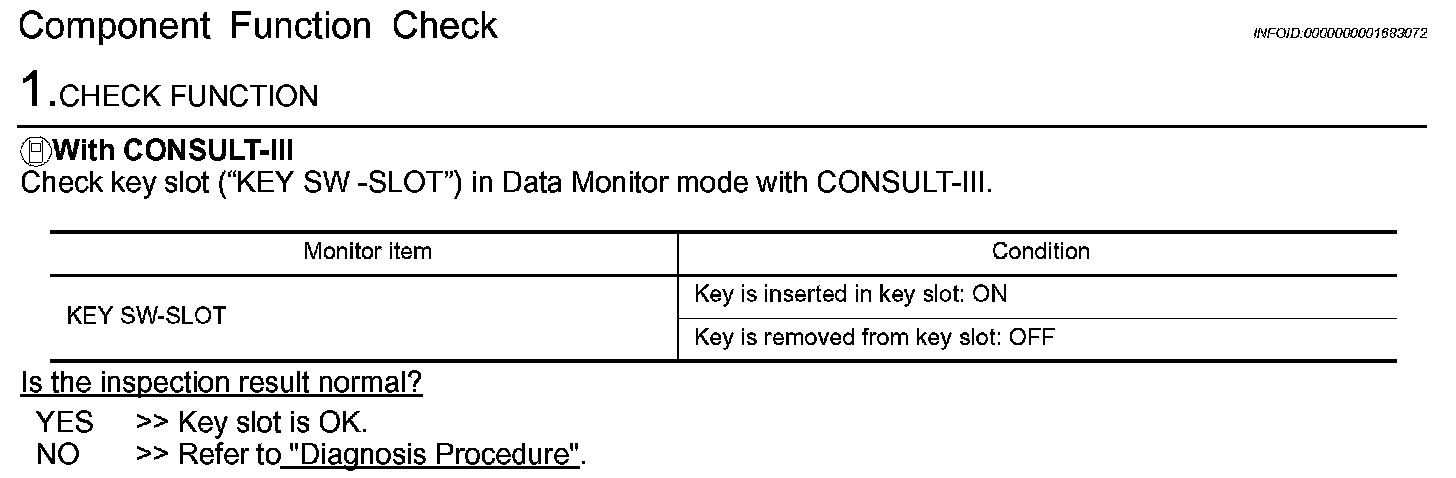

Component Function Check
Step 1:

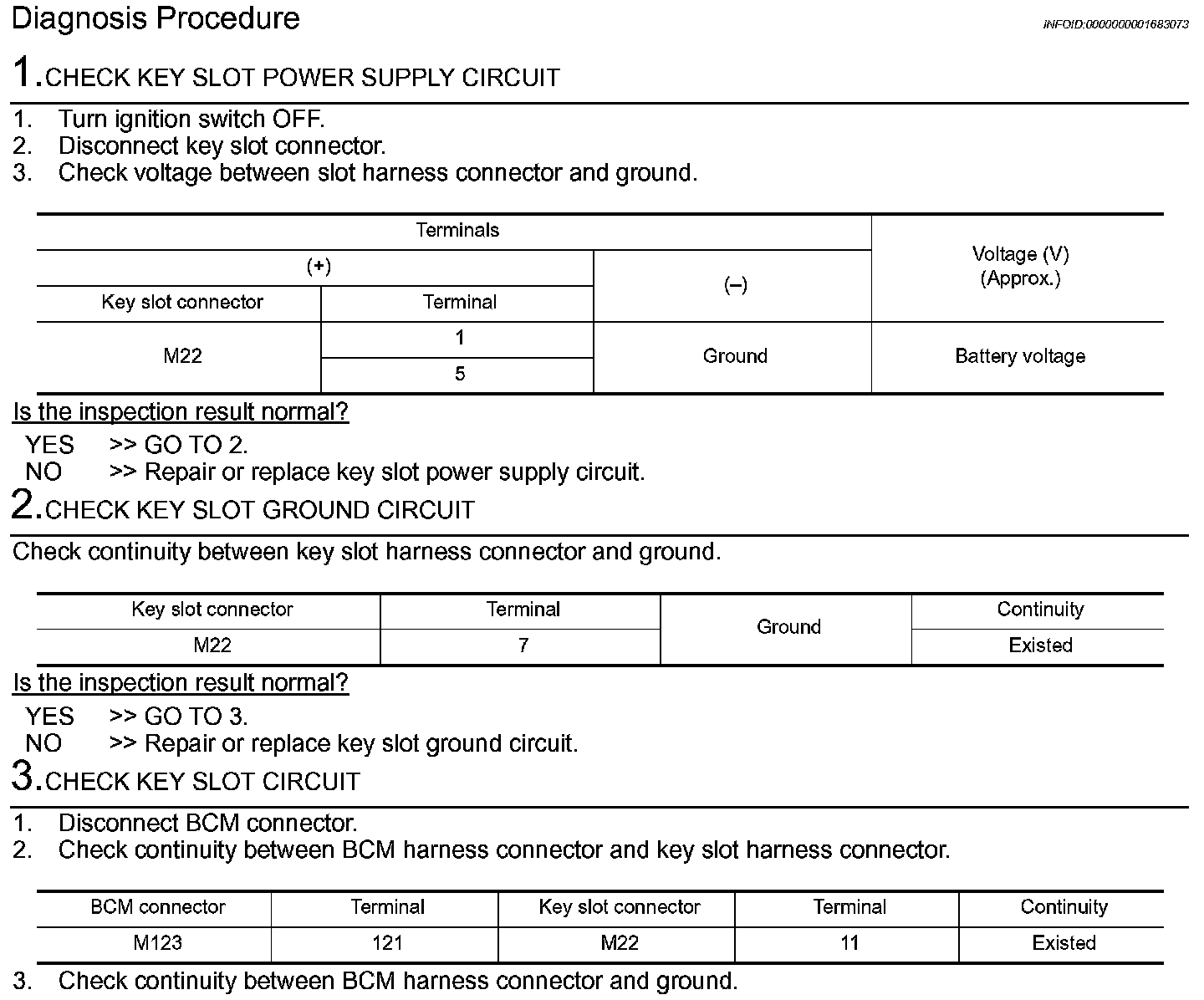

Diagnosis Procedure
Step 1-3:
Step 3 (Continued)-5:

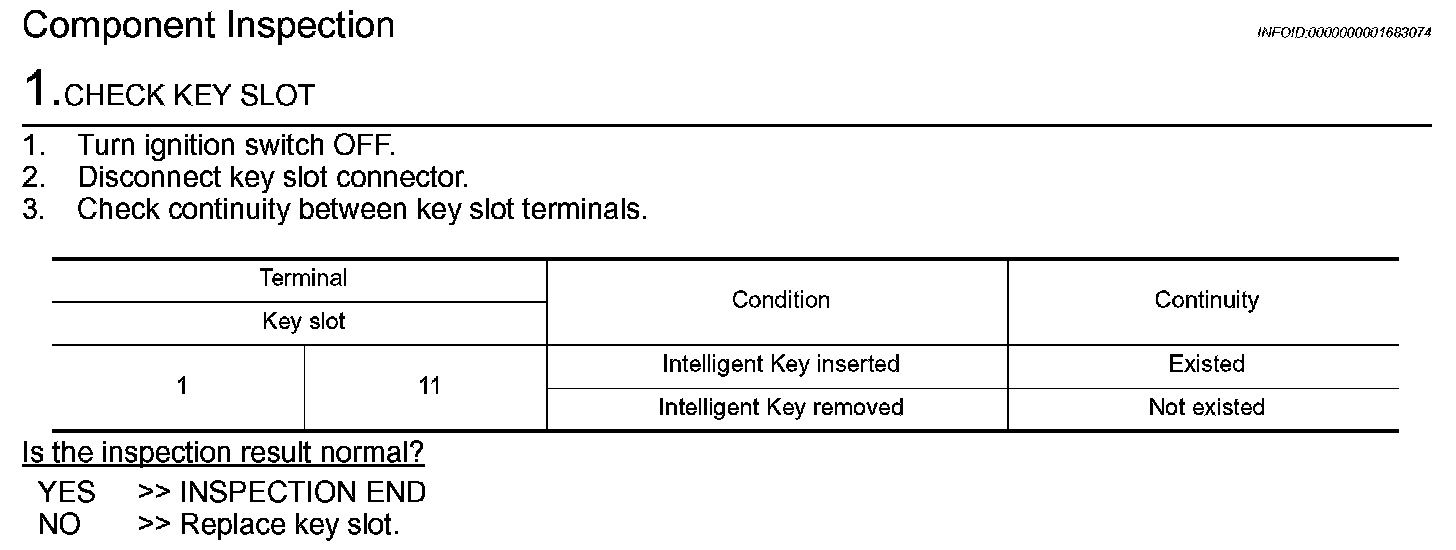

Component Inspection
Step 1:
Description
Detects whether Intelligent Key is inserted.
Immobilizer antenna amp checks Intelligent Key transponder.
Component Function Check
Diagnosis Procedure
Component Inspection
