Trunk Room Lamp Switch

TRUNK ROOM LAMP SWITCH

Description
Detects trunk open/close condition.

Component Function Check

Step 1:

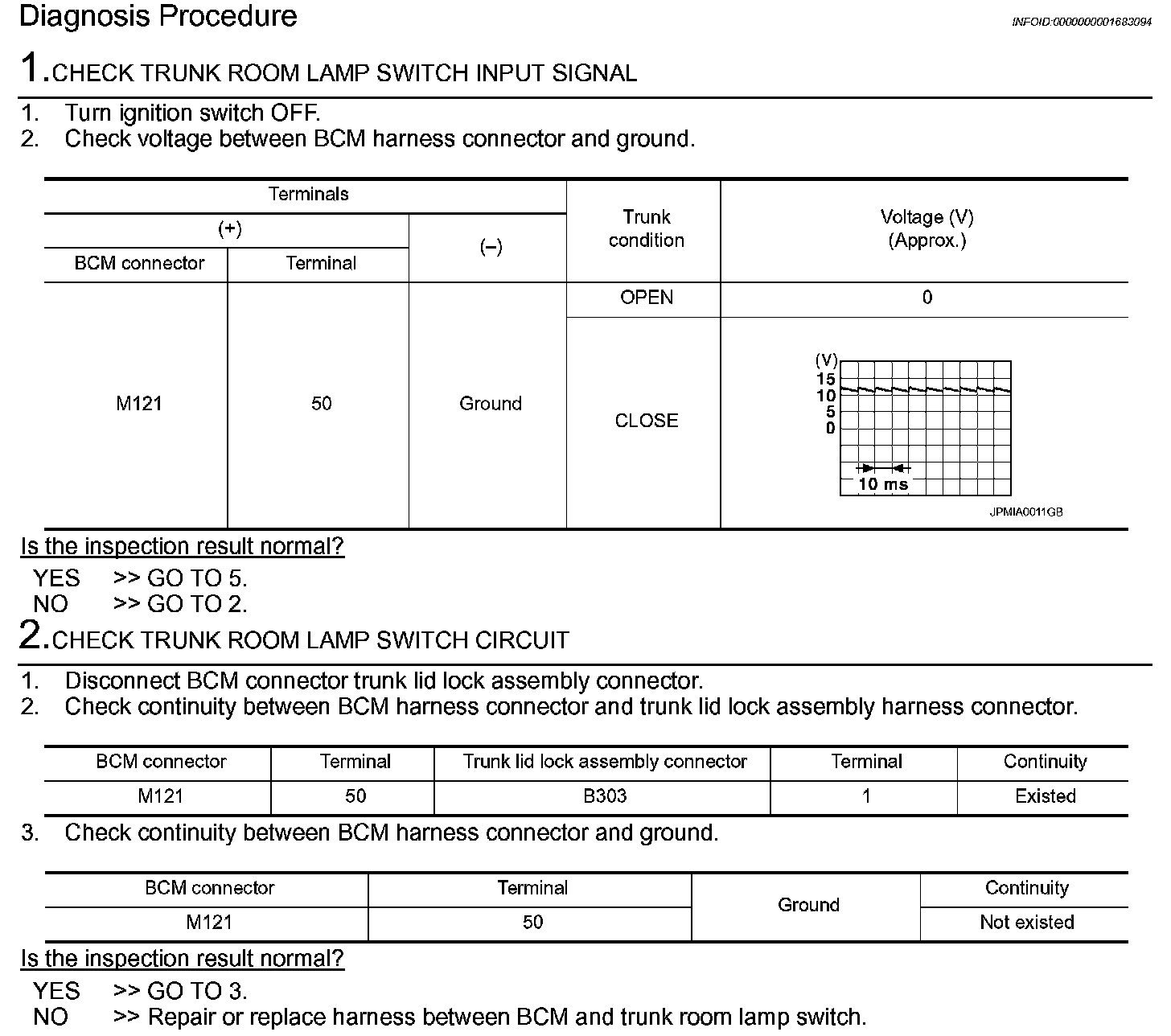

Diagnosis Procedure

Step 1-2:

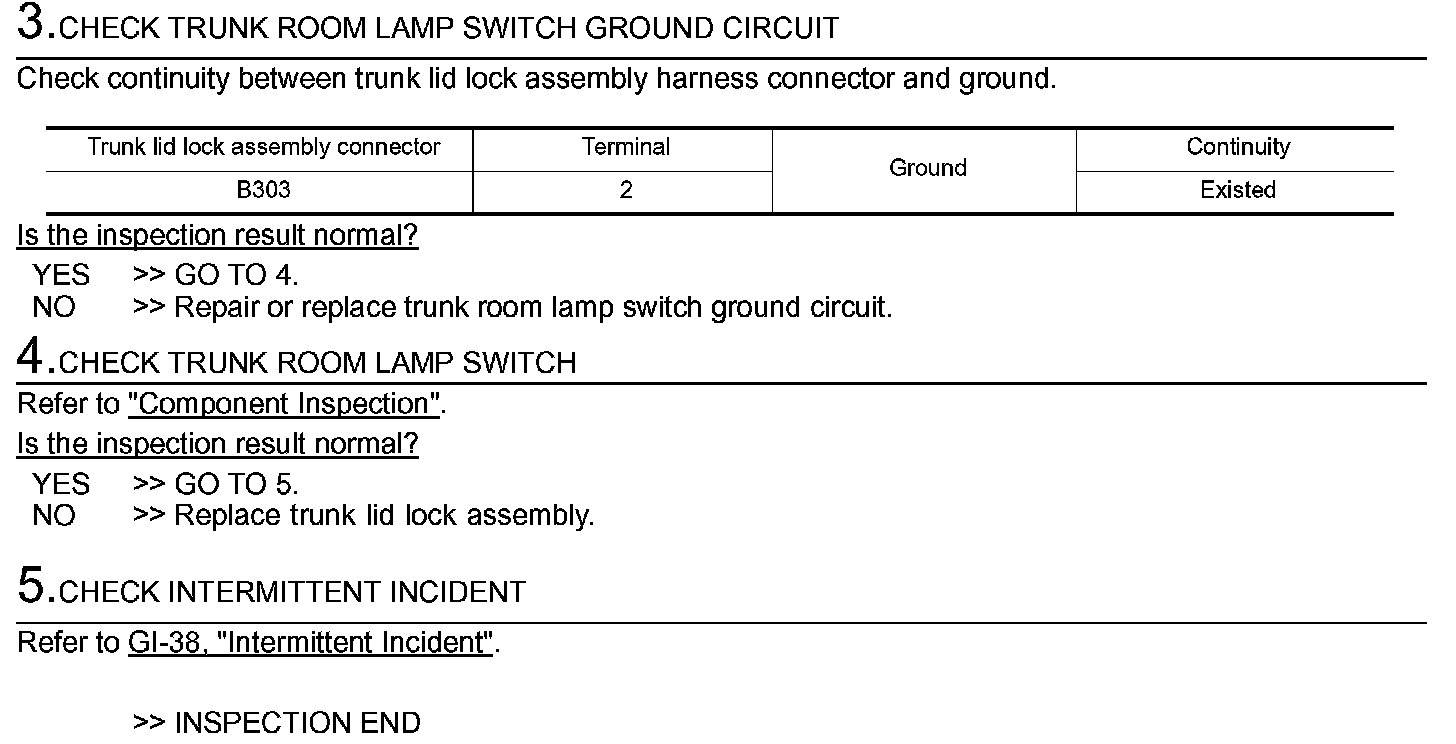

Step 3-5:

Component Inspection

Step 1:
