Buzzer Reminder Operation Does Not Work When Operating With Door Request Switch
BUZZER REMINDER OPERATION DOES NOT WORK WHEN OPERATING WITH DOOR REQUEST SWITCHDescription
NOTE:
- Before performing the diagnosis in the following table, check "Work Flow". Refer to DLK-8, "Work Flow". Diagnosis and Repair Workflow
- Check that vehicle is under the condition shown in "Conditions of vehicle" before starting diagnosis, and check each symptom.
CONDITIONS OF VEHICLE (OPERATING CONDITIONS)
- "LOCK/UNLOCK BY I-KEY" is ON when setting on CONSULT-III.
- "ANSWER BACK WITH I-KEY LOCK", "ANSWER BACK WITH I-KEY UNLOCK" and "ANSWER BACK FUNCTION" are ON when setting on CONSULT-III.
- Door lock function is normal.

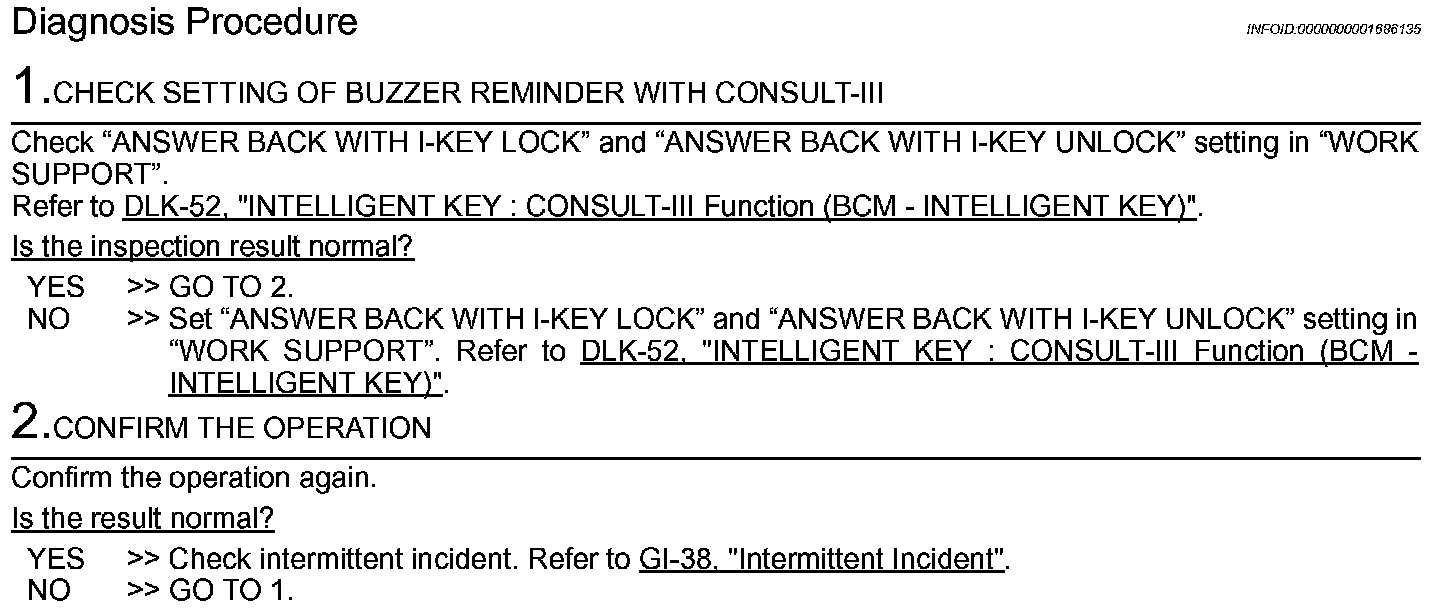

Diagnosis Procedure
