Reclining Motor

RECLINING MOTOR

Description
- The seat reclining motor is installed on the seat back frame.
- The seat reclining motor is activated with the driver seat control unit.
- The seatback is reclined frontward/rearward by changing the rotation direction of reclining motor.

Component Function Check

Step 1:

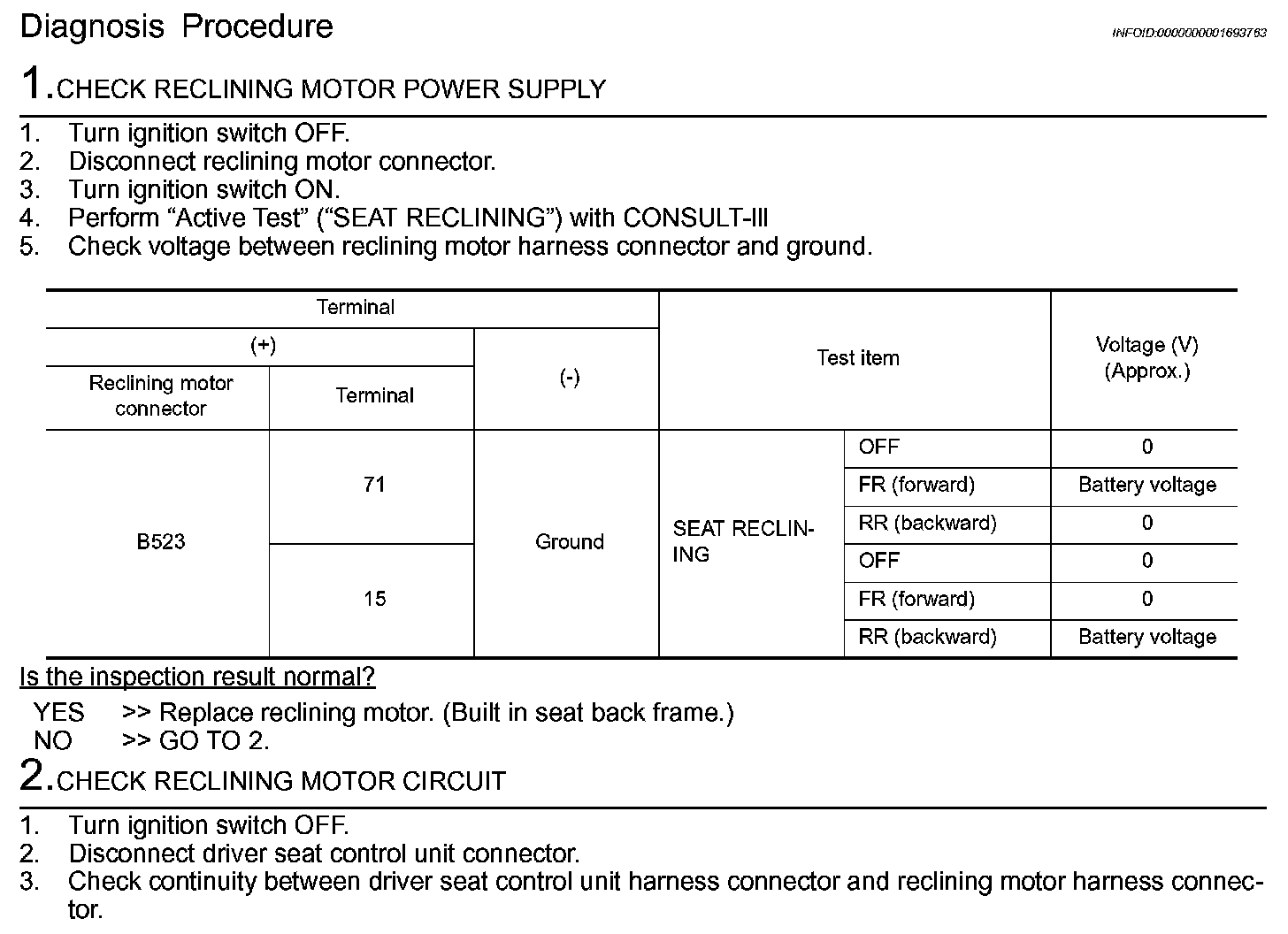

Diagnosis Procedure

Step 1-2:




Step 2 (Continued)-3:
