Sliding Limit Switch
SLIDING LIMIT SWITCHDescription
Sliding limit switch is installed on seat cushion frame. Sliding limit switch detects condition of seat sliding.
Component Function Check
Step 1:

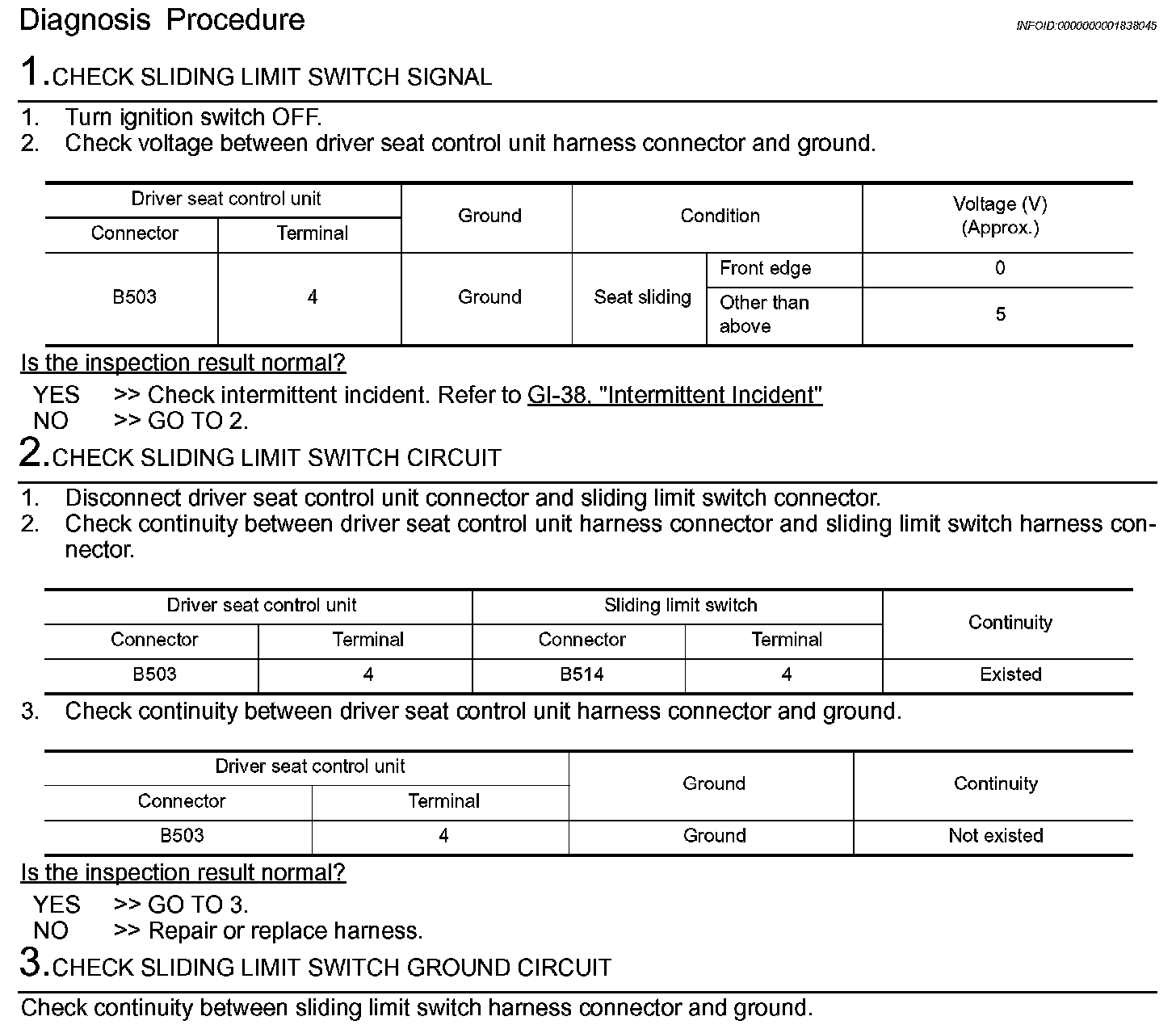

Diagnosis Procedure
Step 1-3:

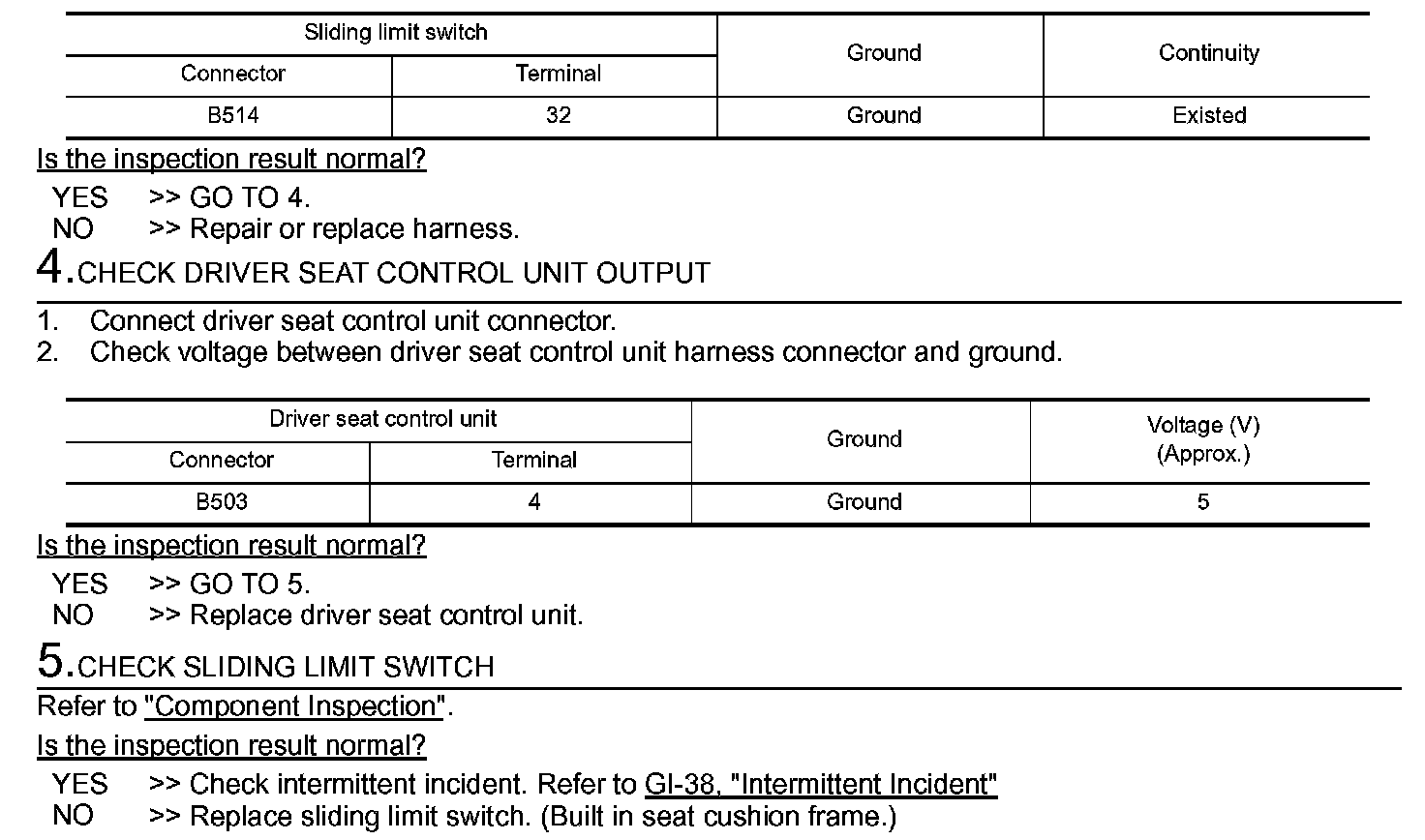

Step 3 (Continued)-5:

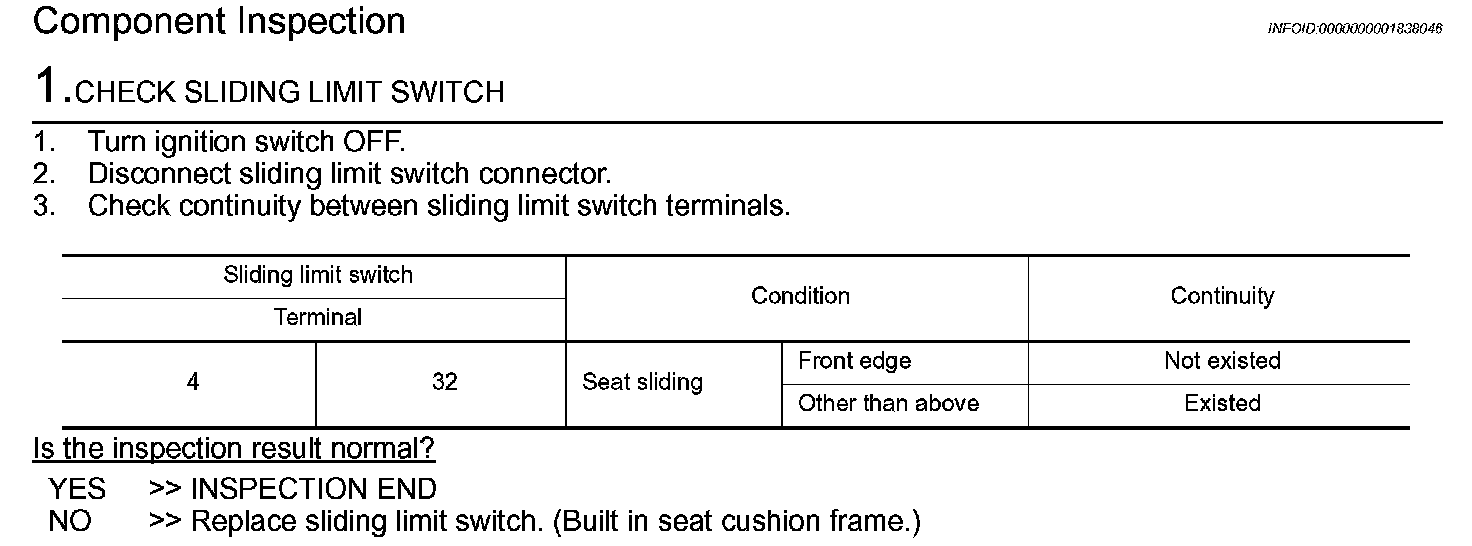

Component Inspection
Step 1:
