Driver Seat Control Unit

TERMINAL LAYOUT

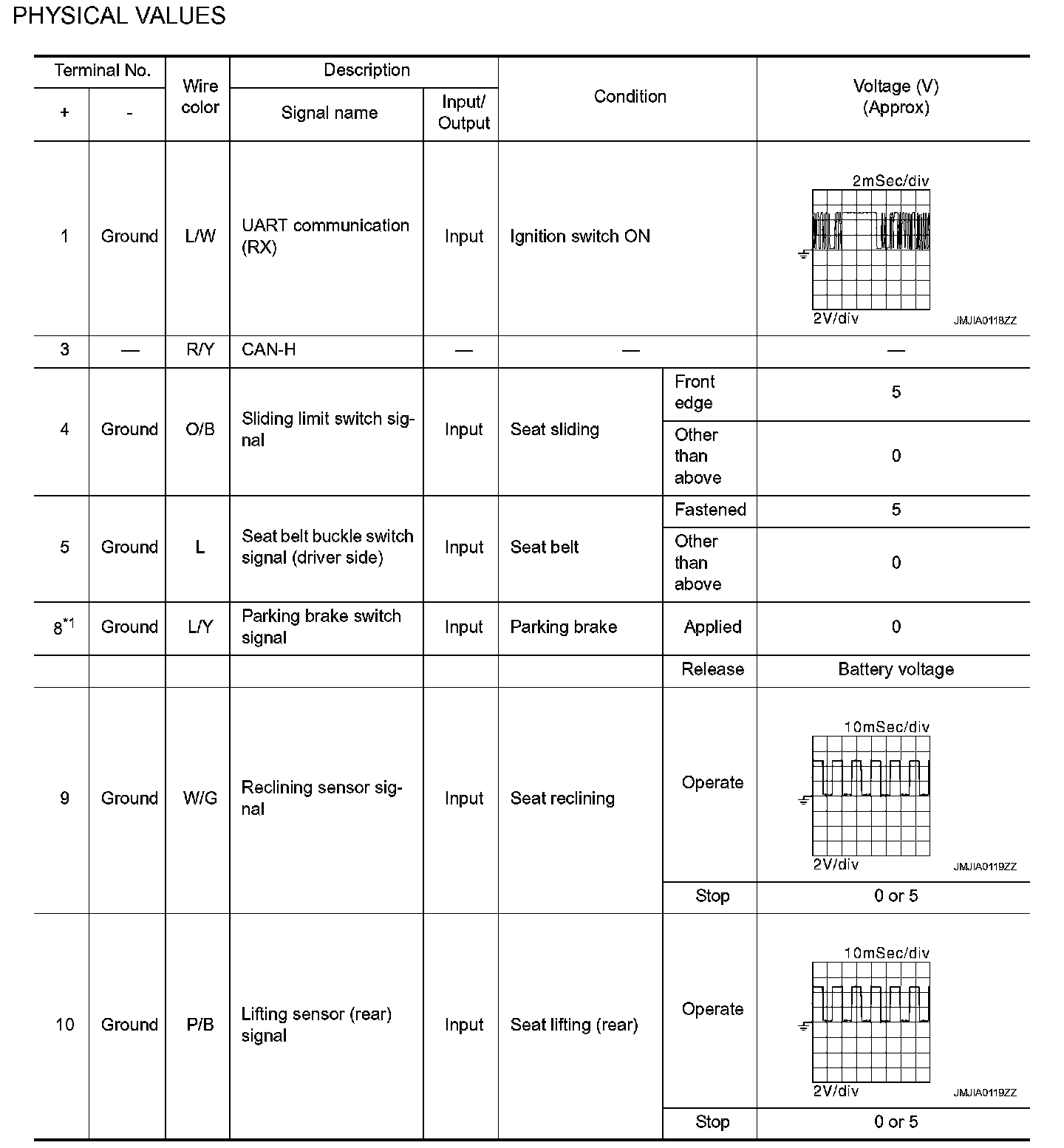

PHYSICAL VALUES

Terminal And Reference Values (Part 1):

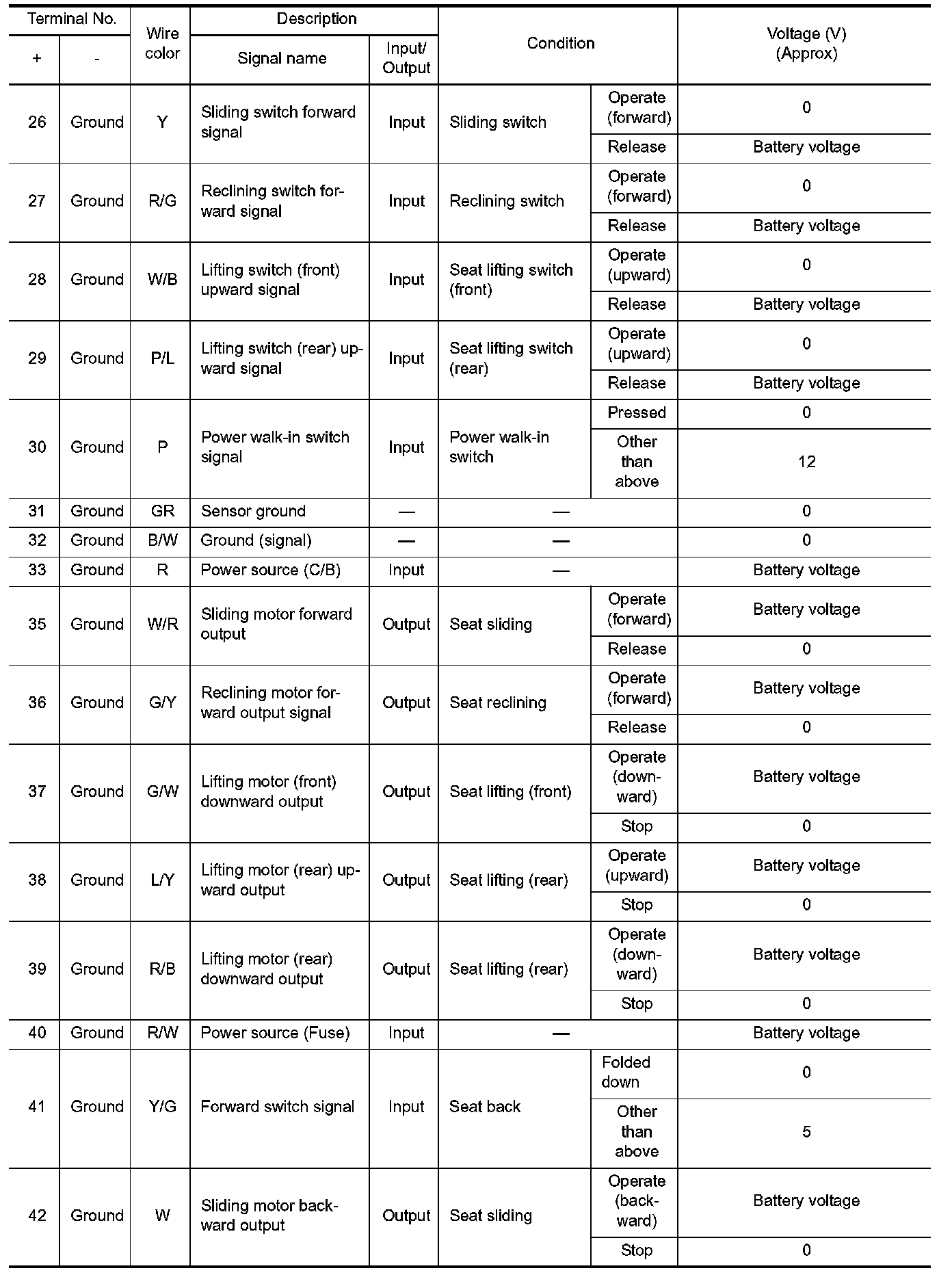

Terminal And Reference Values (Part 2):

Terminal And Reference Values (Part 3):

Terminal And Reference Values (Part 4):
