Driver Seat C/U

DIAGNOSIS SYSTEM (DRIVER SEAT C/U)

Diagnosis Description
The automatic drive positioner system can be checked and diagnosed for component operation with CONSULT- III.

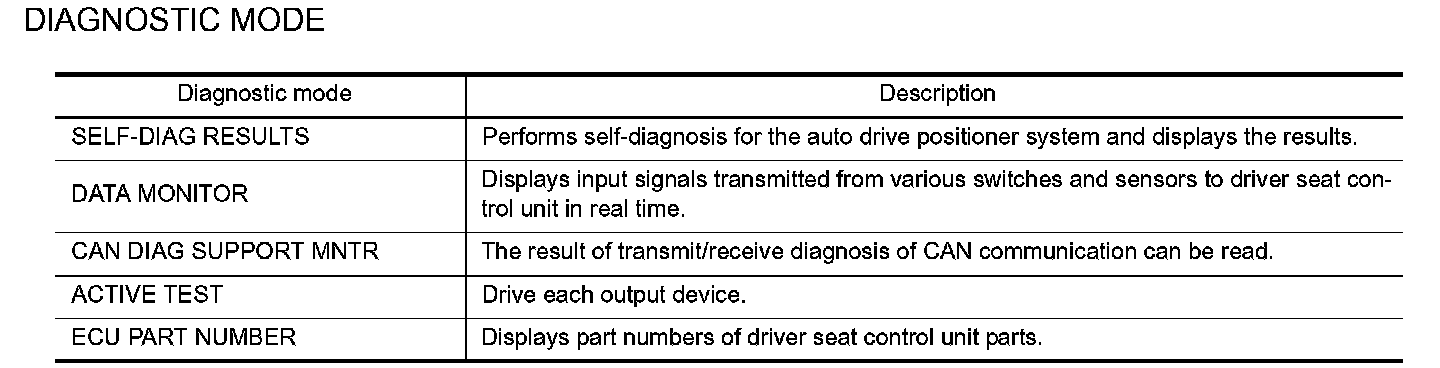

DIAGNOSTIC MODE






CONSULT-III Function

SELF DIAGNOSTIC RESULTS
Refer to ADP-160, "DTC Index".

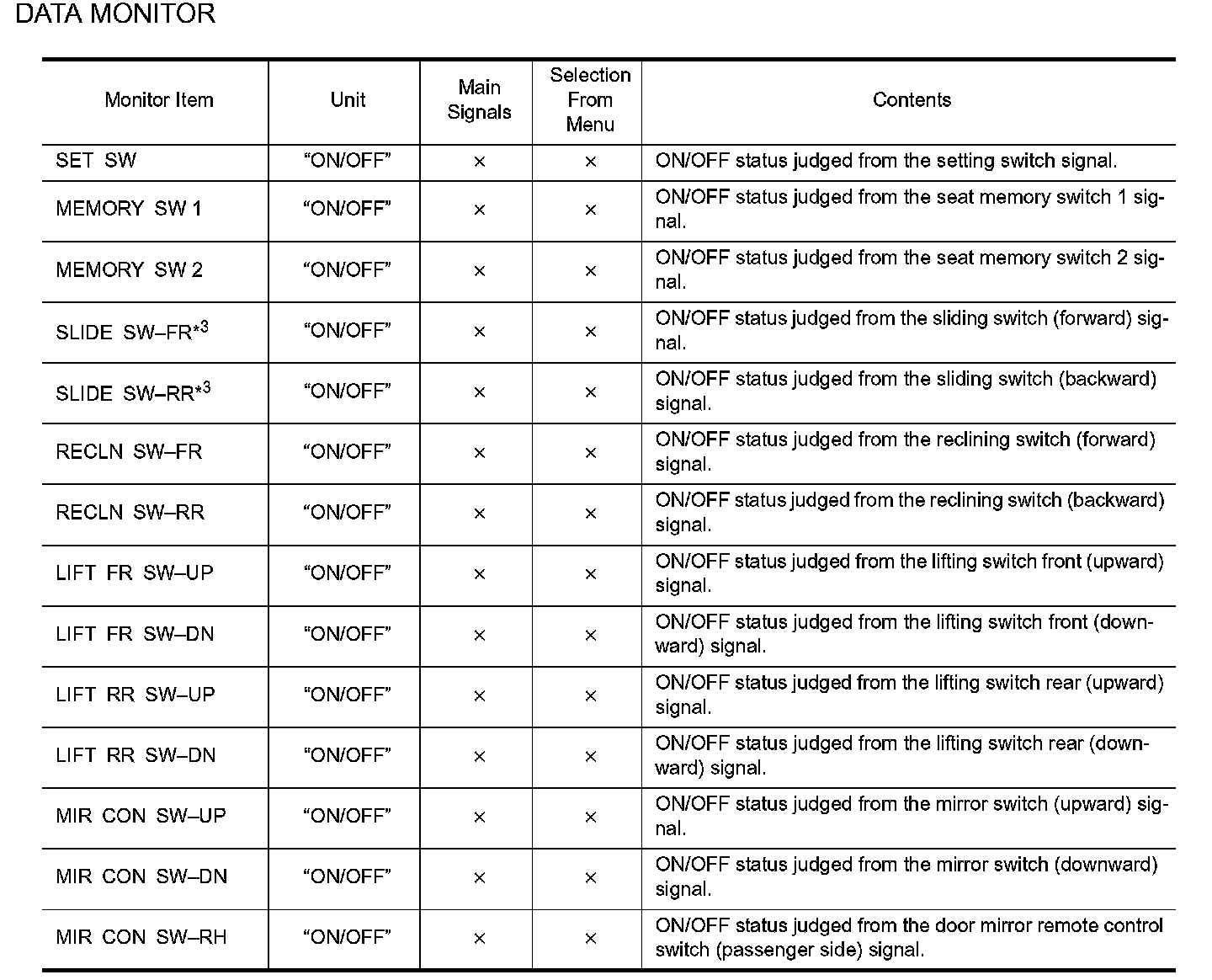

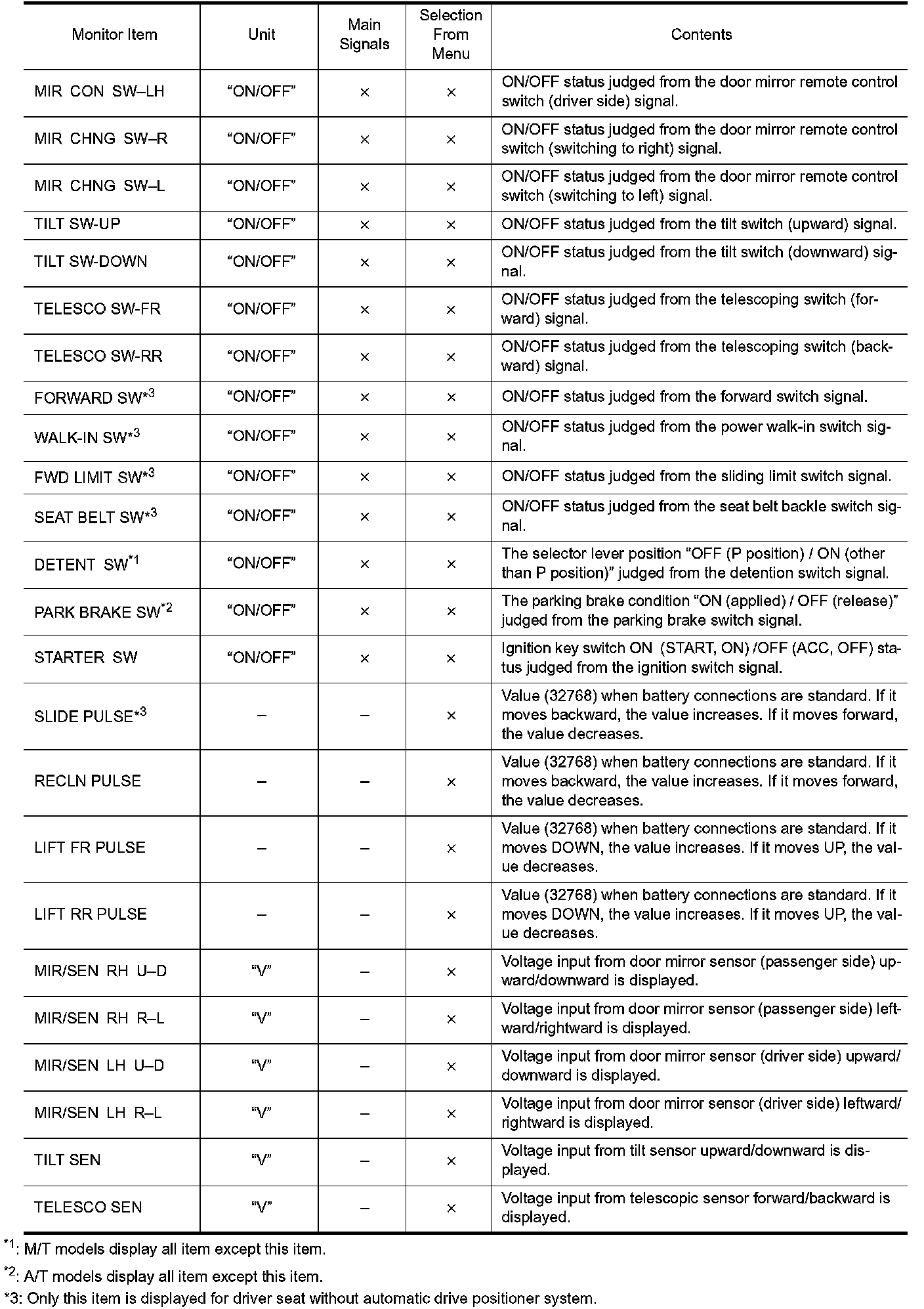

DATA MONITOR

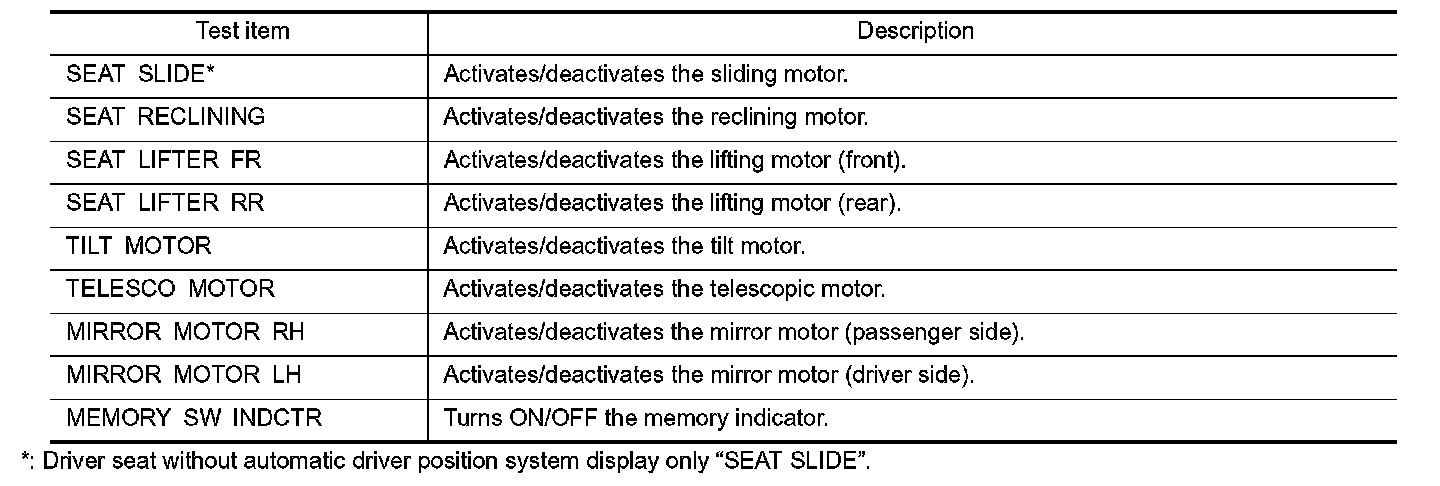

ACTIVE TEST

CAUTION: When driving vehicle, do not perform active test.
