Power Walk-IN Switch

POWER WALK-IN SWITCH

Description
Power walk-in switch is installed on seat back. The operation signal is inputted to driver seat control unit when power walk-in switch is operated.

Component Function Check

Step 1:

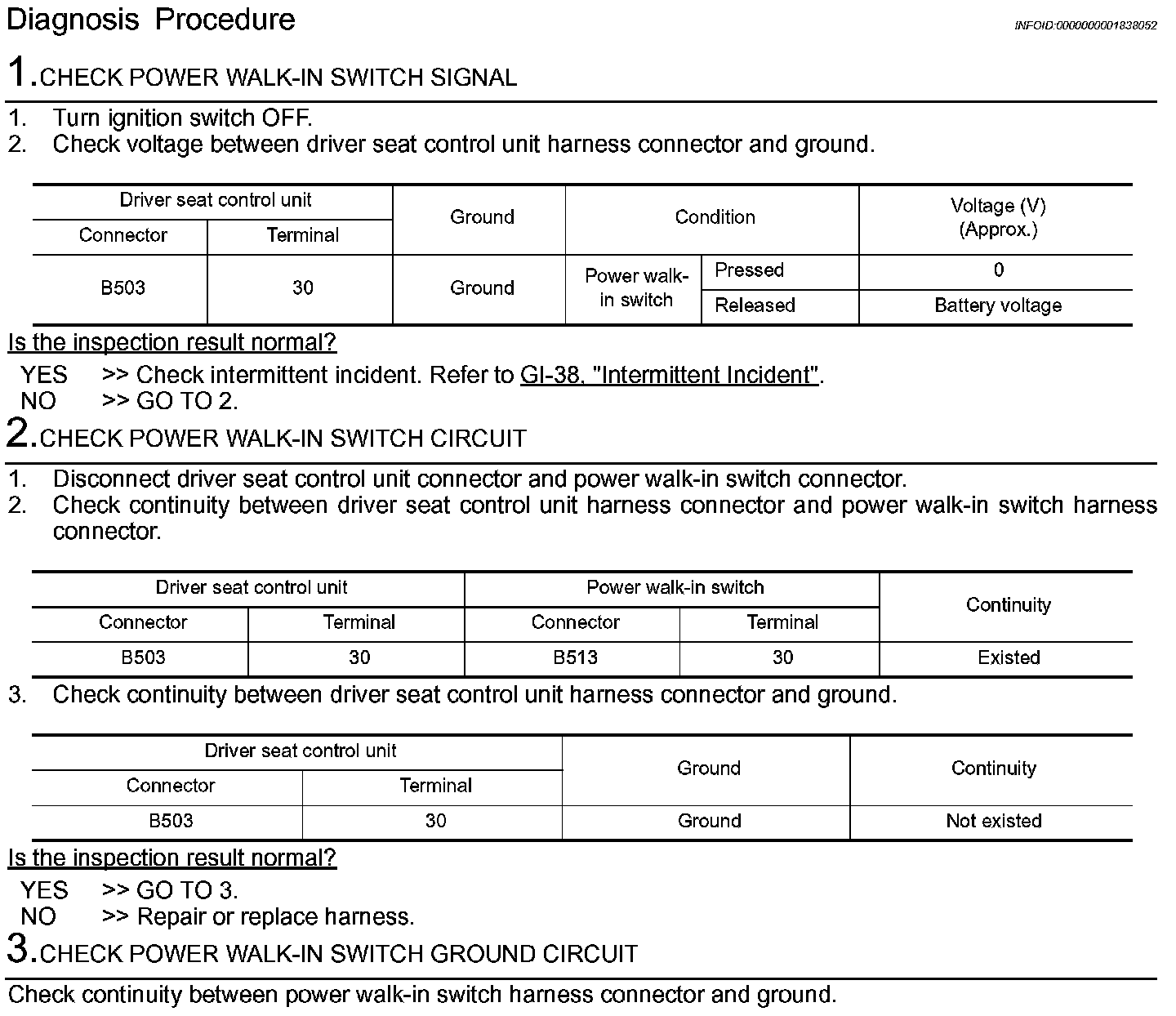

Diagnosis Procedure

Step 1-3:




Step 3 (Continued)-5:






Component Inspection

Step 1:
