Reclining Sensor

RECLINING SENSOR

Description
- The reclining motor is installed on the seatback frame.
- The pulse signal is transmitted to the driver seat control unit when reclining is operated.
- The driver seat control unit counts the pulse and calculates the reclining amount of the seat.

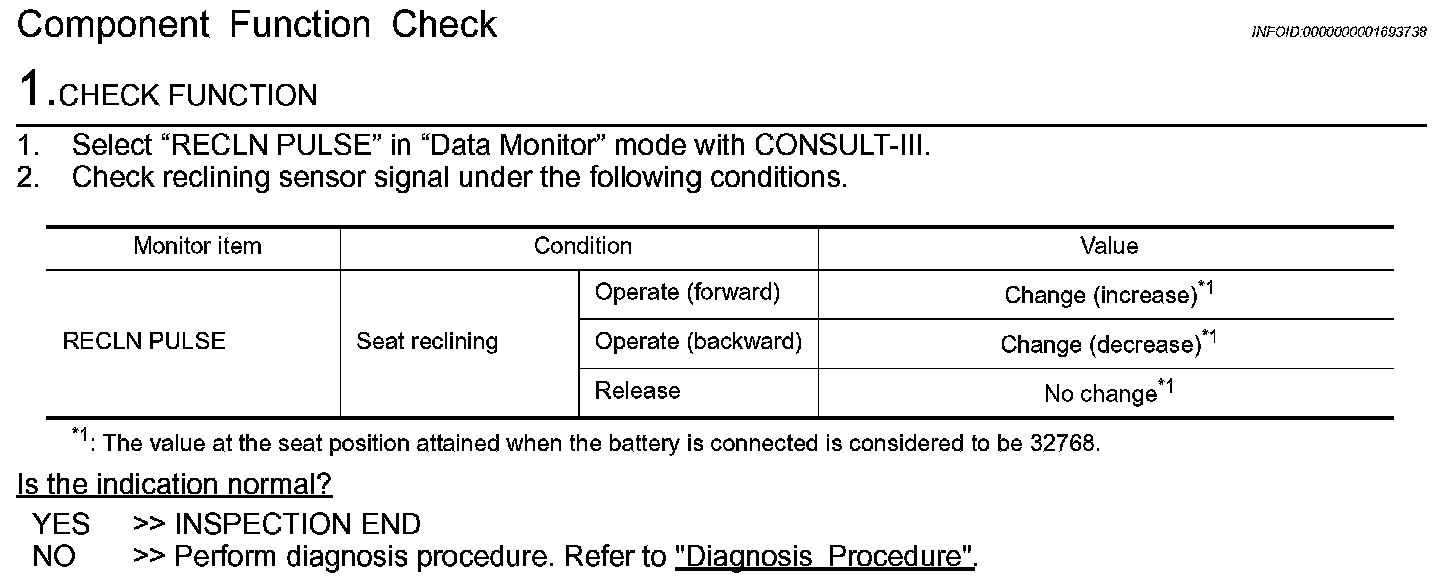

Component Function Check

Step 1:

Diagnosis Procedure

Step 1-2:

Step 2 (Continued)-6:

Step 6 (Continued)-7:
