Seat Belt Buckle Switch

SEAT BELT BUCKLE SWITCH

Description
Seat belt buckle switch is installed in seat belt buckle. Seat belt buckle switch detects condition of seat belt.

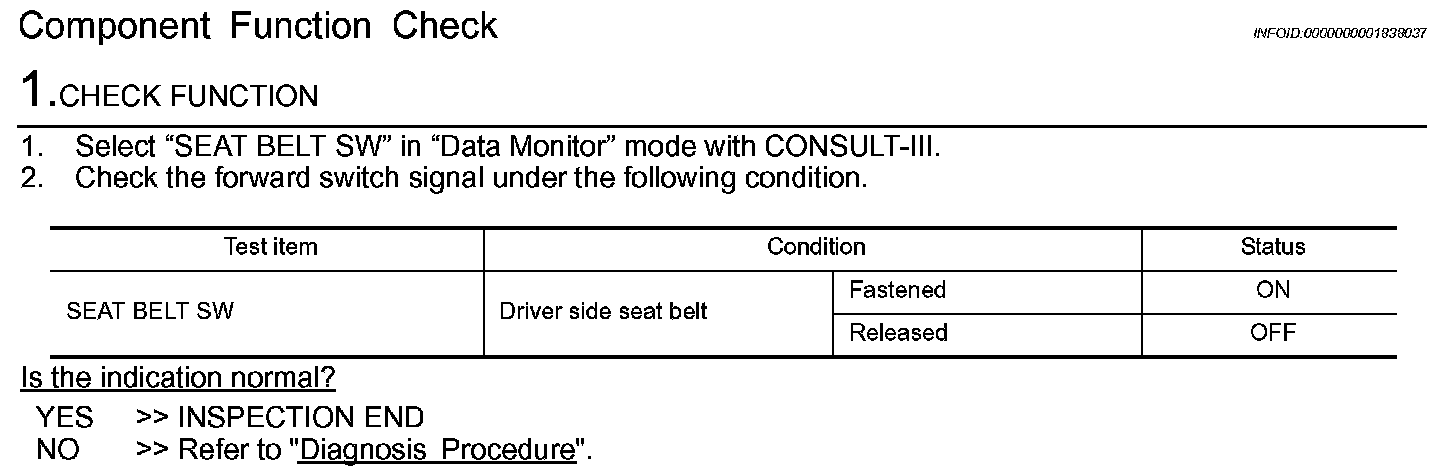

Component Function Check

Step 1:






Diagnosis Procedure

Step 1-3:

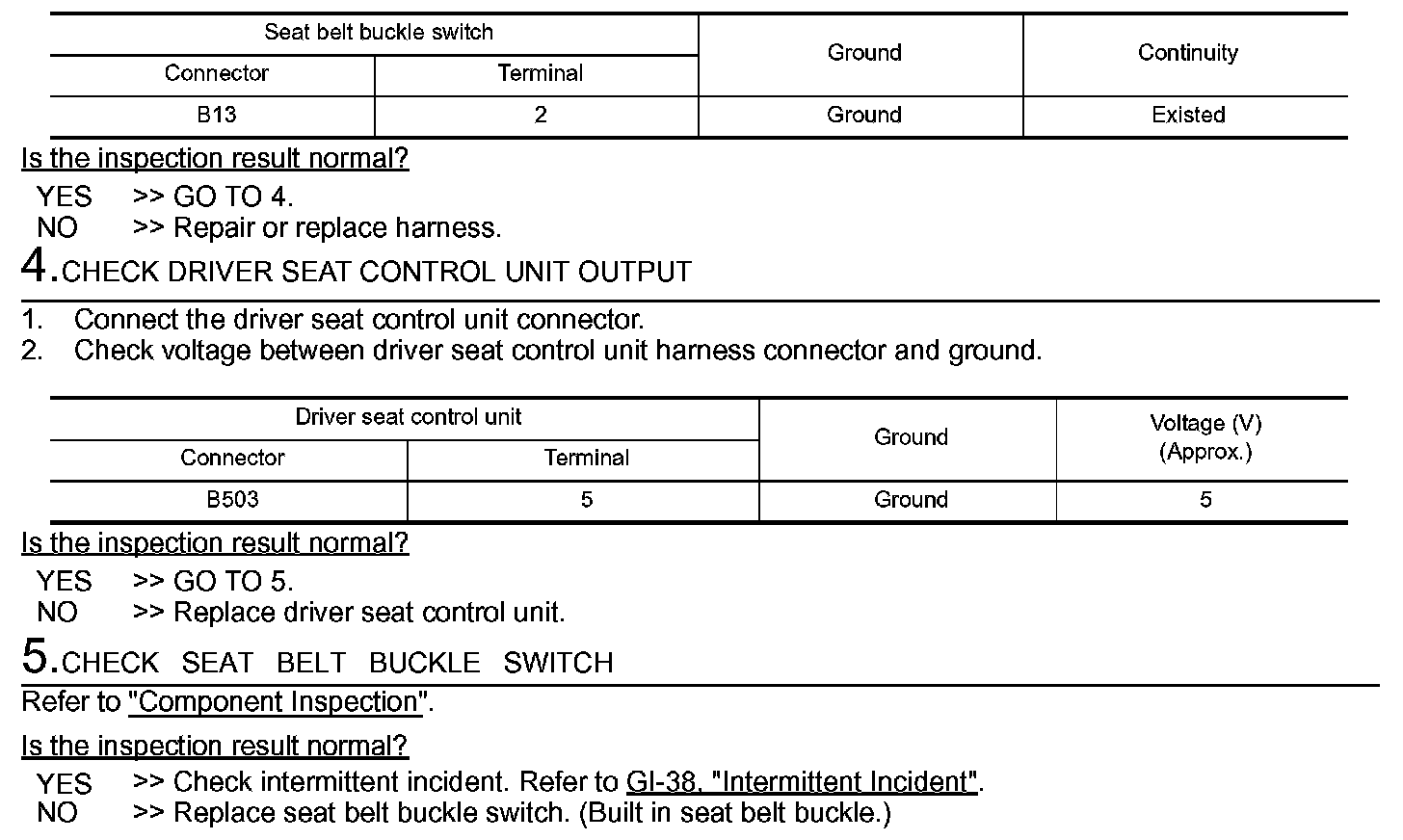

Step 3 (Continued)-5:






Component Inspection

Step 1:
