Sliding Sensor

SLIDING SENSOR

Description
- The sliding sensor is installed on the seat slide cushion frame.
- The pulse signal is transmitted to the driver seat control unit when sliding is operated.
- The driver seat control unit counts the pulse and calculates the sliding amount of the seat.

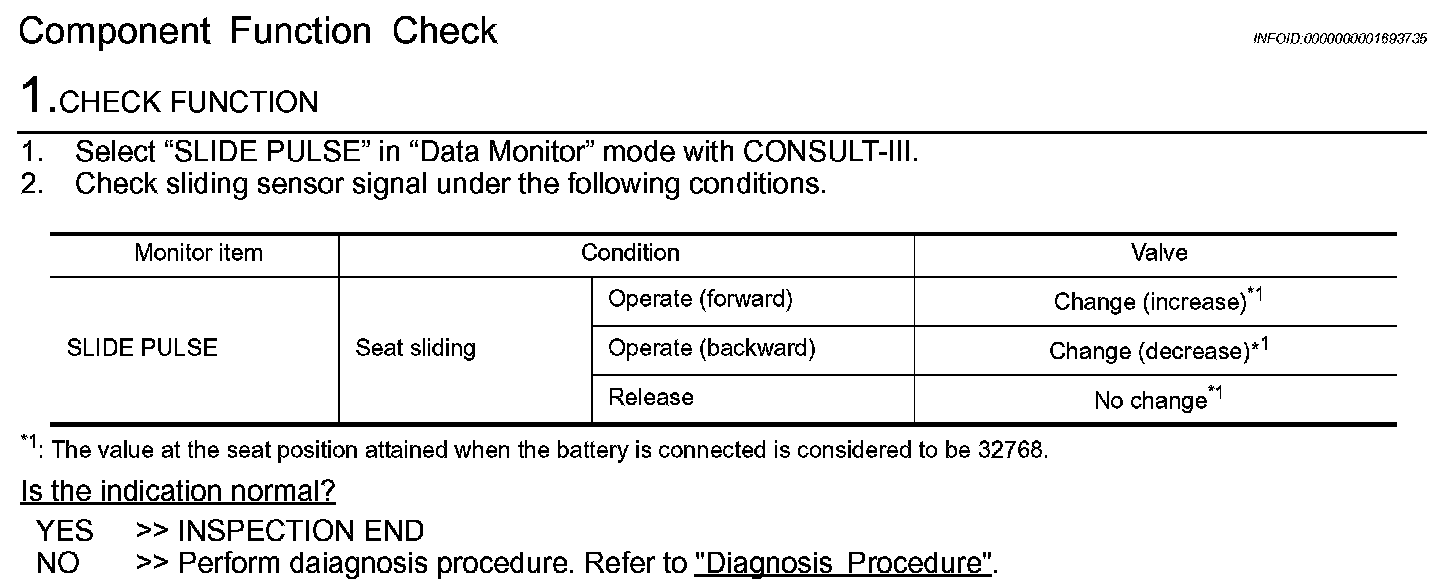

Component Function Check

Step 1:

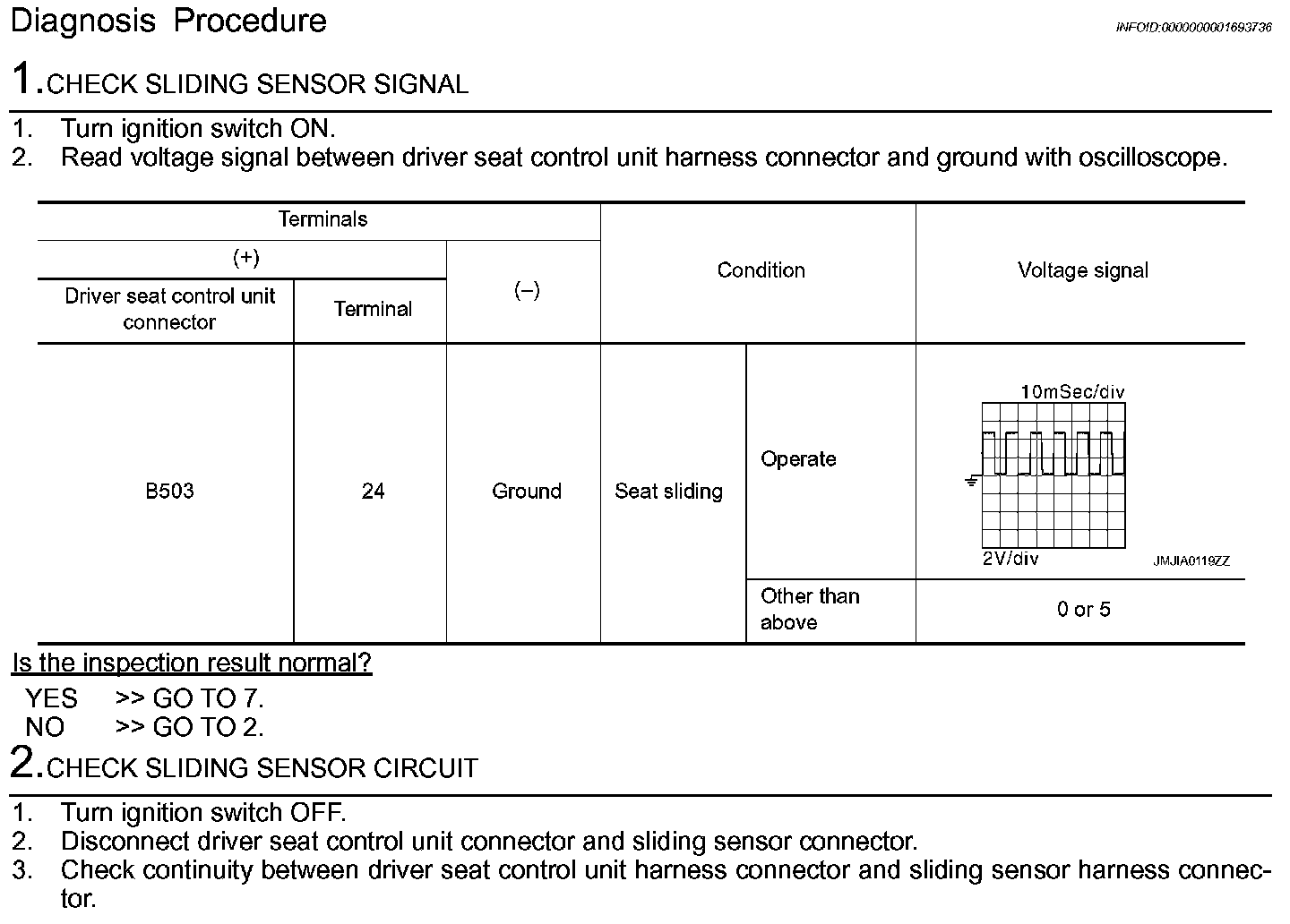

Diagnosis Procedure

Step 1-2:

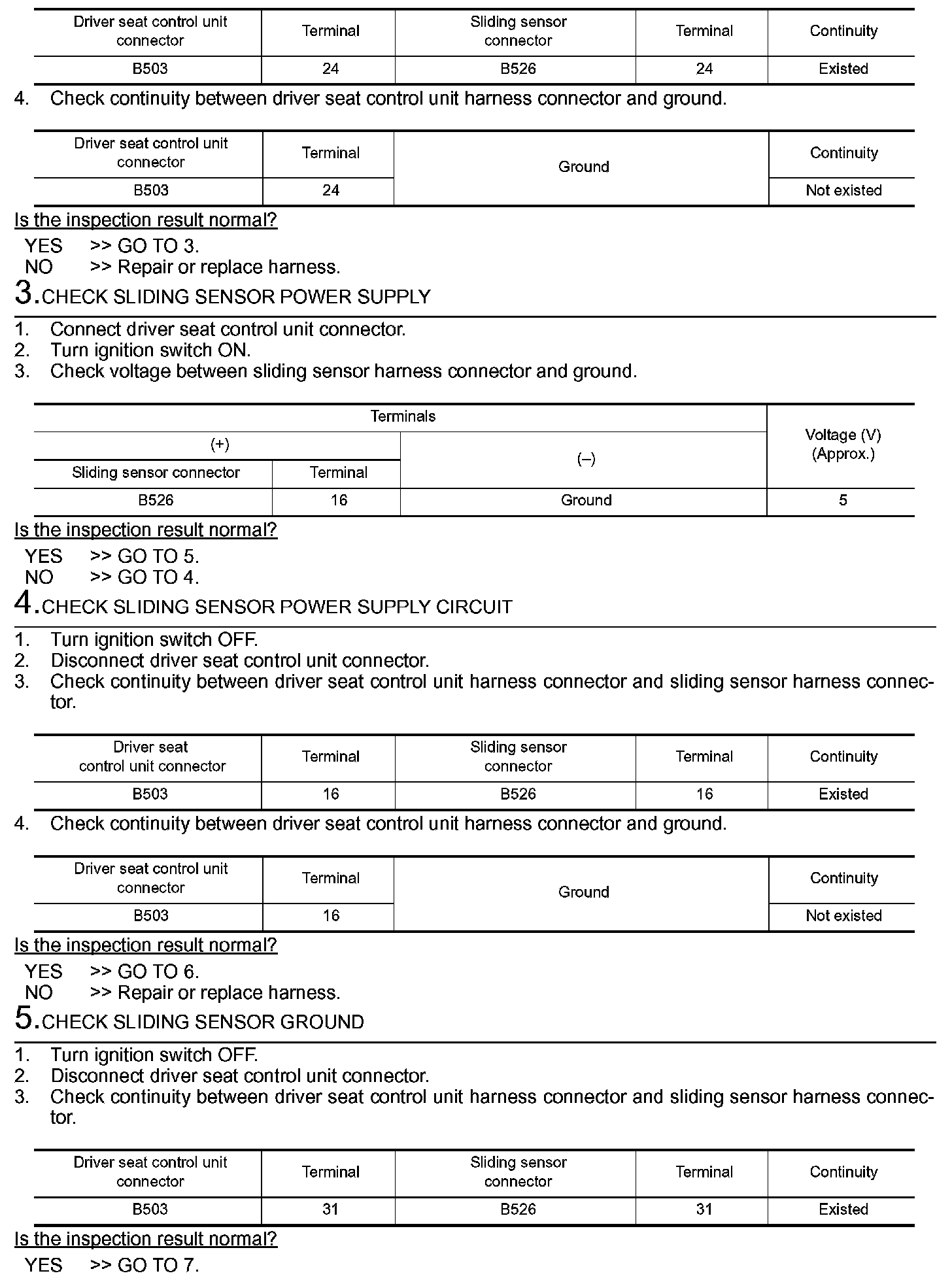

Step 2 (Continued)-5:

Step 5 (Continued)-7:
