Rear Seat

REAR SEAT

Exploded View

SE-160 Exploded View:

Removal and Installation

REMOVAL

CAUTION: When removing and installing, use shop cloths to protect parts from damage.

1. Remove the seat cushion.




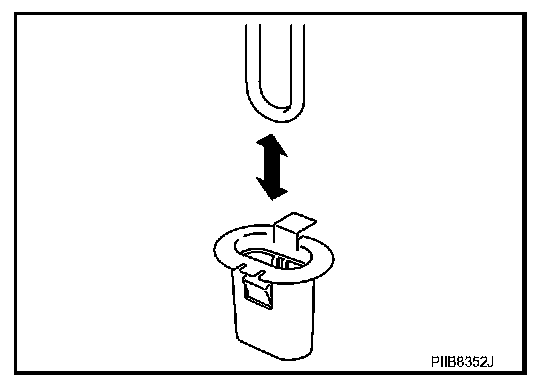

- Pull the seat cushion up, and then remove the seat cushion from the seat cushion hook.
- Remove the seat cushion from the vehicle.

2. Remove the seatback.
- Remove the seatback control cable.
- Remove the seatback mounting bolt.
- Remove the seatback frame the vehicle.

3. Remove the seatback side bracket.
- Remove the seatback side bracket mounting nuts.
- Remove the seatback side bracket from the vehicle.

4. Remove the seat striker.
- Remove the seat striker cover.
- Remove the seat striker mounting bolt.

INSTALLATION
Install in the reverse order of removal.

CAUTION: When removing and installing, use shop cloths to protect parts from damage.
