CONSULT-III Function (ICC)

CONSULT-III Function (ICC)

DESCRIPTION

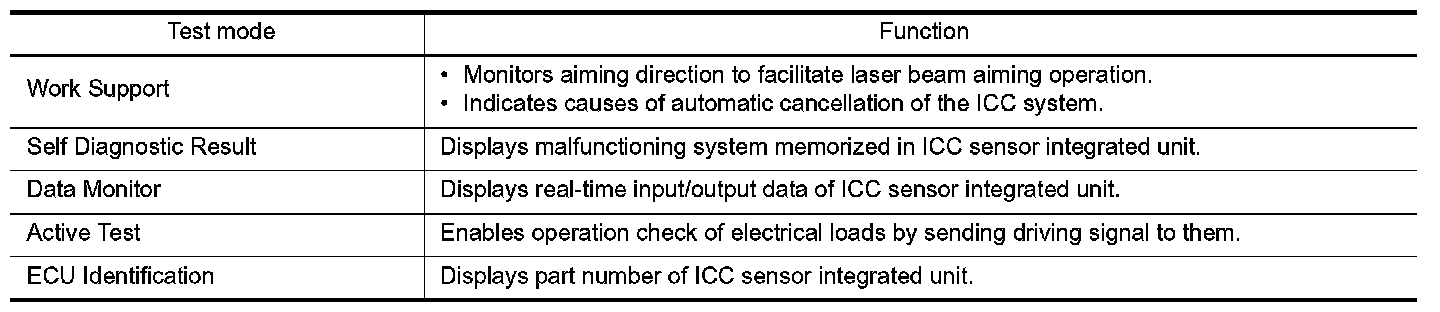

CONSULT-III can display each diagnostic item using the diagnostic test modes shown following.






WORK SUPPORT









- Last five cancel (system cancel) causes are displayed.
- "CAUSE OF AUTO-CANCEL" displays times of ignition switch ON/OFF up to 254 maximum. 254 is kept though the number exceeds 254. The number returns to 0 when detecting the same cancellation causes.

SELF DIAGNOSTIC RESULT
For details, refer to CCS-92, "DTC Index". Cruise Control

NOTE: "DTC RESULTS" and "TIME" are indicated on "Self Diagnostic Result". "TIME" is used as a reference data of diagnosis. It shows when malfunction is detected. "TIME" shows the following.

- 0: malfunction is detected at present (from malfunction detection to ignition switch OFF).
CAN communication ([U1000], [U1010])

- 1 ~ 39: Displays when it is normal at present and finds malfunction in the past. It increases like 0 ---> 1 ---> 2...38 ---> 39 after returning to the normal condition whenever IGN OFF ---> ON. If it is over 39, it is fixed to 39 until the self-diagnostic results are erased. It returns to 0 when malfunction is detected again in the process.
Other than CAN communication (other than [U1000], [U1010])

- 1 ~ 49: Displays when it is normal at present and finds malfunction in the past. It increases like 0 ---> 1 ---> 2...48 ---> 49 after returning to the normal condition whenever IGN OFF ---> ON. If it is over 49, it is fixed to 49 until the self-diagnostic results are erased. It returns to 0 when malfunction is detected again in the process.

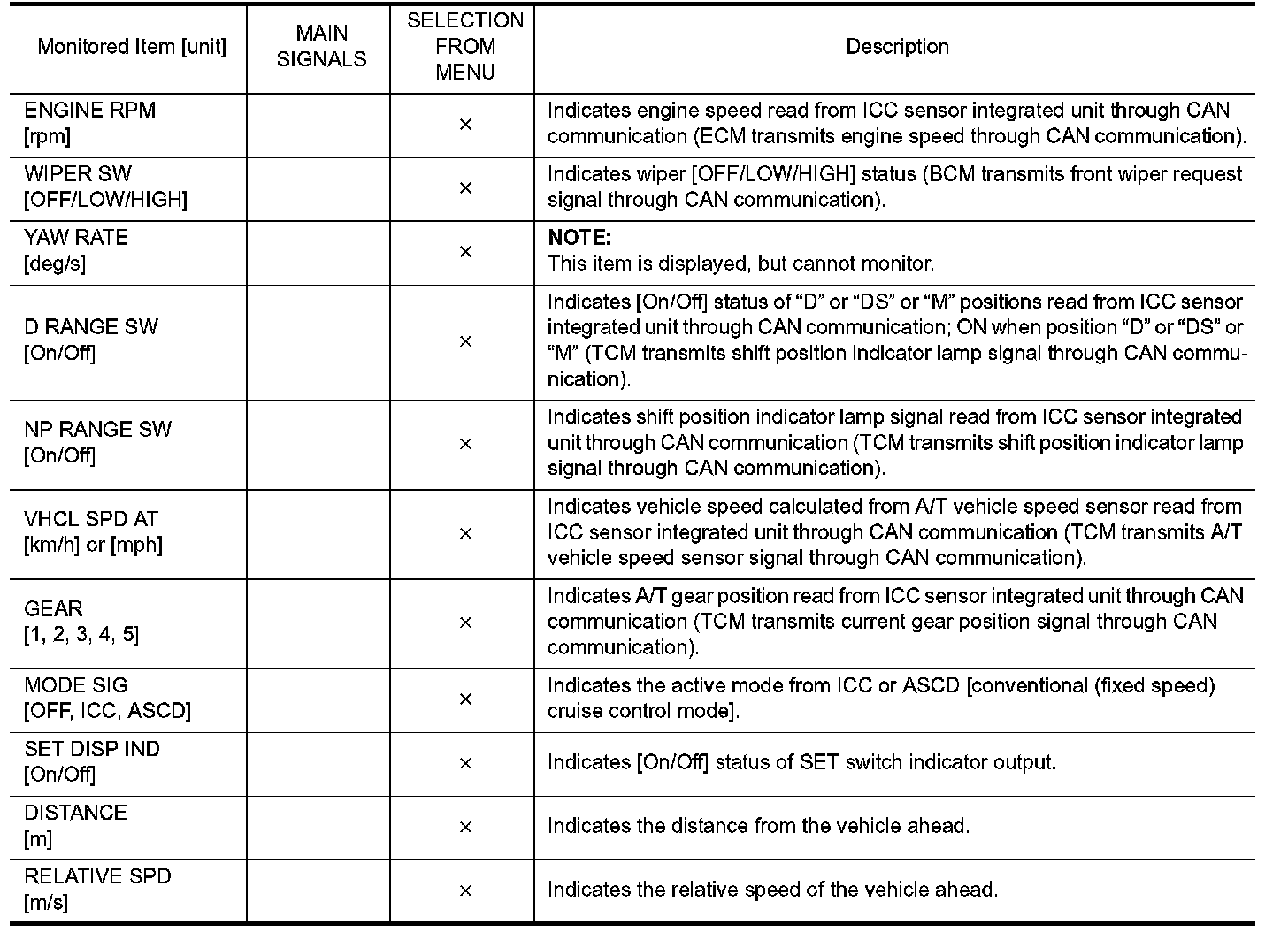

DATA MONITOR









ACTIVE TEST






ECU IDENTIFICATION
Displays the part number of the ICC sensor integrated unit.
