Cruise Control

ICC SENSOR INTEGRATED UNIT

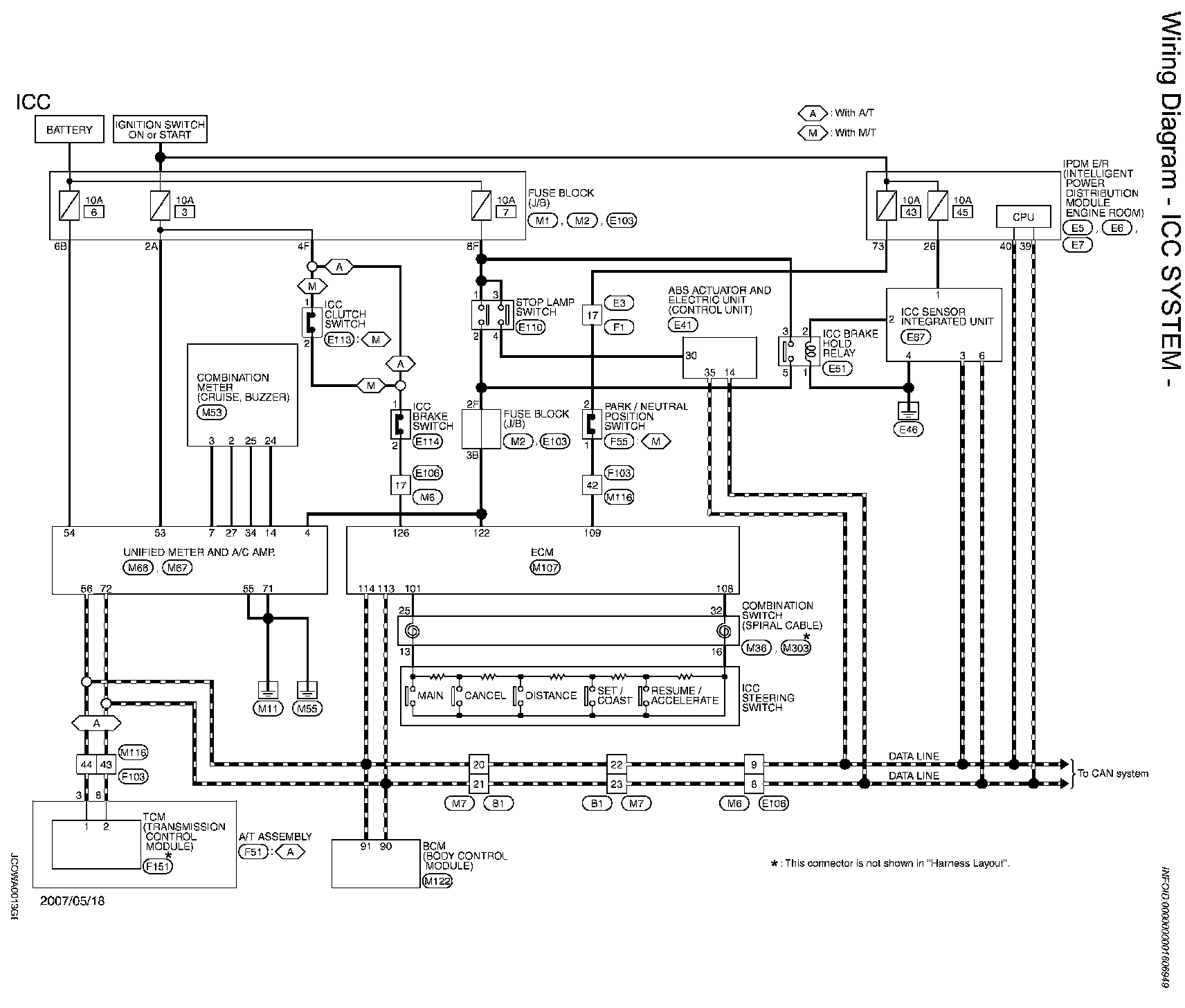

Wiring Diagram - ICC SYSTEM -

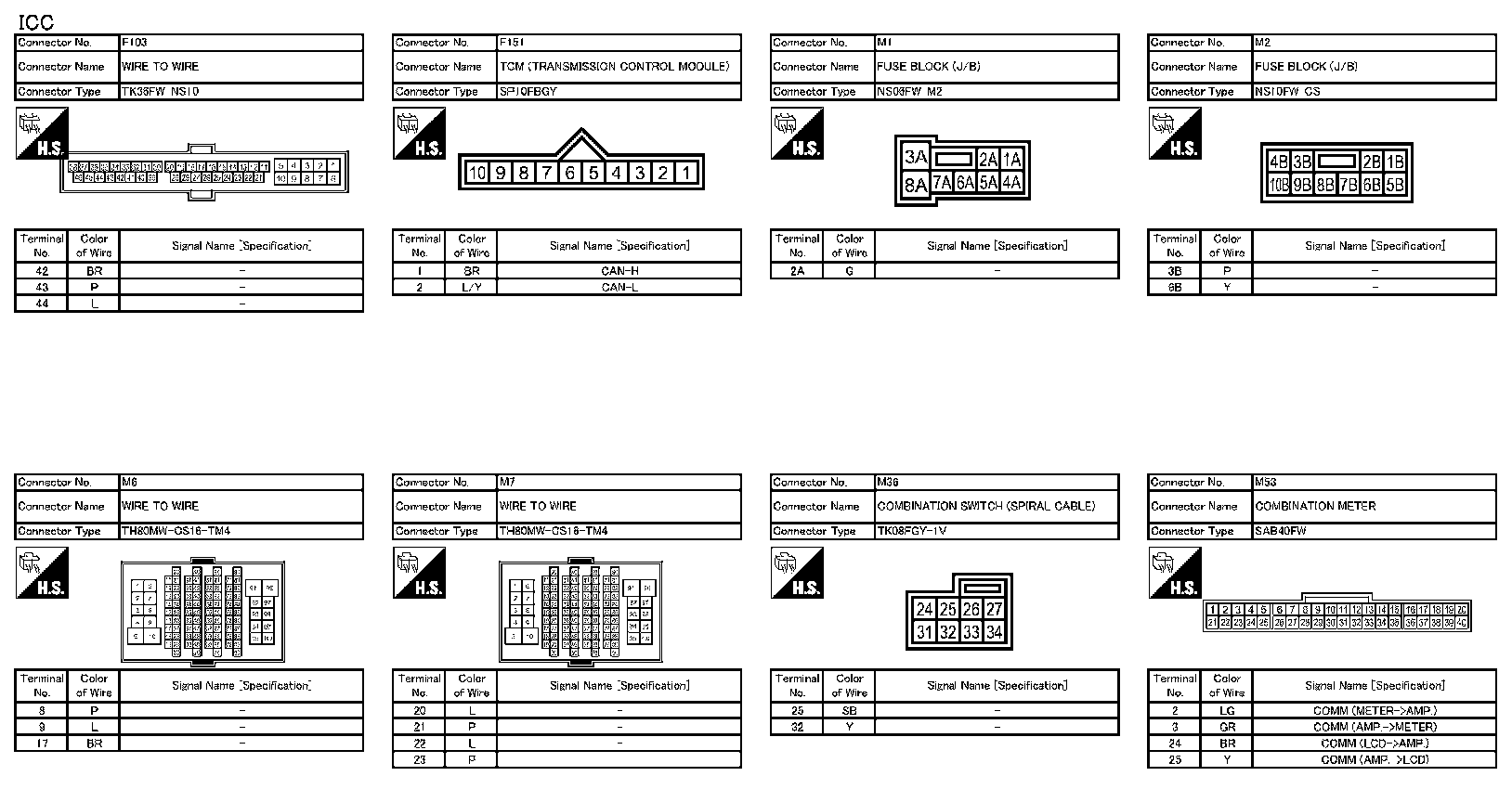

Wiring Diagram - ICC - Part 1:

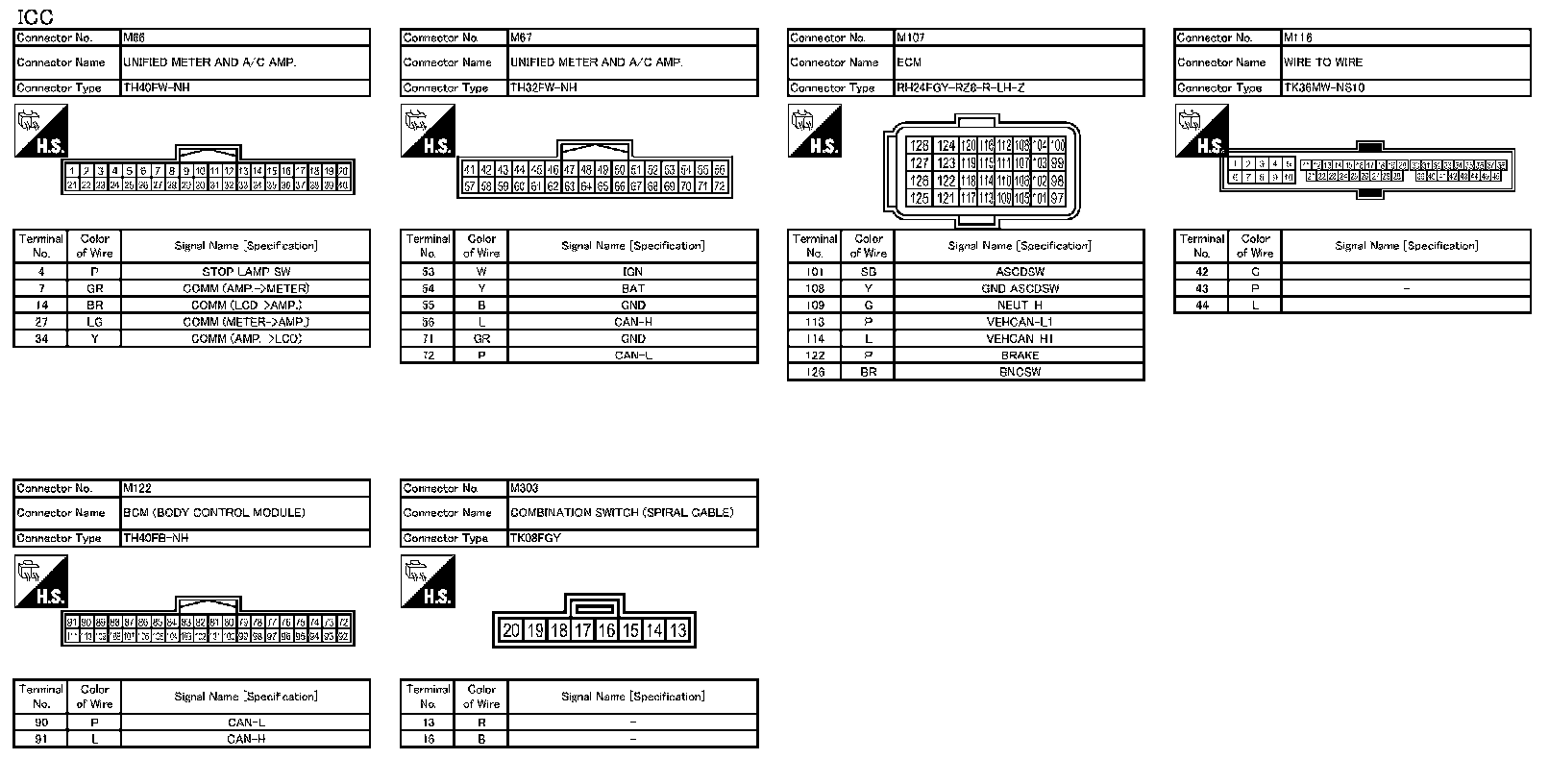

Wiring Diagram - ICC - Part 2:

Wiring Diagram - ICC - Part 3:

Wiring Diagram - ICC - Part 4:

Wiring Diagram - ICC - Part 5:
