Backup Lamp
BACK-UP LAMP

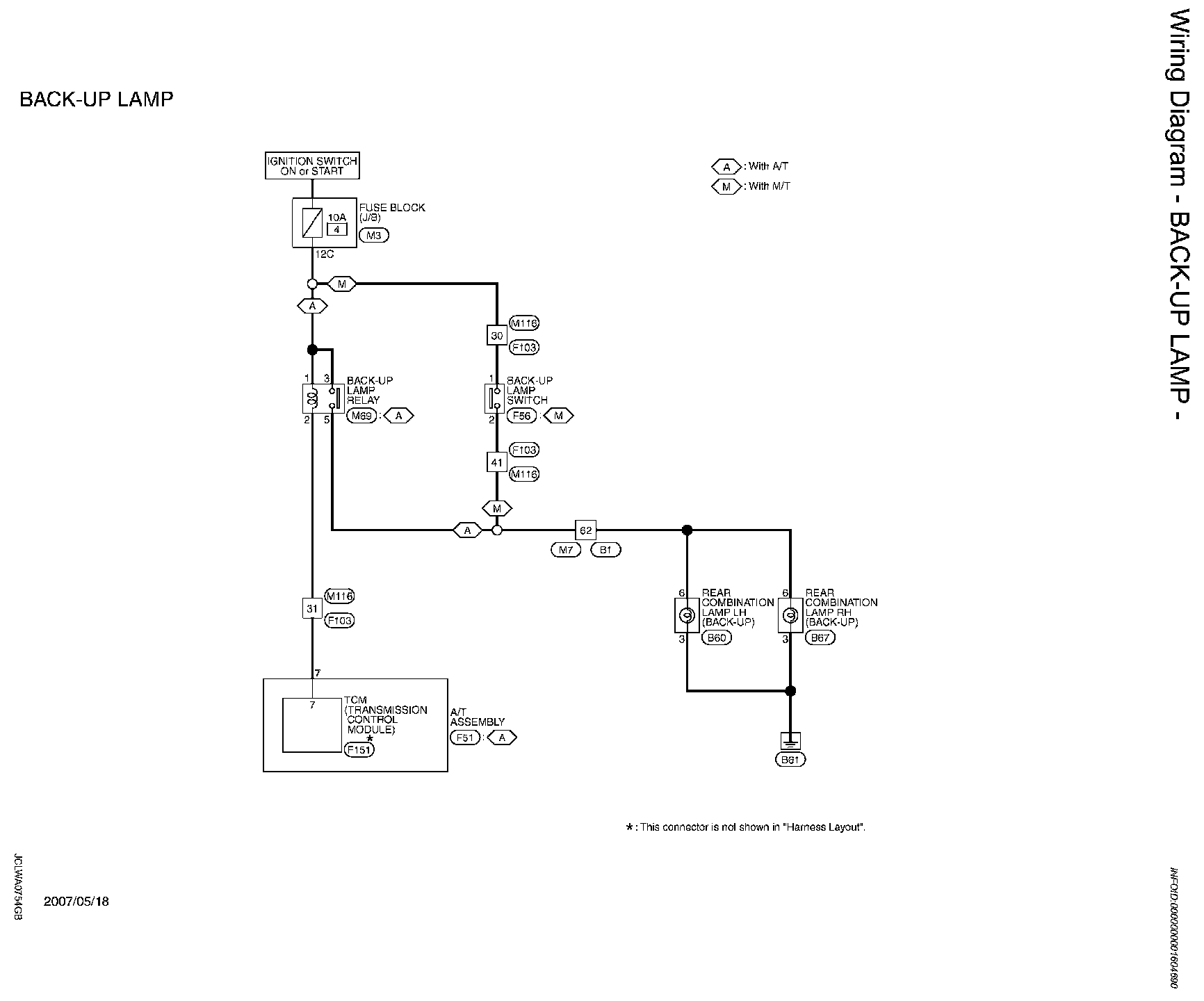

Wiring Diagram - BACK-UP LAMP -

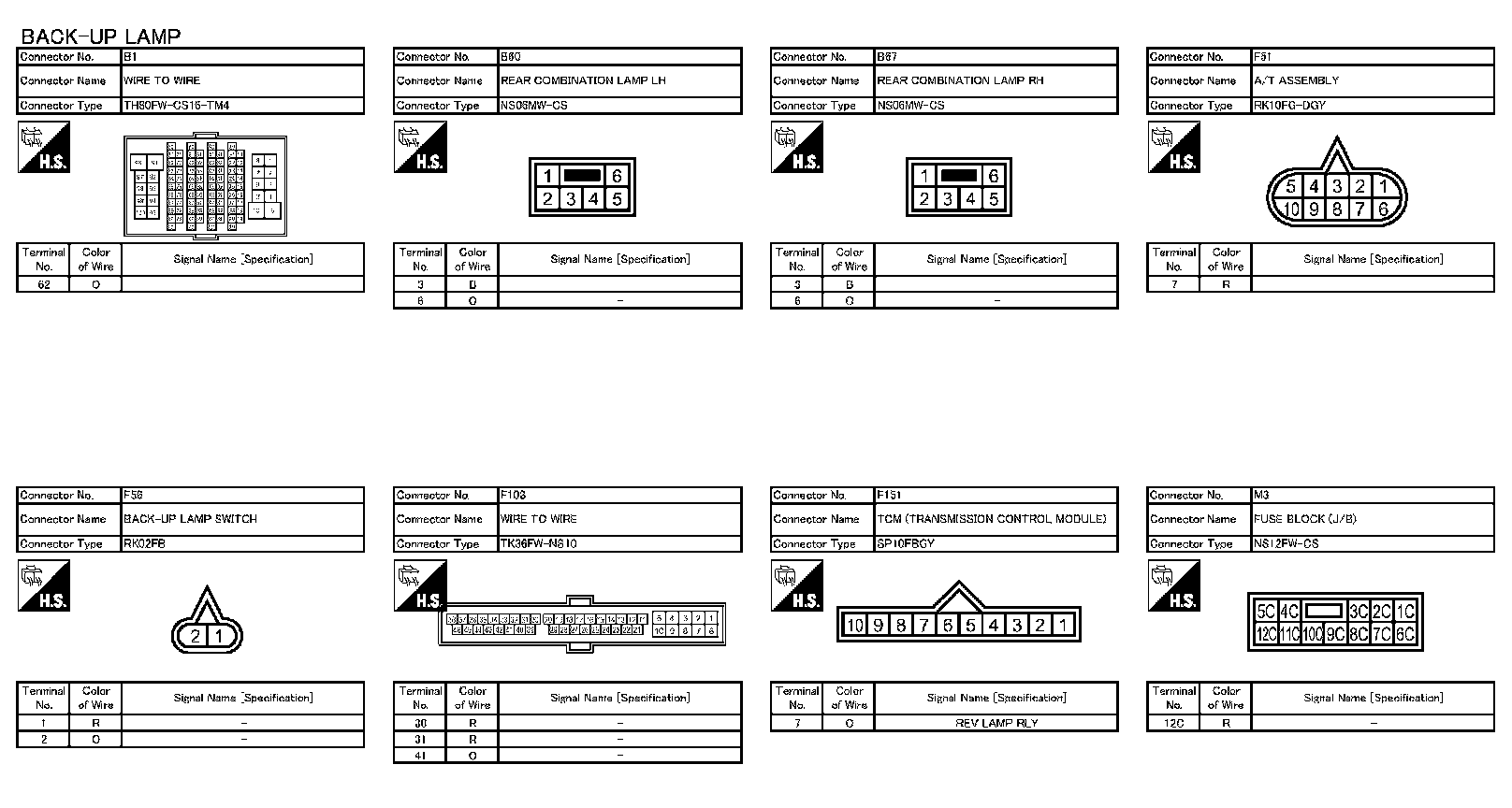

Wiring Diagram - Back Up Lamp - Part 1:

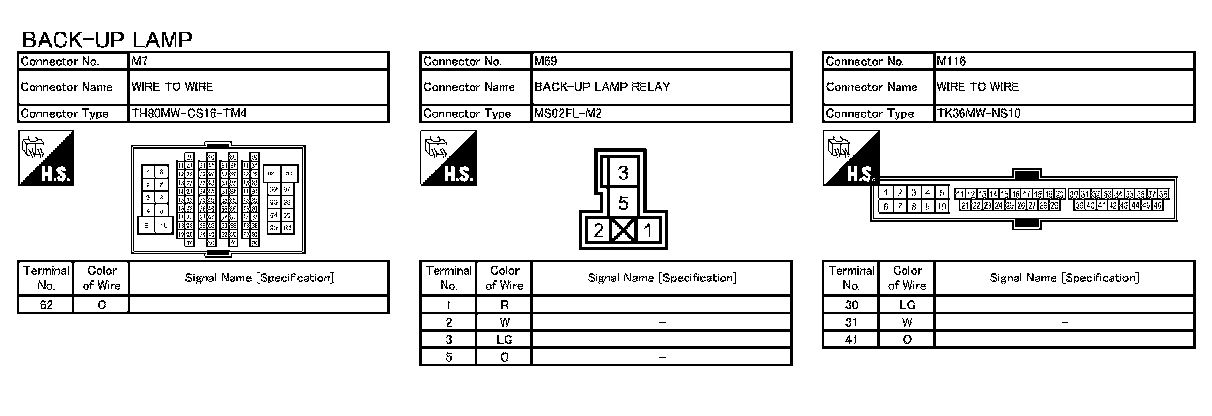

Wiring Diagram - Back Up Lamp - Part 2:
Wiring Diagram - Back Up Lamp - Part 3:
