Brake Lamp
STOP LAMP

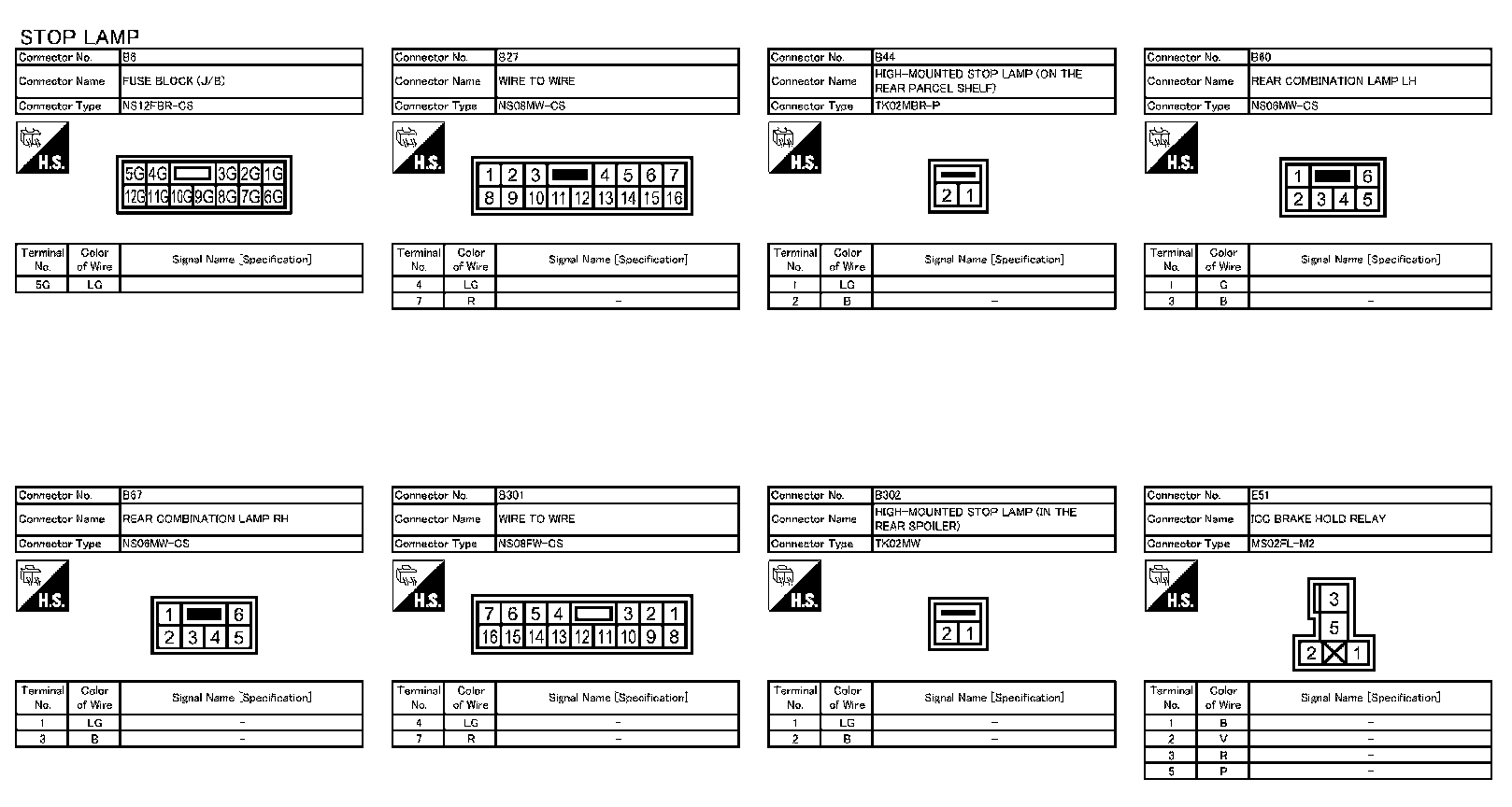

Wiring Diagram - STOP LAMP -
Wiring Diagram - Stop Lamp - Part 1:
Wiring Diagram - Stop Lamp - Part 2:
Wiring Diagram - Stop Lamp - Part 3:
