Daytime Running Lamp

DAYTIME RUNNING LIGHT SYSTEM

Wiring Diagram - DAYTIME LIGHT SYSTEM -

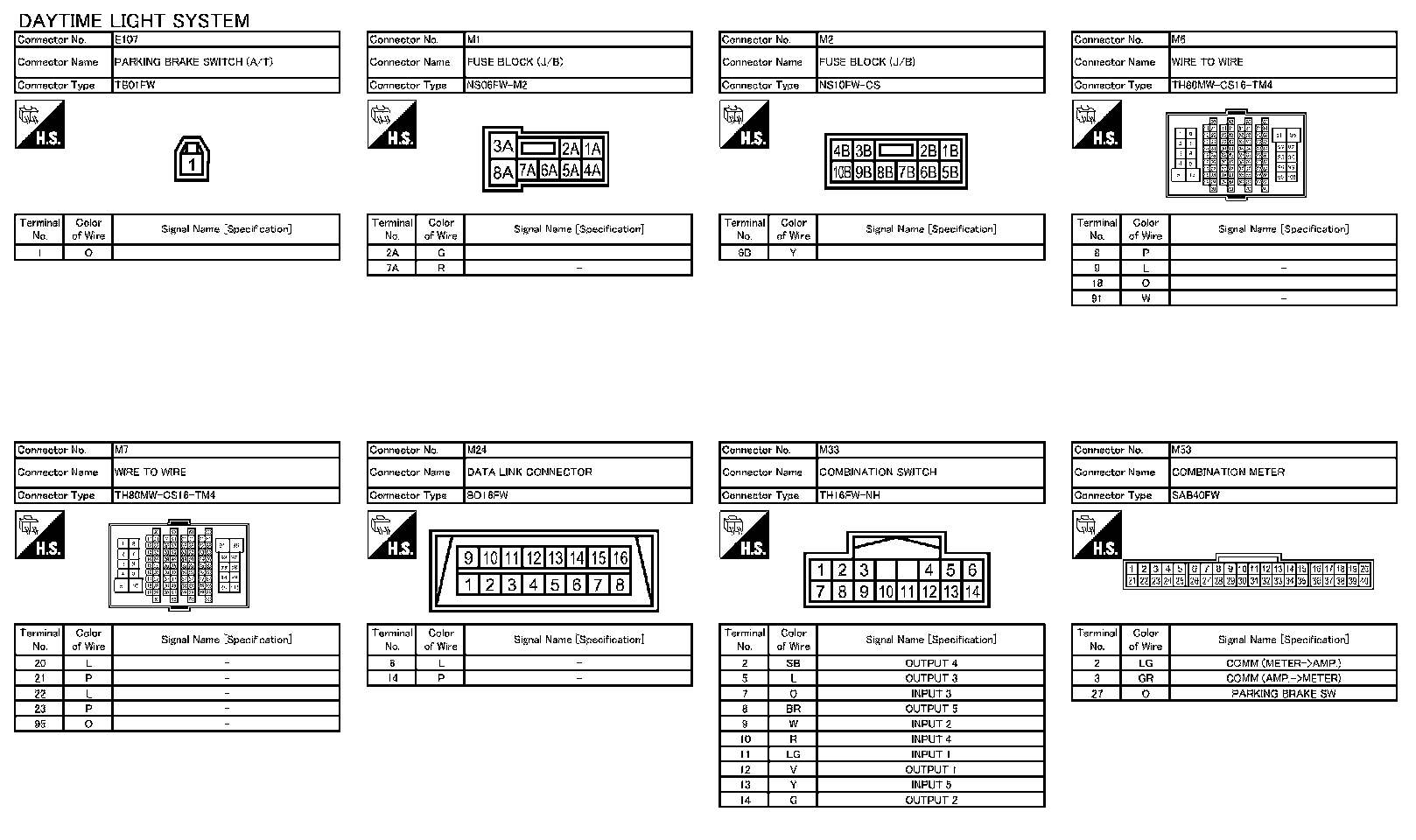

Wiring Diagram - Daytime Light System - Part 1:

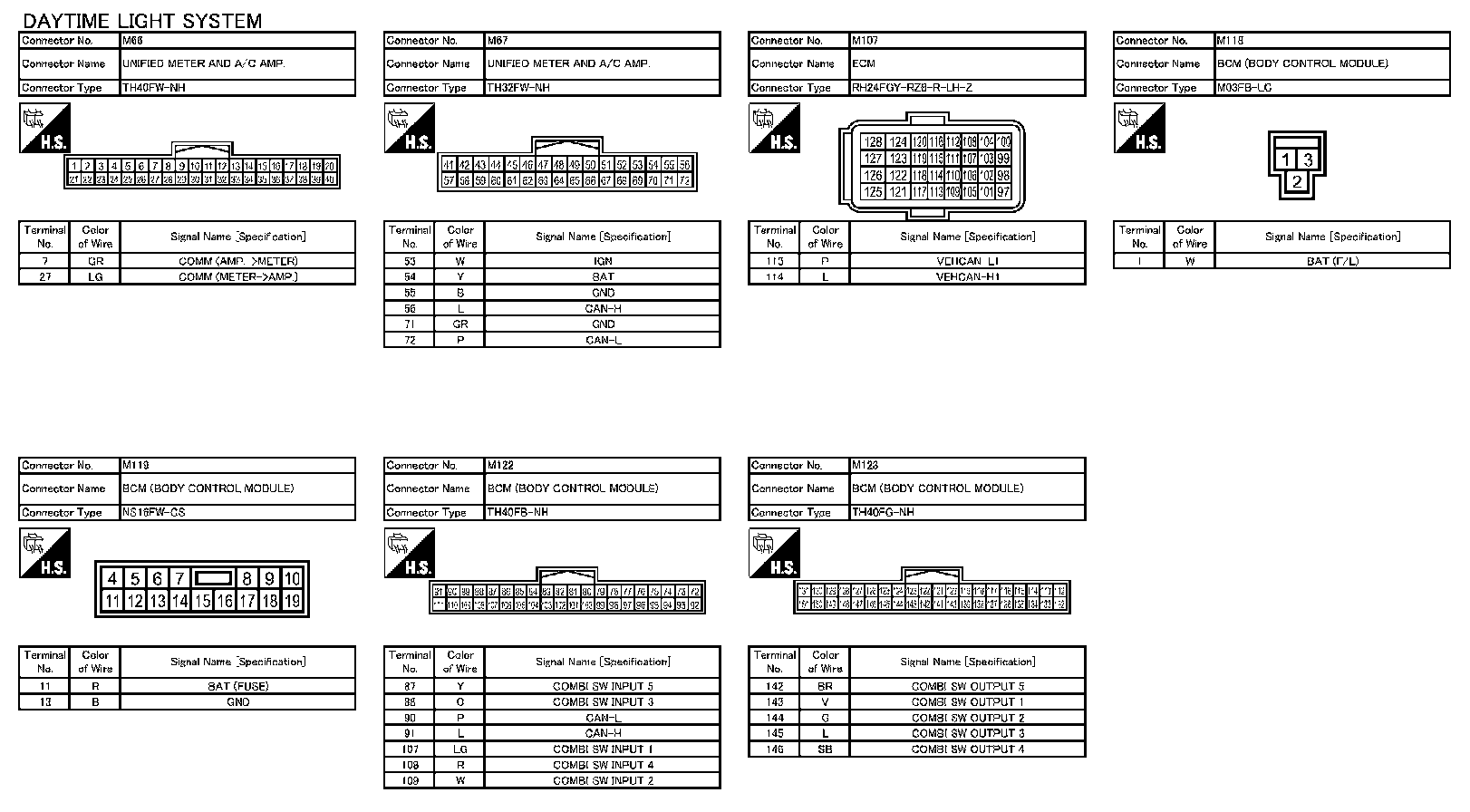

Wiring Diagram - Daytime Light System - Part 2:




Wiring Diagram - Daytime Light System - Part 3:




Wiring Diagram - Daytime Light System - Part 4:
